GUOWANG R130 AUTOMATIC DIE-CUTTER WITHOUT STRIPPING

Short Description:

Pneumatic lock system makes easier lock-up and release of cutting chase and cutting plate.

Pneumatic lifting cutting plate for easy slide in and out.

Centerline system on die-cutting chase with transversal micro adjustment ensures accurate registration that result in quick job changeover.

Accurate positioning of Cutting chase controlled by precision optical sensors with automatic check-lock device.

Cutting chase turnover device.

Siemens main motor controlled by Schneider inverter.


Product Detail

Other product information

Product Video

Product Overview

High quality feeder head

Centre line system

Pneumatic lock die chase

Non-stop feeding and delivery

6500Sheets/H

Max.450T pressure

Dual touch screen for easy operation

HT500-7 ductile casting iron

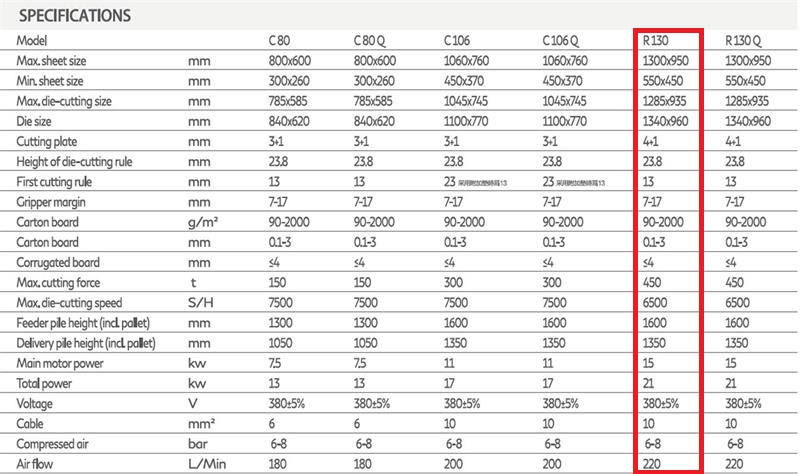

Technical Parameters

R130

Technical Specification

C80Q20

FEEDER HEAD High quality feeder, 4 sucker and 4 forwarder

C80Q21

FEEDER Pre-pile device, Non-stop feeding Max. Pile height 1600mm

C80Q22

AIR PUMP German BECKER

C80Q23

FEEDING TABLE Nitta convey belt Stainless steel slope convey table

C80Q27

STRIPPING SECTION Center line system Pneumatic upper chase lifting Separate cam to control position for upper, middle, lower chase Higher product quality by automatic stripping

C80Q25

DIE-CUTTING SECTION Servo motor from Japan FUJI Pressure can be adjusted on 15” touch screen, adjusting tolerance up to 0.01mm Max.300T pressure

C80Q28

LED TOUCH SCREEN MONITOR ●15” high definition LED touch screen , the operator can observe all the settings in different position, reduce the time for job changing and improve working efficiency.

C80Q30

LUBRICATION SYSTEM Automatic lubrication system controlled by computer Easy maintanance

C80Q26

DIE-CUTTING SECTION Centre line system Pneumatic lock for upper and lower die chase Switch to detect plates are locked in right position

C80Q31

DELIVERY Max. Pile height 1350mm Non-stop delivery

Feeding unit

High quality feeder made in China with 4 suckers for lifting paper and 4 suckers for forwarding paper ensure stable and fast feeding paper. The height and angle of suckers are easily adjustable to keep sheets absolutely straight.
Mechanical double-sheet detector, sheet-retarding device, adjustable air blower ensure sheets transfer to the belt table steadily and precisely.
Vacuum pump is from German Becker.
Lateral pile can be adjusted by motor for accurate sheet feeding.
Pre-piling device makes non-stop feeding with high pile (Max. pile height is up to 1600mm).
Perfect piles can be formed on pallets which run on rails for pre-piling. This makes a significant contribution to smooth production and let operator move the prepared pile to feeder accurately and conveniently.
Single position engagement pneumatic operated mechanical clutch insures the first sheet after every re-start of machine is always fed to front lays for easy, time-saving and material-saving make-ready.
The side lays can be switched directly between pull and push mode on both sides of the machine simply by turning a bolt without having to add or remove parts. This provides the flexibility for processing a wide range of material: irrespective of whether the register marks are to the left or right of the sheet.
Side and front lays are with precision optical sensors, which can detect dark color and plastic sheet. The sensitivity is adjustable.
Optical sensors with automatic stop system on feeding table enable you to optimize system monitoring- for comprehensive quality control over the entire sheet width and paper jam.
Operation panel for feeding part is easier to control the feeding process with LED display.
Separate drive controls for main pile and auxiliary pile
PLC and electronic cam for timing control
Anti-obstacle device can avoid the machine damage.
Japan Nitta convey belt for feeder and the speed is adjustable

Die-cutting Unit

Pneumatic lock system makes easier lock-up and release of cutting chase and cutting plate.
Pneumatic lifting cutting plate for easy slide in and out.
Centerline system on die-cutting chase with transversal micro adjustment ensures accurate registration that result in quick job changeover.
Accurate positioning of Cutting chase controlled by precision optical sensors with automatic check-lock device
Cutting chase turnover device
Siemens main motor controlled by Schneider inverter.
Micro-adjustment of cutting force (pressure accuracy can be up to 0.01mm, Max. die-cutting pressure can be up to 400 tons) by worm gear driven by servo motor and controlled easily by 15 inch touch screen.
Crankshaft is made of 40Cr steel.
HT300 ductile iron for machine frames and platens
7 sets of gripper bars with grippers made of lightweight and durable aluminum alloy with ultra hard coat and anodized finish ensure accurate and consistent paper registration.
High quality gripper bar from Japan with long life
Uniquely designed gripper bar need no spacer for compensation to insure accurate paper registration
Cutting plates of different thickness(1pc of 1mm, 1 pc of 4mm, 1 pc of 5mm) for easy job-changing
High quality Renold chain from England with pre-extended treatment ensures stability and accuracy in long run.
High pressure index drive system for gripper bar positioning control
Overload protection device with torque limiter creates the highest level of security for operator and machine.
Automatic lubrication and cooling system for main drive and automatic lubrication for main chain.

Others

Operation platform with heating controller; 1 set of tools box and operation manual.


  • Previous:
  • Next:

  • Configurations

    ——————————————————————————————————————————————————————————————————————————————–

    C80Q32 C80Q33 C80Q40

    TAIWAN INDEX BOX     U.S.A Synchronical Belt   SIEMENS MOTOR

    C80Q34C80Q35 C80Q36

    U.K. Renold Chain      JAPANESE GRIPPER    Becker Pump

    ——————————————————————————————————————————————————————————————————————————————–

    C80Q37

    DIEBOARD& STRIPPING BOARD STANDARD

    C80Q38

    FlOOR LAYOUT

    C80Q39

    FLOOR PLAN

    ——————————————————————————————————————————————————————————————————————————————–

    Delivery Unit
    Adjustable braking brush controlled by AC motor help to unload paper from gripper and piling up paper in higher speed and perfect alignment .
    Delivery pile height is up to 1050mm.
    Photoelectric devices preventing over-ascending and over-descending of delivery paper pile
    Pile can be counted by optical sensor (standard).
    The whole machine can be adjusted by 10.4 inch touch monitor in rear side
    Auxiliary delivery rack is configured for non-stop delivery.

    Electric Parts
    Electronic detectors, micro switched and photoelectric cells controlled by PLC on entire machine
    Omron Electronic cam switch and encoder
    All the major operation can be done by 15 and 10.4 inch touch monitor.
    PILZ safety relay as standard ensure highest safety standard.
    Internal inter-lock switch fulfill CE requirement.
    Applies electric parts including Moeller, Omron, Schneider relay, AC contactor and air breaker to assure stability in long run.
    Automatic fault display and self-diagnose.

    Installation Data

    ——————————————————————————————————————————————————————————————————————————————–

    C80Q10

    Main material

    ——————————————————————————————————————————————————————————————————————————————–

    C80Q11 C80Q12 C80Q13

    Paper                      Cardboard                 Heavy solid board

    C80Q14 C80Q15 C80Q16

    Semi-rigid plastics           Corrugated board            Paper file

    ——————————————————————————————————————————————————————————————————————————————–

    Application Samples

    C80Q17

    C80Q18

    C80Q19
