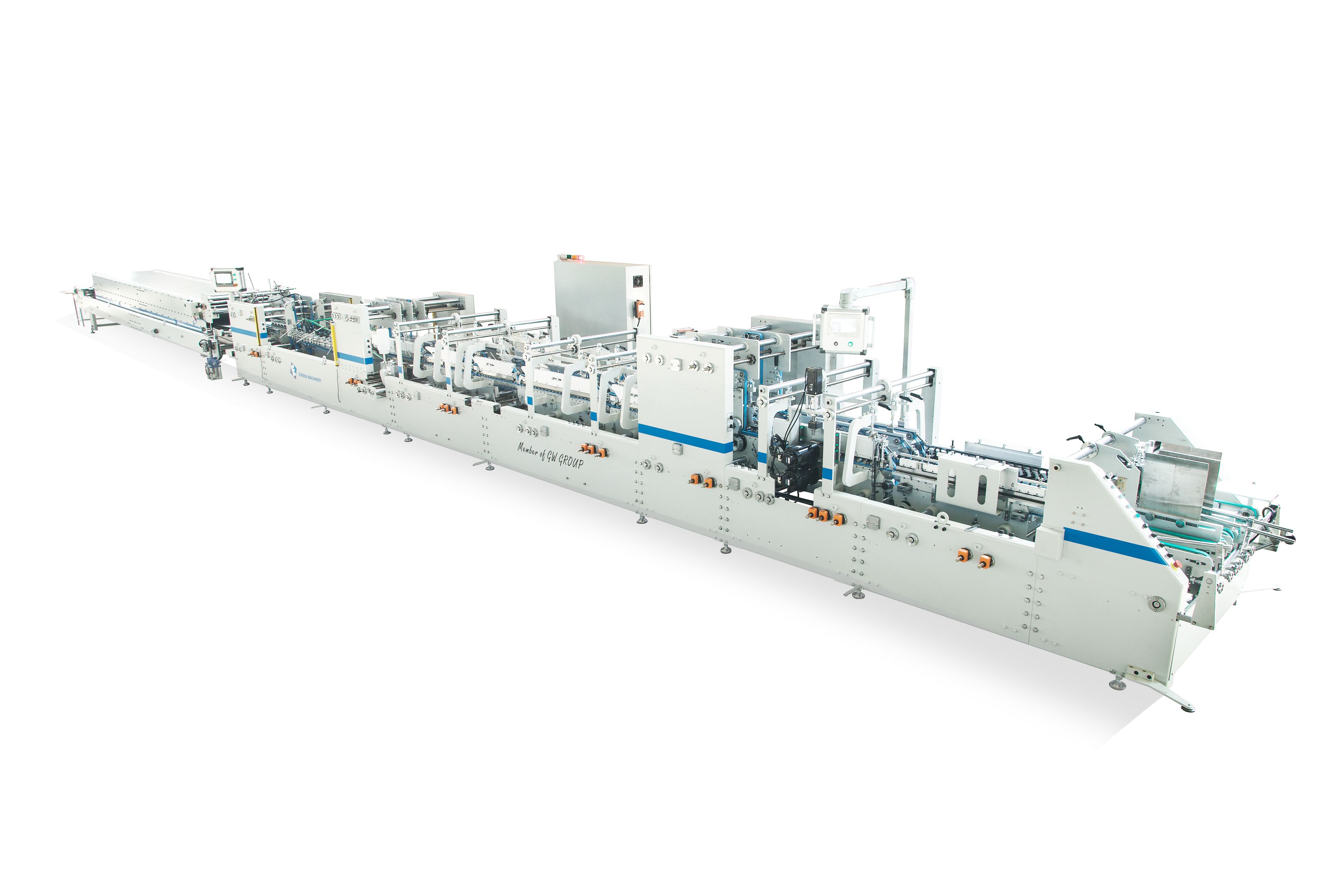

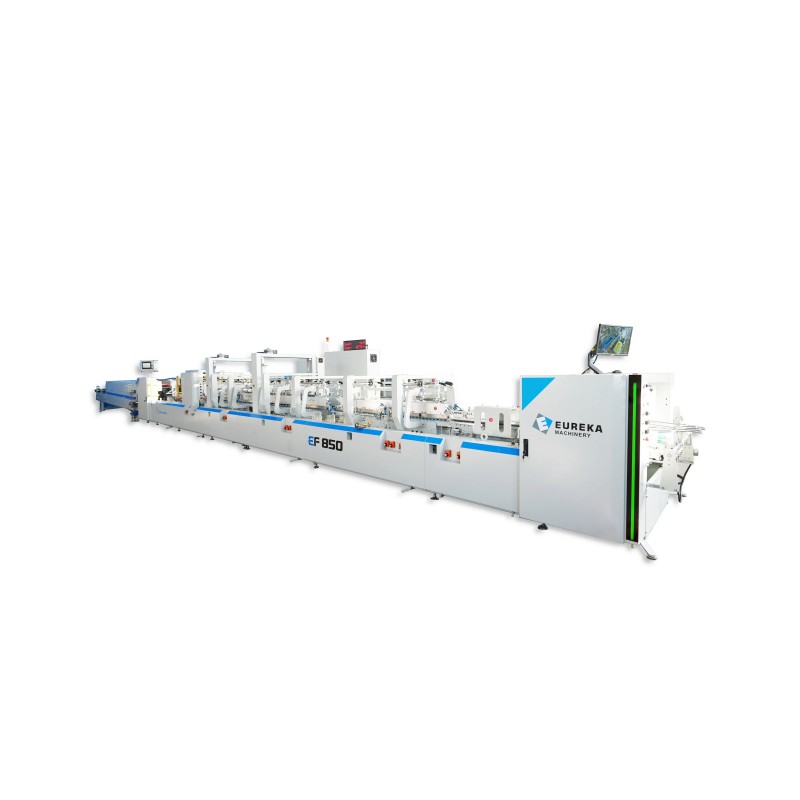

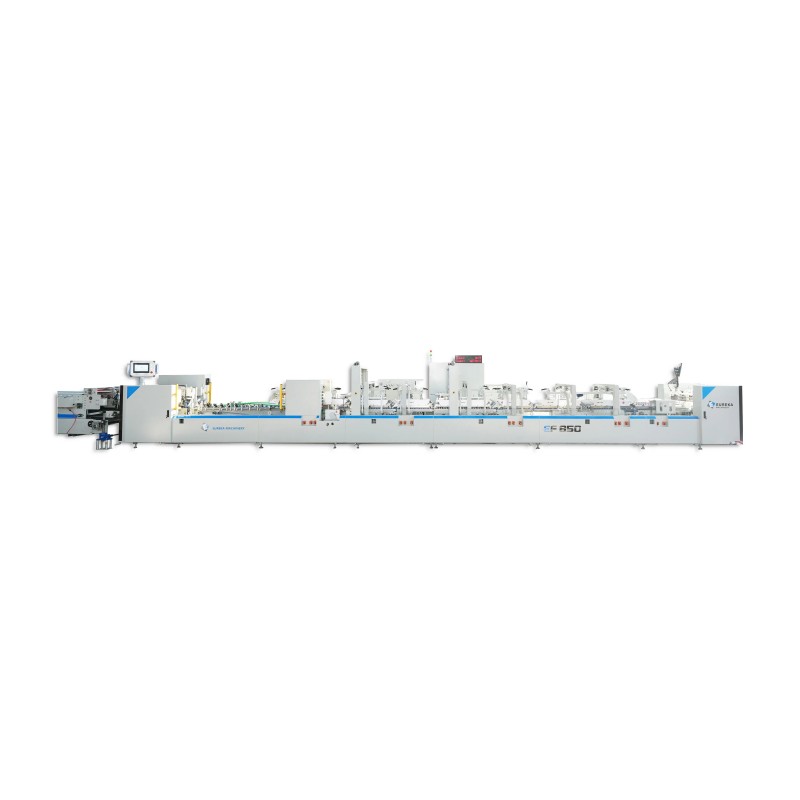

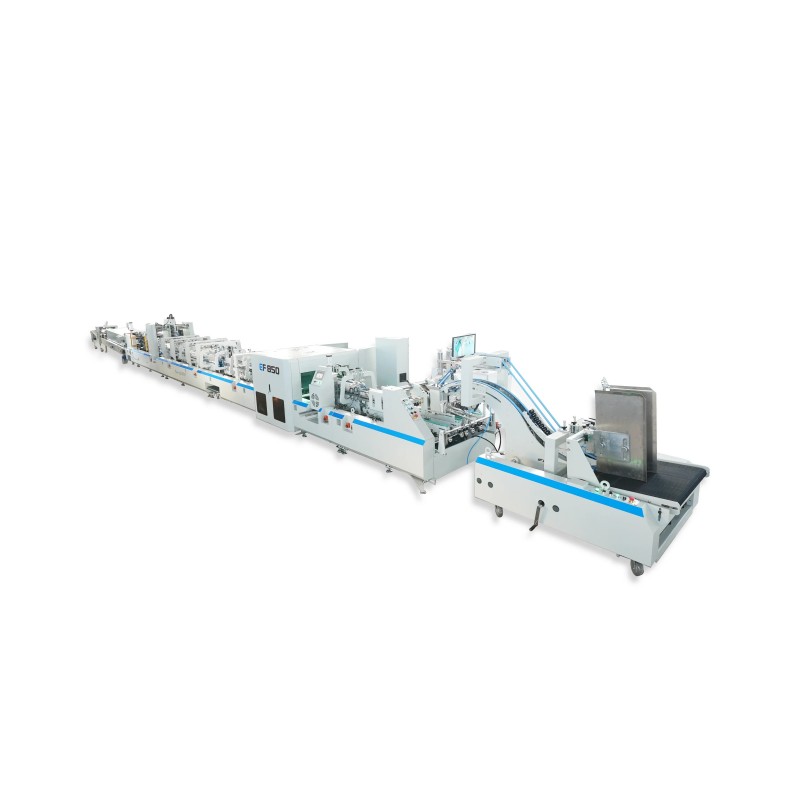

EF-650/850/1100 Automatic Folder Gluer

Short Description:

Linear speed 450m

Memory function for job saving

Automatic plate adjustment by motor

20mm frame for both sides for high speed stable running


Product Detail

Product Video

Product Picture

AFGFCC6
AFGFCC7

Specification



EF-650

EF-850

EF-1100

Maximum Paperboard Size

650X700mm

850X900mm

1100X900mm

Minimum Paperboard Size

100X50mm

100X50mm

100X50mm

Applicable Paperboard

Paperboard 250g-800g; Corrugated paper F, E

Maximum Belt Speed

450m/min

450m/min

450m/min

Machine Length

16800mm

16800mm

16800mm

Machine Width

1350mm

1500mm

1800mm

Machine Heigth

1450mm

1450mm

1450mm

Total Power

18.5KW

18.5KW

18.5KW

Maximum Displacement

0.7m³/min

0.7m³/min

0.7m³/min

Total Weight

5500kg

6000kg

6500kg

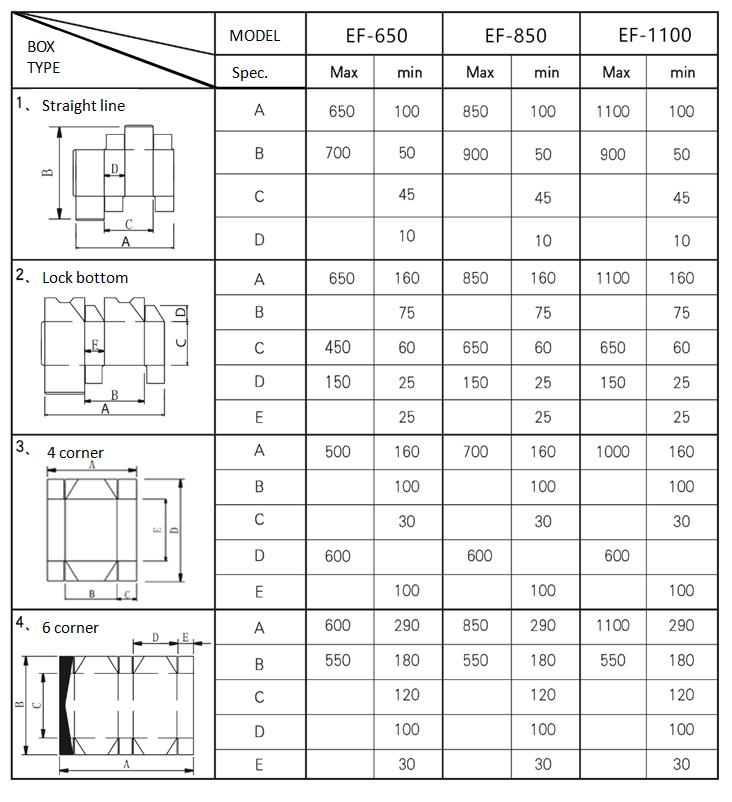

AFGFCC8

Configuration List

  Configuration

Units

Standard

Optional

1

Feeder section





2

Side register section





3

Pre-folding section





4

Crash lock bottom section





5

Lower gluing unit left side





6

Lower gluing unit right side





7

Grinder device with dust extractor





8

HHS 3 Guns cold glue system





9

Folding and closing section





10

Motorized adjustment







11

Pneumatic Press section







12

4 & 6-corner device







13

Servo Driven Trombone unit





14

Lock bottom squaring device at conveyor





15

Pneumatic square device at conveyor







16

Mini-box device







17

LED display production







18

Vacuum feeder





19

Ejection channel on trombone







20

Main touch screen with graphic design interface





21

Extra feeder and carrier belt







22

Remote Control and Diagnose





23

Plasma system with 3 guns





24 Memory function to save repetitive jobs



25 Non-hook crash bottom device



26 Light barrier and safety device

27 90 degree turning device

28 Adhesive tape attach

29 Pressing bearing roller from Japan NSK



30 KQ 3 glue system with high pressure pump

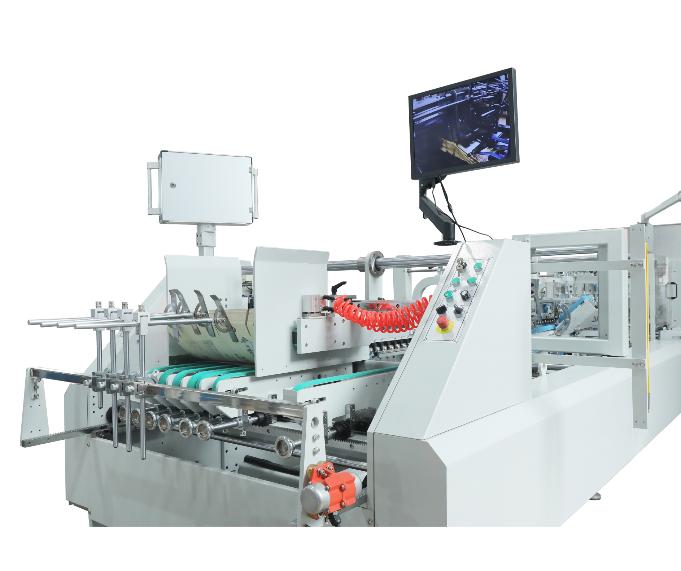

1) Feeder Section

Feeder section has an independent motor drive system and keep synchronization with main machine.

7 pcs of 30mm feeding belt and 10mm metal plate to move laterally to set width.

The embossed roller guides the feeding belt. Two side apron match the products design.

Feeder section is equipped with three out-feeding blade to adjust according to the product sample.

Vibration device keep paper feeding quickly, easily, continuously and automatically.

Feeder section with 400mm height and brush roller anti-dust device ensure smooth paper feeding.

The operator can operate feeding switch in any area of machine.

Feeder belt can be equipped with sucking function(Option).

Independent monitor can inspect the performance at the tail of the machine.

AFGFCC10

2)Side register unit

The paper from feeding unit can be rectified at side register unit to ensure accurate feeding.

The driven pressure can be adjusted up and down to fit with different thickness of board.

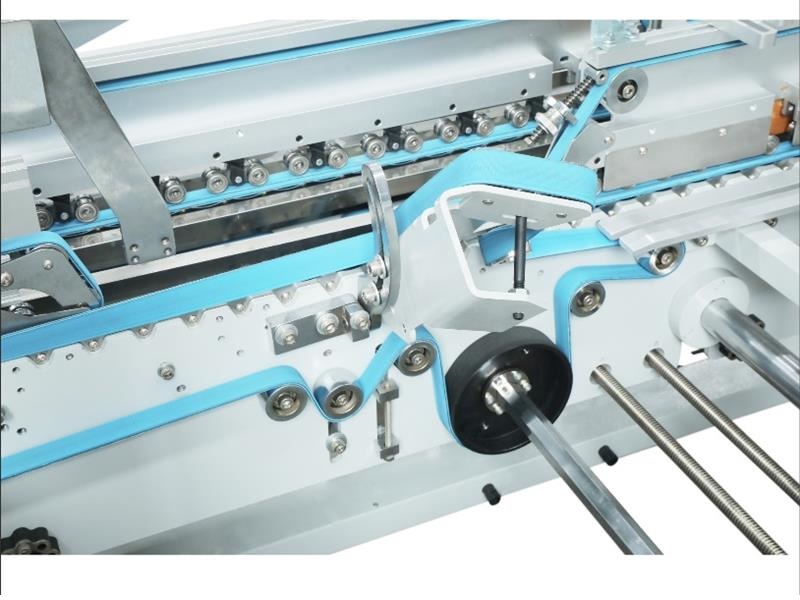

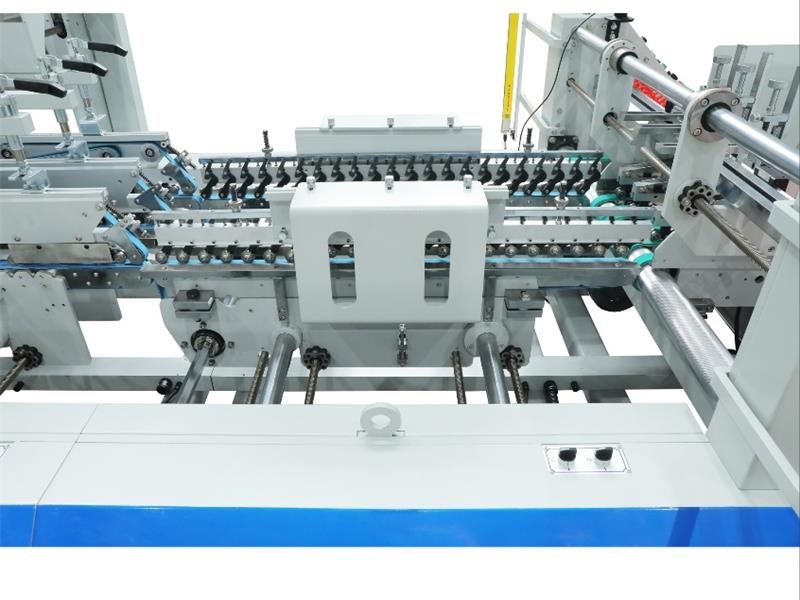

3)Pre-fold section

The special design can pre-fold the first folding line at 180 degrees and the third line at 165 degrees that can makes box easier to open. 4 corner folding system with intelligent servo-motor technology. It allows accurate folding of all back flaps by means of hooks installed in two independent shafts controlled electronically.

AFGFCC11
AFGFCC12

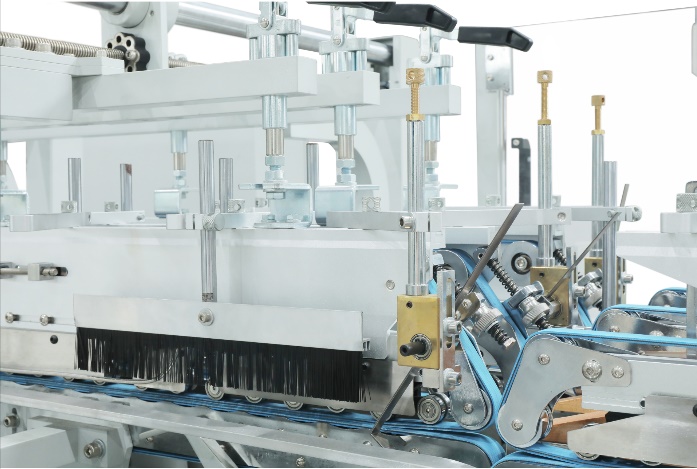

4) Crash lock bottom section

Lock-bottom folding with flexible design and rapid operation.

Crash-bottom can be finished together with 4 set of kits.

20 mm outer belts and 30mm bottom belts. Outer belts platecan be adjusted up and down to fit with different thickness of board by cam system.

AFGFCC13

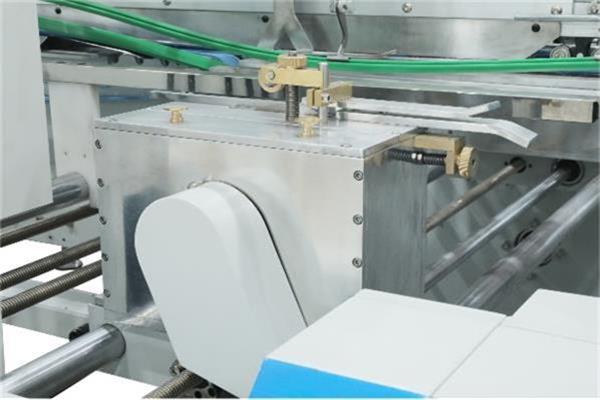

5) Lower glue unit

Left and right glue unit are equipped with 2 or 4mm glue wheel available.

6) Folding and closing section

The second line is 180 degrees and the fourth line is 180 degrees.
The special design of the transmission fold belt speed can be adjusted individually to correct box running direction to keep it straight.

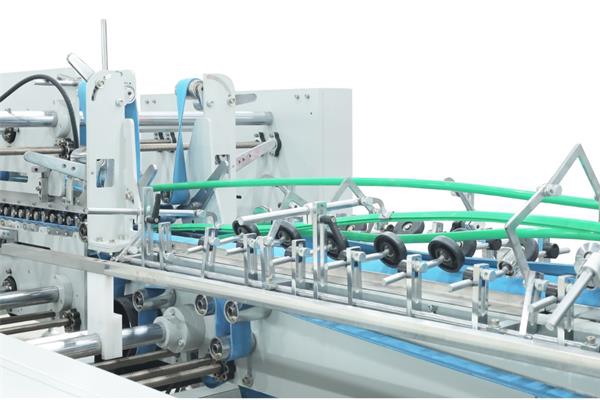

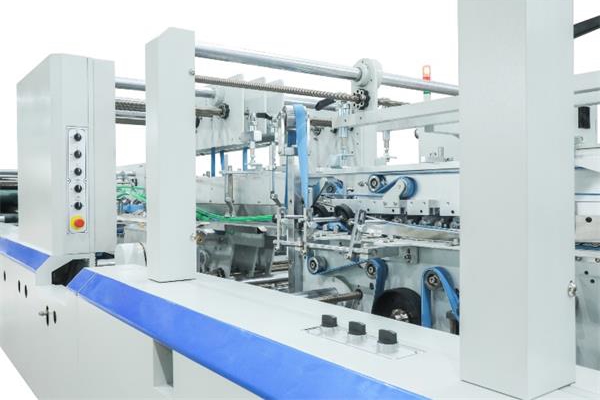

7) Motorized Adjustment

Motorized adjustment can be equipped to achieve folding plate adjustment.

AFGFCC14
AFGFCC15
AFGFCC16

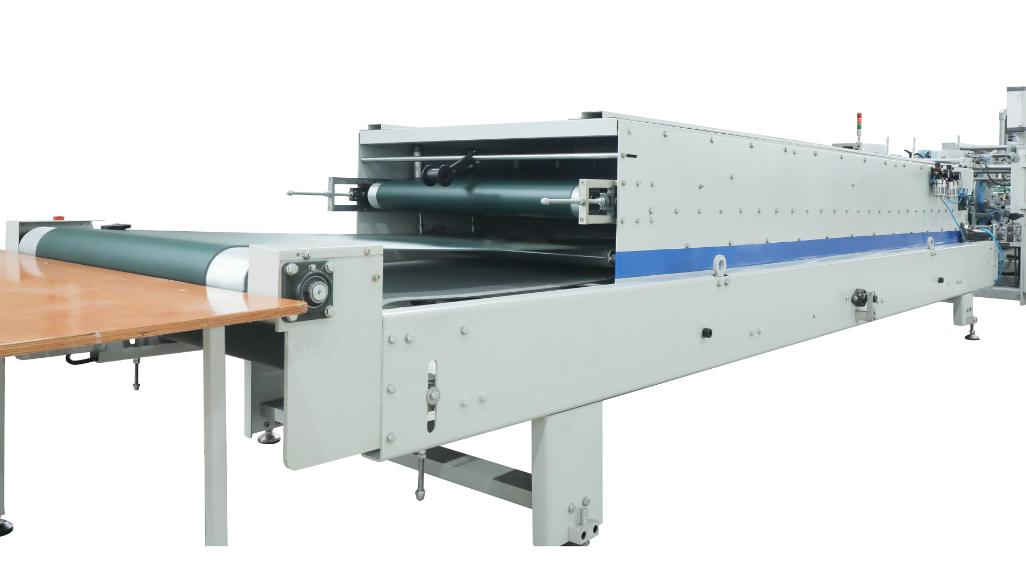

8) Pneumatic Press section

Upper section can be moved back and forward depending of box length.

Pneumatic pressure adjustment to keep uniform pressure.

Special extra sponge can be applied to press concave parts.

In auto-mode, the speed of press section keep synchrony with main machine to rise consistency of production.

AFGFCC17

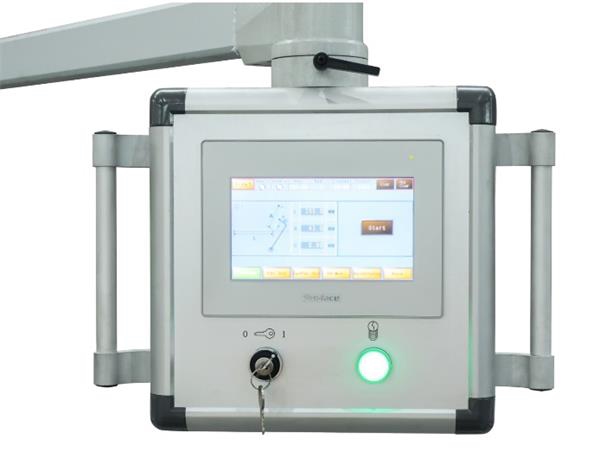

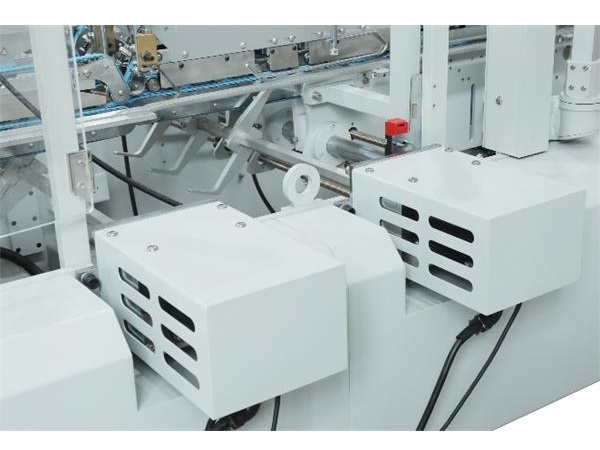

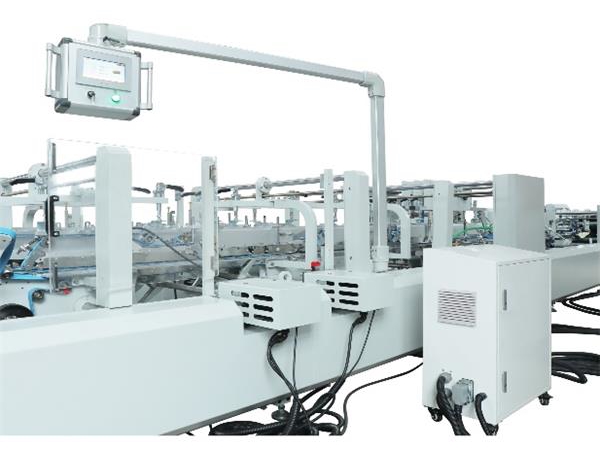

9) 4 & 6-corner device

Yasakawa servo system with motion module ensure high speed response to match high speed request. Independent touch screen facilitate the adjustment and make operation more flexible.

AFGFCC18
AFGFCC19
AFGFCC120

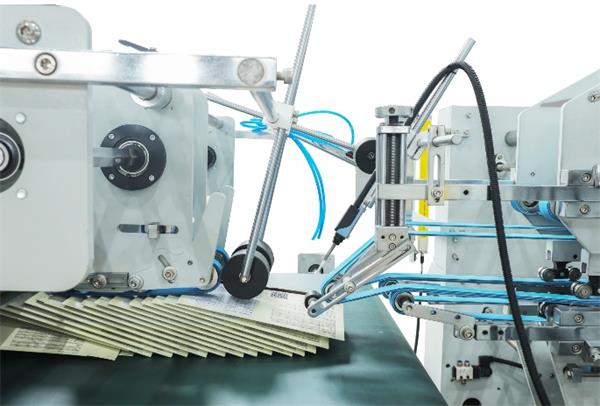

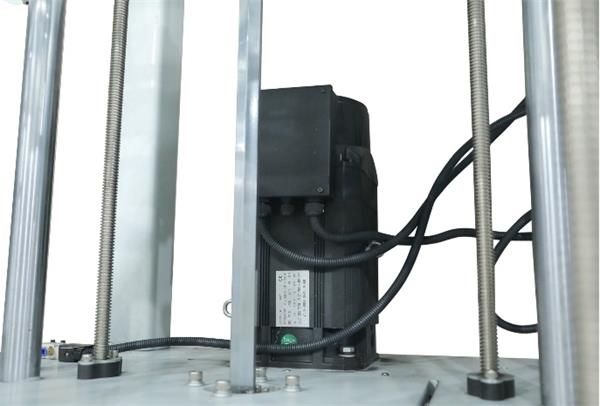

10)Servo Driven Trombone unit

Adopt photocell counting system with either “kicker” paper automatically or spray ink.

Jam inspection machine.

Up belt running with active transmission.

Whole unit is driven by independent servo motor for adjustment of box interval as wish.

AFGFCC121
AFGFCC22

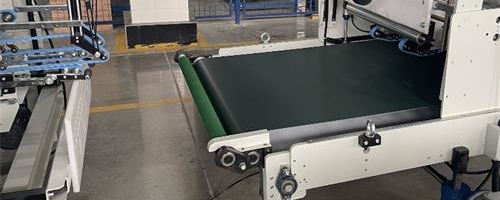

11)Lock bottom squaring device at conveyor
Square device can ensure the corrugated box square well with motorized convey belt height adjustment.

AFGFCC24

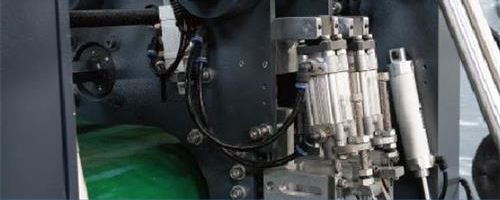

12)Pneumatic square device at conveyor
Pneumatic square device with two carrier at conveyor can ensure carton box with wide but shallow shape to get perfect square.

AFGFCC25

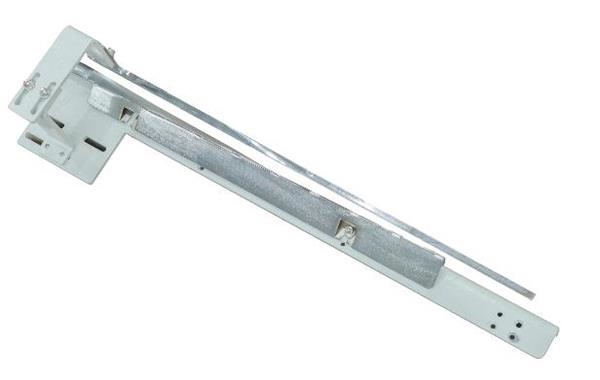

13) Minibox device
Main touch screen with graphic design interface for convenient operation.

AFGFCC26

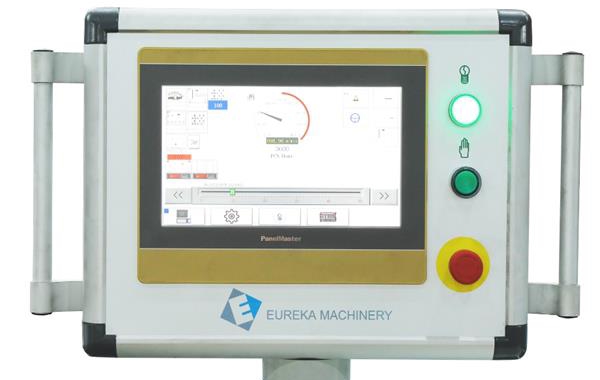

14)Main touch screen with graphic design interface
Main touch screen with graphic design interface for convenient operation.

AFGFCC27

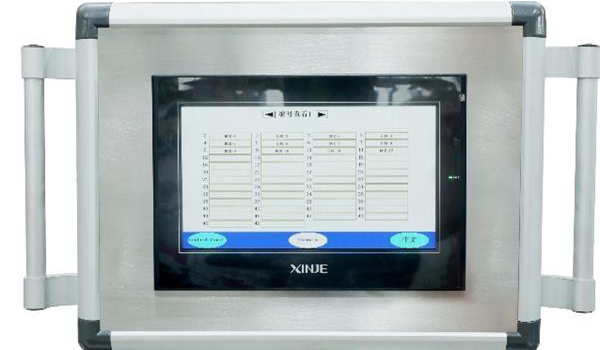

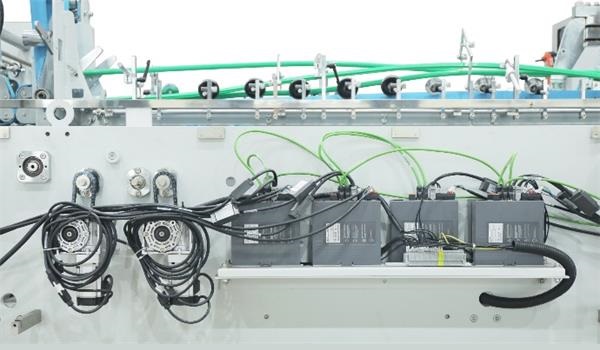

15)Memory function to save repetitive jobs

Up to 17 sets of servo motor memorize and orient the size of each plate.

Independent touch screen facilitate to set the machine into the certain size against each saved order.

AFGFCC28
AFGFCC29

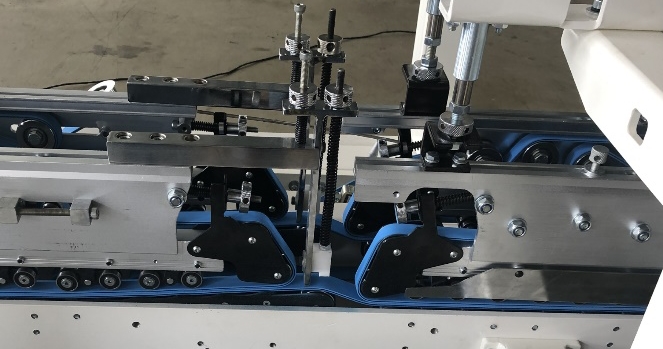

16)NON-hook crash bottom device

With special design slope, bottom of box can be crashed at high speed without conventional hook.

AFGFCC30

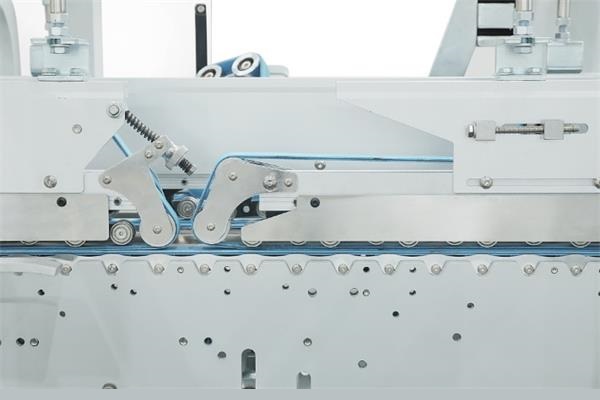

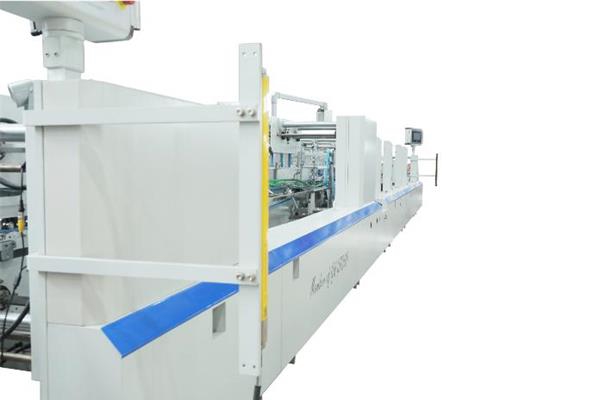

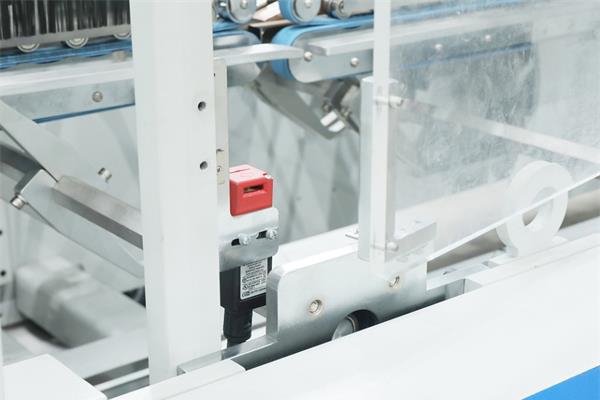

17)Light barrier and safety device
Full mechanical cover get rid of all possibility of injury.
Leuze light barrier, latch type door switch as well as safety relay fulfil CE request with redundant circuit design .

AFGFCC31
AFGFCC32
AFGFCC33

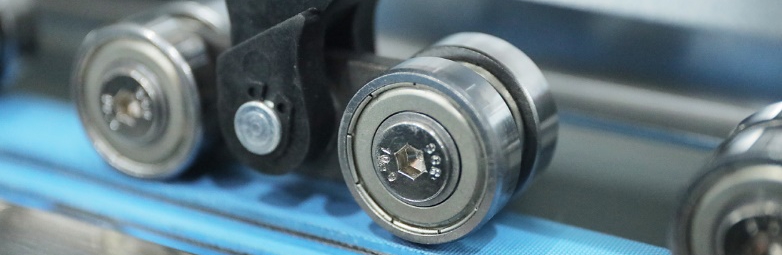

18)Pressing bearing roller from Japan NSK
Complete NKS bearing as press roller machine machine run smooth with low noise and long duration.

AFGFCC34

Specifications And Brands Of Main Parts And Accessories

Outsource list

  Name Brand origin

1

Main Motor Dong Yuan Taiwan

2

Inverter V&T Joint-ventured in China

3

Man-Machine interface Panel Master Taiwan

4

synchronous belt OPTI Germany

5

V-Ribbed Belt Hutchinson Franch

6

Bearing NSK、SKF Japan/Germany

7

Main shaft   Taiwan

8

Plan belt NITTA Japan

9

PLC Fatek Taiwan

10

Electrical components Schneider Germany

11

Pneumatic AIRTEK Taiwan

12

Electrical detection SUNX Japan

13

Linear guider SHAC Taiwan

14

Servo system Sanyo Japan

Characteristic

The machine takes the multi-groove belt transmission structure which can make low noise, stable operation and easy maintenance.
The machine uses frequency converter to achieve automatic control and save power.
The operation equipped with single tooth bar adjustment is easy and convenient. Electrical adjustment is standard.
Feeding belt adopt several extra thick belt equipped with vibration motor to ensure continuous, accurate and automatic feeding.
Because of the sectional plate of up belt with special design, the belt tension can be adjusted automatically according to products instead of manually.
The special structure design of up plate not only can protect the elastic drive effectively but also can avoid damage due to improper operation.
Lower gluing tank with screw adjustment for convenient operation.
Adopt touch screen and PLC control system with remote control. Equipped with photocell counting and auto kicker marking system.
Press section adopts special material with pneumatic pressure control. Equipped with sponge belt to ensure perfect products.
All the operation can be done by hexagonal key tools.
Machine can produce straight-line boxes with pre-folding of 1st and 3rd creases, double wall and crash-lock bottom

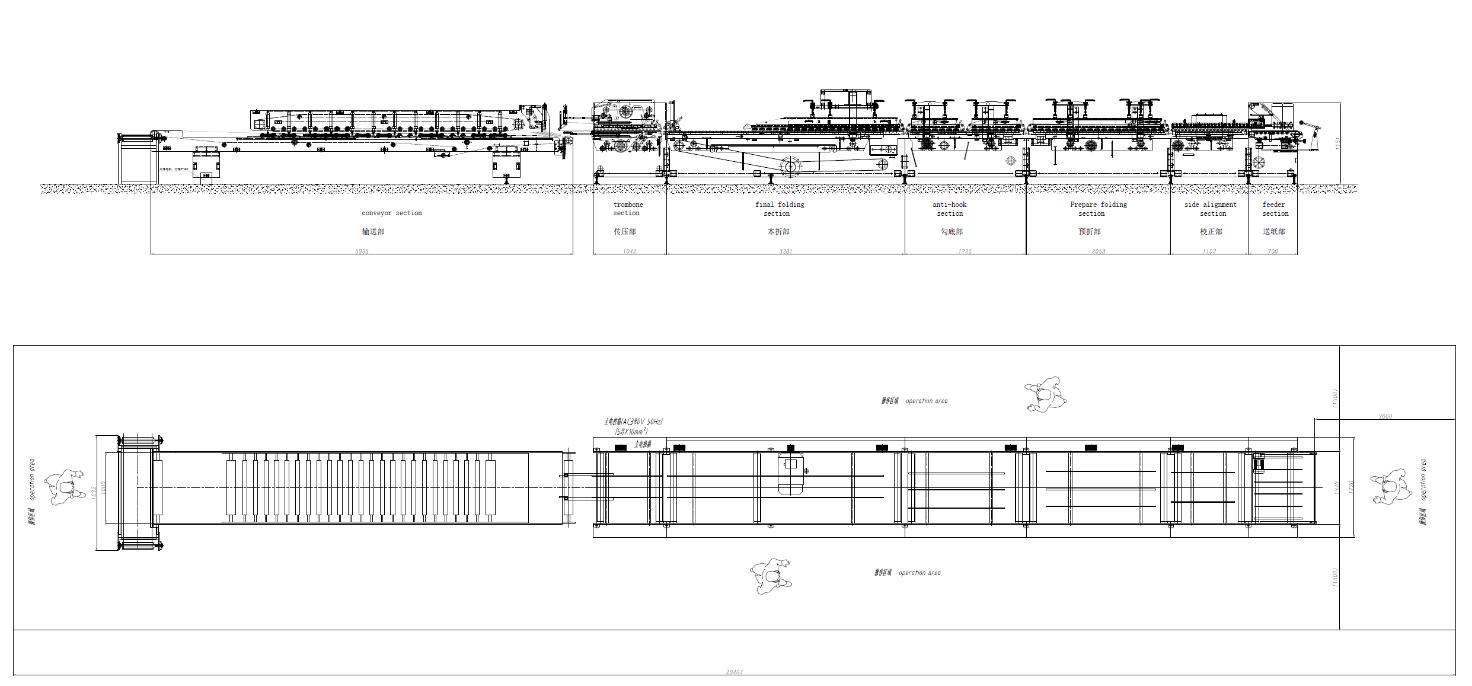

Machine Layout

AFGFCC40

Manufacturer Introduction

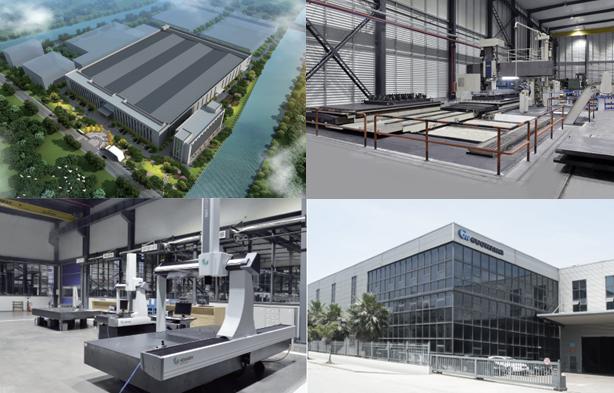

Through the co-operation with top-level partner in the world, Guowang Group (GW) owns Joint venture company with Germany partner and KOMORI global OEM project. Based on the German and Japanese advanced technology and more than 25 years experience, GW continually offer the best and highest efficient post-press solution.

GW adopts the advanced production solution and 5S management standard, from R&D, purchase, machining, assembling and inspection, every process strictly follow the highest standard.

GW invest a lot in the CNC, import DMG, INNSE- BERADI, PAMA, STARRAG, TOSHIBA, OKUMA, MAZAK, MITSUBISHI etc. from all over the world. Only because pursues the high quality. The strong CNC team is the firm guaranty of the quality of your products. In GW, you will feel the “high efficient and high precision”

AFGFCC41
