FS-SHARK-650 FMCG/Cosmetic/Electronic Carton Inspection Machine
Bigger Width: Support 650mm width with maximum carton thickness 600gsm, Compatible for cigarette, pharmacy and all other kind of color cartons.
Multiple suction feeder: Flexibly adjust for big width products
Mixture Feeder: Strong adaptability. Common product can adopt friction feeder, for easily scratch products can adopt suction feeder.
Adjustable belt Mode: Suitable for different kind length products collection.
Auto stacker: Suitable for regular shape products collection by stacker
Fish scale collection: Support different shape products collection
Double waste collection: Different defects collected by different rejection conveyor
Double reject device: Depending upon the carton thickness can use plate rejecter or Air rejection, support reject E corrugated
User friendly interface allows easy configuration of software
Support R,G,B three channel separately checking
Provide different kind products setting templates, include cigarettes, pharmacy, tag and other colour boxes.
System provide group setting, classified and grad default value on basis of different type.
No need frequently setting the parameters.
Have module convert from RGB-LAB support do color difference inspection
Easy model turning during inspection
Different tolerance level can be set in different regions to select critical/non-critical areas
Reject image viewer for defect visualization
Special scratch cluster detection
Archive all defective print images into the database
Powerful software algorithm permit sensitive defect detection while maintaining high yield
Region wise online defect statistical report generation for corrective actions
Create template by layer, can add different layers match the different image processing algorithm.
Complete integration with the mechanicals of the machine (full proof inspection)
Fail proof carton tracking systemso that a reject should never goes to the accepted bin
Automatic alignment of image with respect to key register points to adjust for small tilt
Powerful Industrial computer processor & software with high storage capacity to handle huge volume of images and database, backed by best inindustry after sales support
Troubleshooting by remote access through Team viewer for both machine and software
All cameras images can be viewed simultaneously on the run
Quick job changeover–make ready of master within 15 min
Images and defects can be learned if required on the run.
Special Algorithm allow low contrast detection in large arealess than 20DN.
Detailed Defect report including images.
What does this machine do?
The FS SHARK 650 Inspection Machine will precisely find out the defects of printing on cartons and reject the bad ones from the good ones automatically at high speed.
How does this machine work?
The FS SHARK 650 cameras scan some good cartons as “STANDARD” and then while the rest of the printed jobs are inspected be scanned one by one and compared with the “STANDARD”, any mal-printed or defective ones will be rejected automatically by the system. It detects every type of printing or finishing Defects like Color Mis-registration, Color variations, Hazing, Misprints, Defect in the text, spots, splashes, varnishing missing & Mis-registration, embossing missing & Mis-registration, Laminating problems, Die-cut problems, Barcode problems, Holographic foil, cure& cast and many other printing problems.

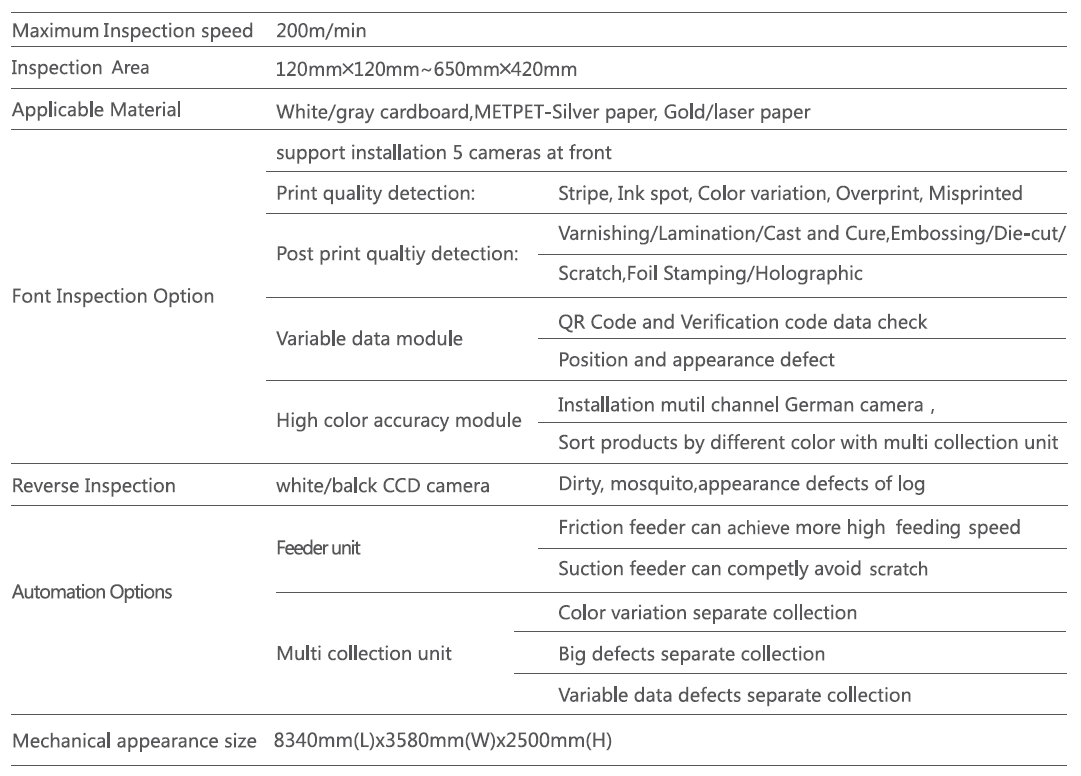

| Front Imaging Resolution(Color camera) | 0.1*0.12mm |
| Front Imaging Resolution(Angle camera) | 0.05*0.12mm |
| Front Imaging Resolution(Surface camera) | 0.05*0.12mm |
| Reverse Imaging Resolution(Reverse camera) | 0.11*0.24mm |
Schematic Diagram of Machine Vision System

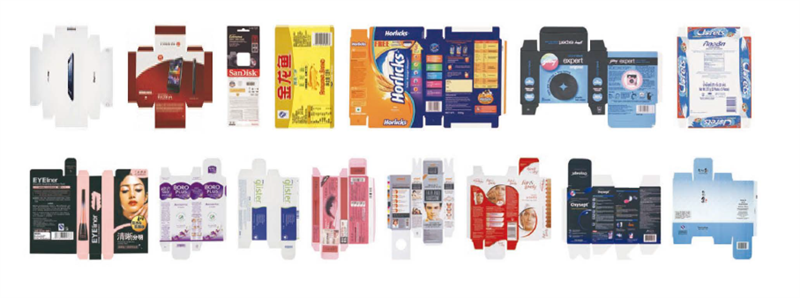

Samples for inspected FMCG boxes
Samples for defects
Samples for QR code

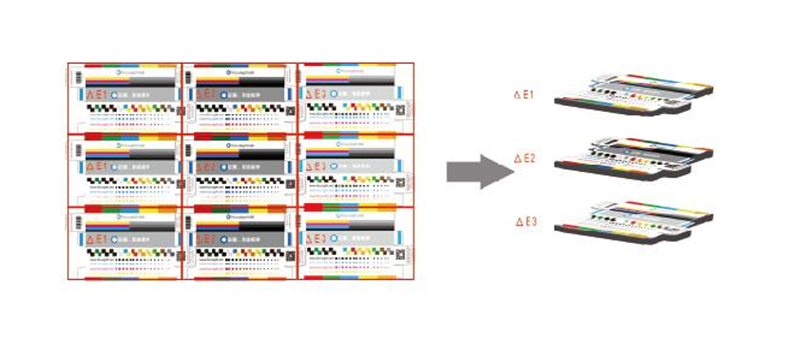

Separation Diagram
