L800-A&L1000/2-A Carton Erecting Machine Tray Former for burger box
| Type | L800-A | L1000/2-A |
| Max. Production capacity | 200 pcs/min | 400 pcs/min |
| Suitable Material: | 200-600g/m2 paper board,corrugated board paper with thickness not exceed 1.5 mm | 200-600g/m2 paper board,corrugated board paper with thickness not exceed 1.5 mm |
| Blank length(L) | 100-450mm | 100-450mm |
| Blank width(B) | 100-680mm | 100mm-450mm |
| Height of side flaps(H) | 15mm-260mm | 15mm-260mm |
| Height of side flaps+lid(H1) | 50mm-260mm | 50mm-260mm |
| Conicity | 5°-40° | 5°-40° |
| Total Power: | 8KW | 8KW |
| Total Weight: | 1.89T | 2.65T |
| Overall Dimension: | 4mx 1.2 m | 4m x 1.4mm |
| power source | 380V 50HZ | 380V 50HZ |

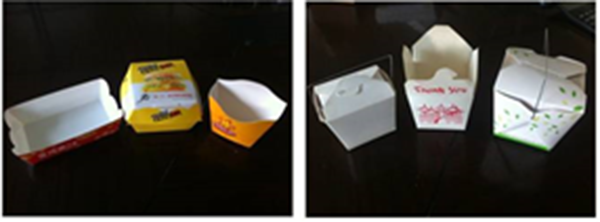

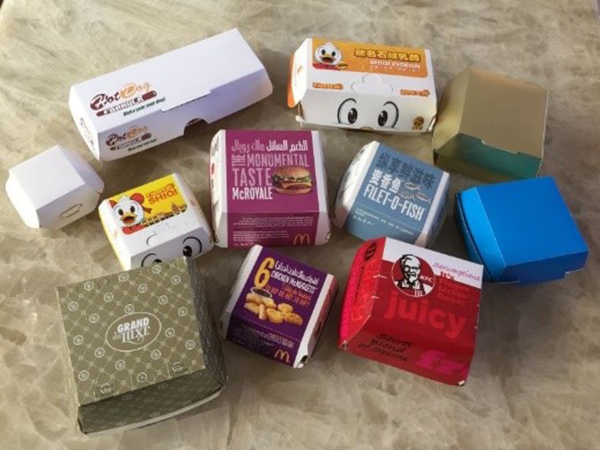

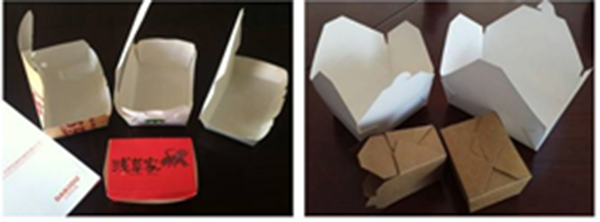

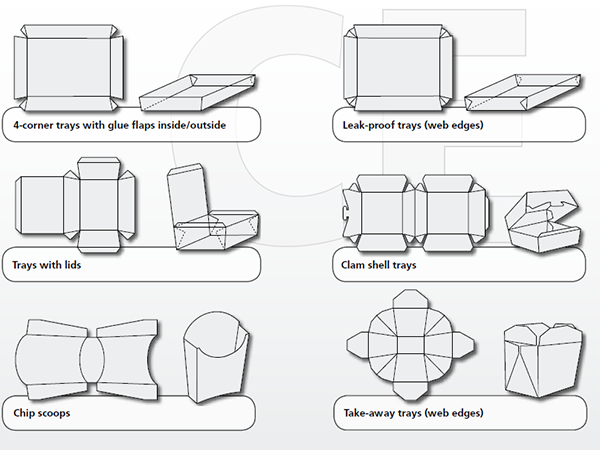

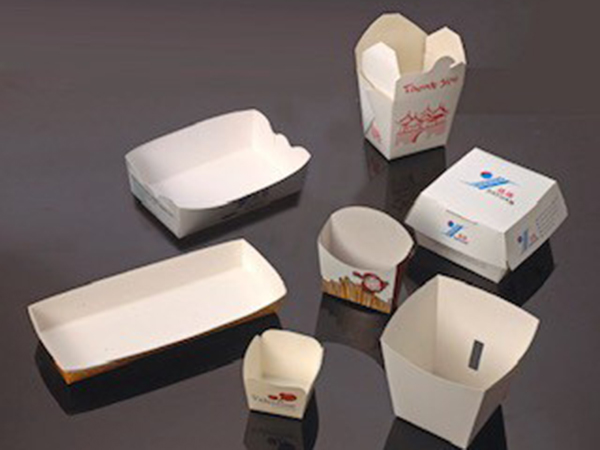

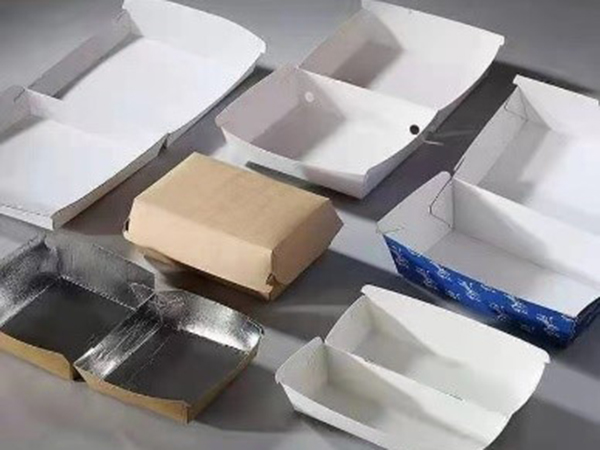

The carton erecting machine is highly efficient. The working speed of double station model is Max 400 pieces per minute and finished produces are automatically counted. It can be customized to do different size and shaped boxes through changing mold.（hamburger box, fried chips box, paper tray, noodle box, lunch box and other food container）

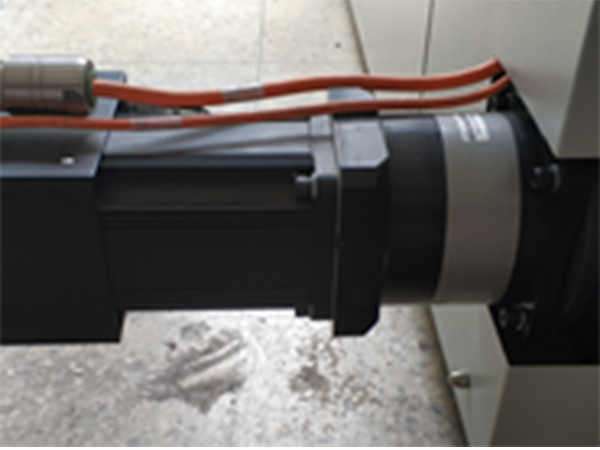

Adopting the Rexroth Servo system to control the punching head, it is more precise and convenient.

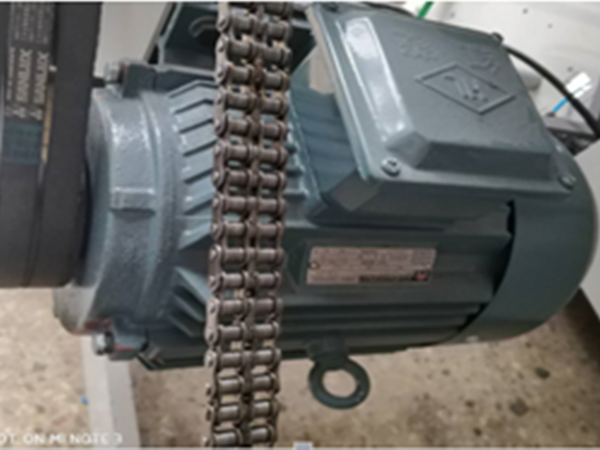

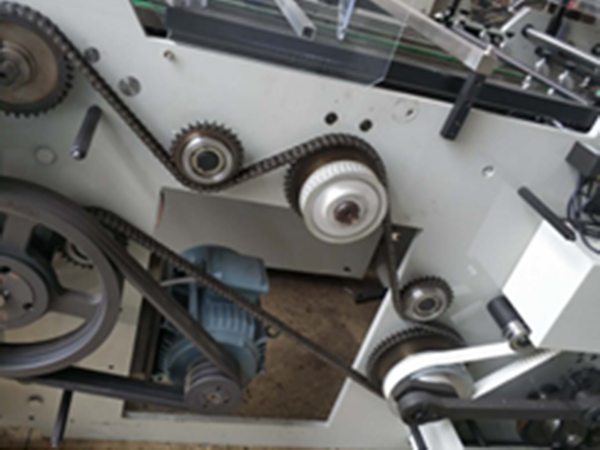

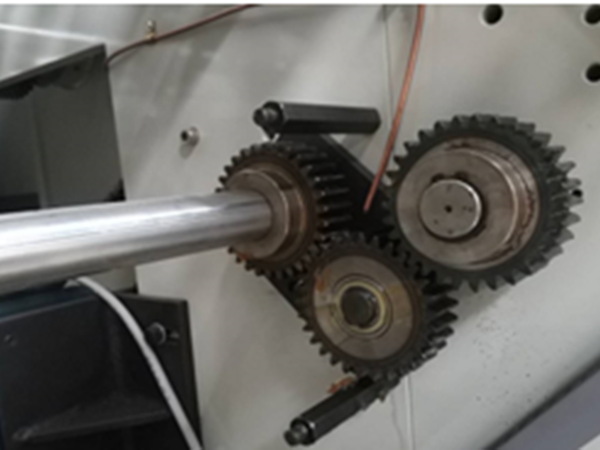

The chain drive is adopted in the machine to ensure the smooth running, and endurable structure. Each part is separated to reduce noise and workload, as well as to increase the stability.

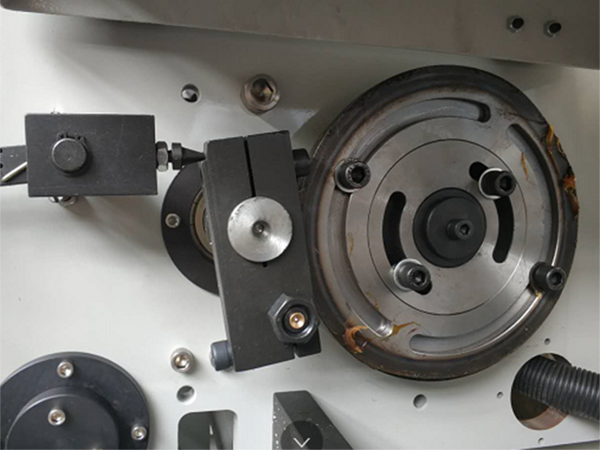

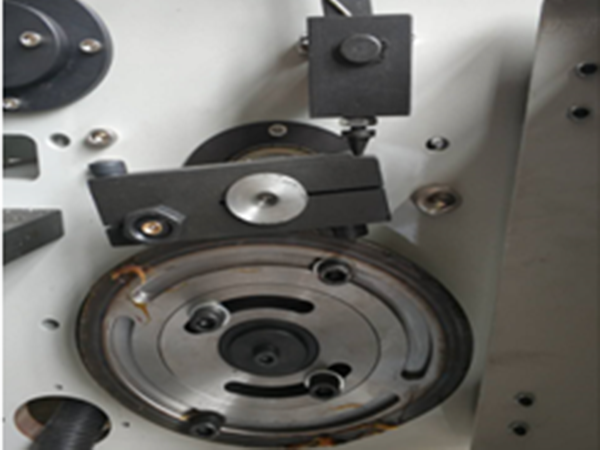

Time of paper feeding is adjusted by cam. Simply operating, reducing failure rate

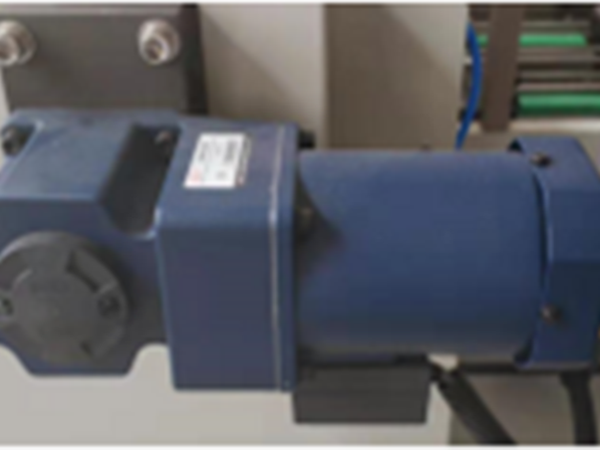

Automatic gluing systems controlled by reduce motor from Taiwan. Gluing point is made of sponge.
Automatic gluing systems controlled by reduce motor from Taiwan. Gluing point is made of sponge.

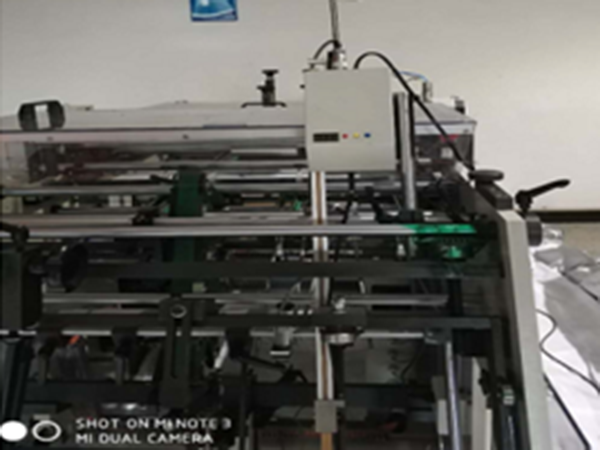

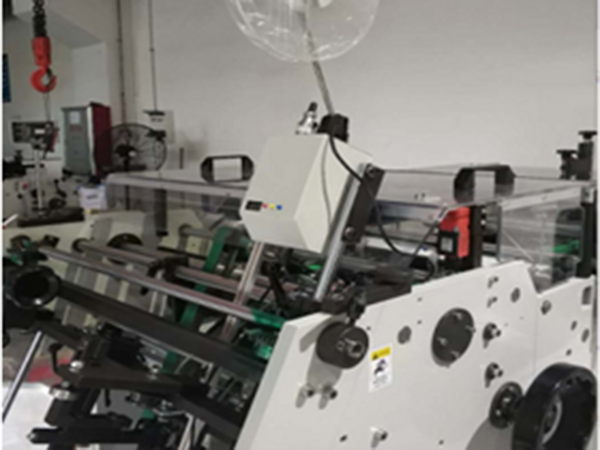

It adapts paper tape counting equipment to count product quickly and accurately, and to be readjusted

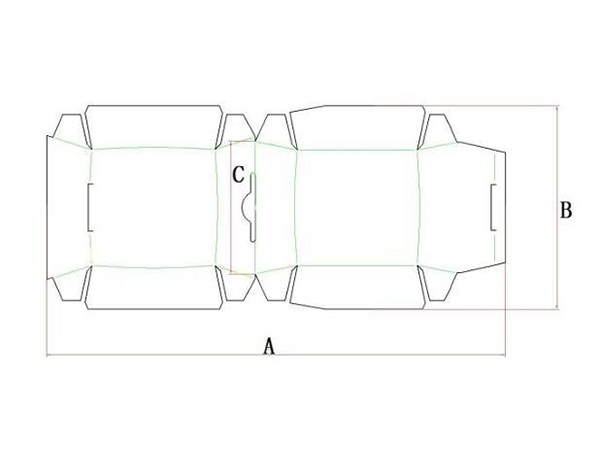

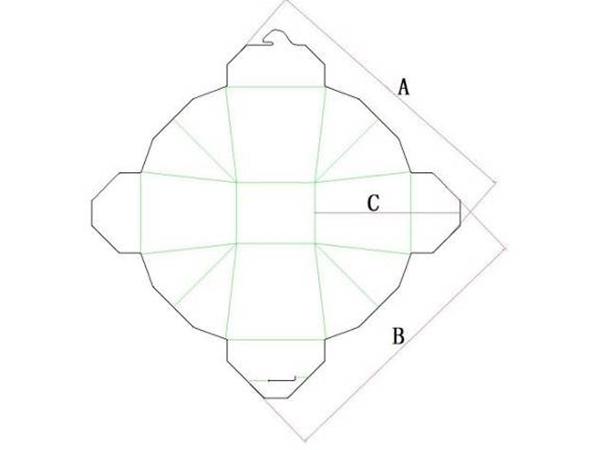

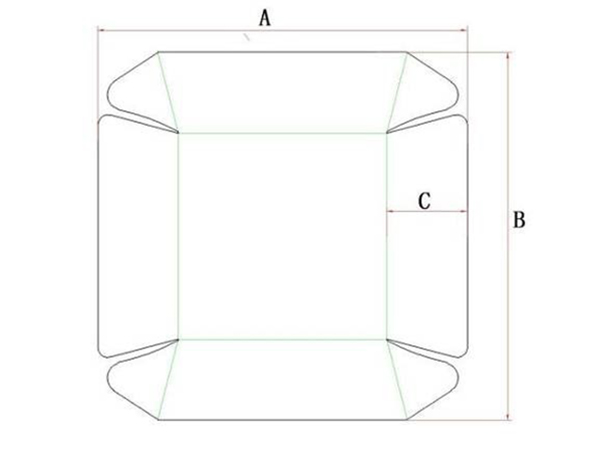

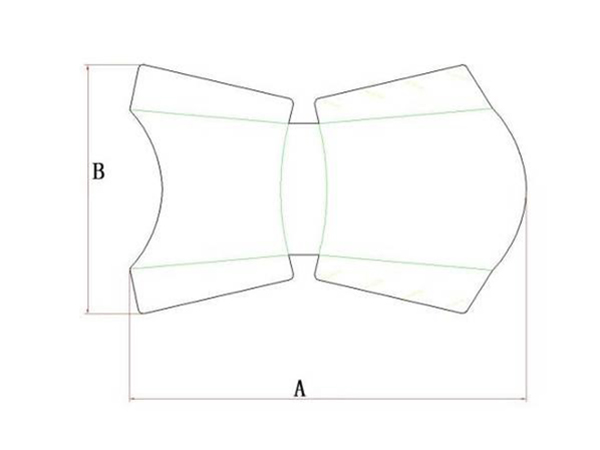

A:100-450mm B:100-450mm C:15-220mm
A:100-400mm B:100-450mm
A:100-680mm B:100-450mm C:50-220mm
A:100-450mm B:100-450mm C:15-220mm
Degree of box 5°-40°
Carton material: 200gsm/㎡-600gsm/㎡
Corrugated paper : up to 1.5mm
P.S. If special size and configuration, we can do it according to your requirement.
|
TYPE |
NAME |
BRAND |
|
|
Servo system |
Rexroth(Germany) |
|
Motor |
Main motor |
HL(China) |
|
gluing motor |
JSCC (TAIWAN) |
|
|
Electric elements |
PLC |
SIEMENS |
|
HMI |
||
|
Frequency converter |
Rockwell Automation |
|
|
Proximity Switch |
BERNSTEIN(Germany) |
|
|
Safe Door Switch |
||
|
Photoelectric switch |
||
|
Button |
SCHNEIDER |
|
|
Urgent Stop Button |
||
|
Button Box |
||
|
Power Switch |
MEAN WELL (TAIWAN) |
|
|
Pneumatic |
Main air cylinder |
SMC (JAPAN) |
|
Belt |
paper feeding belt |
Hanma (CHINA) |
|
convey belt |
||
|
Bearing |
Bearing |
NSK (JAPAN) |
| SPARE PARTS | NAME | INSTALLATION |
 |

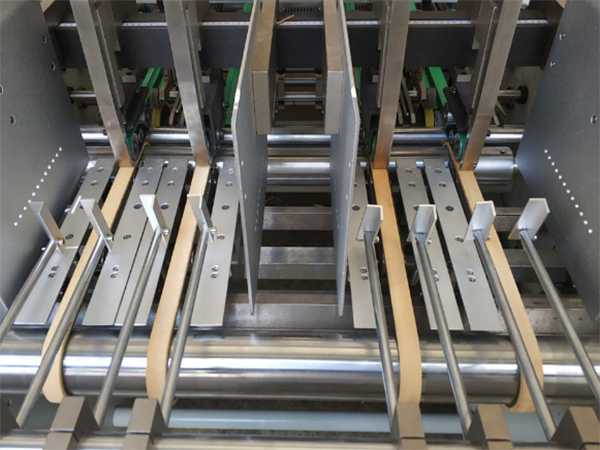

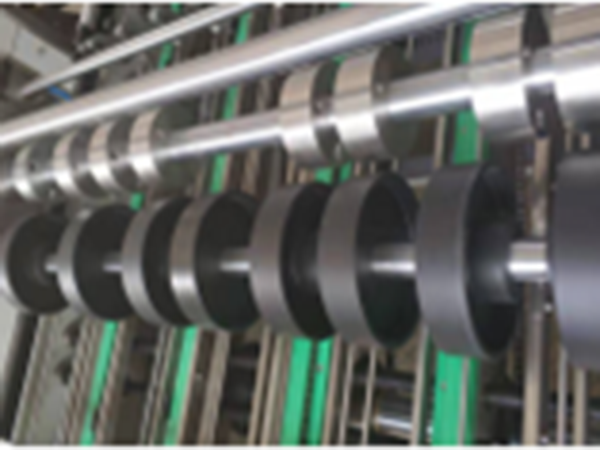

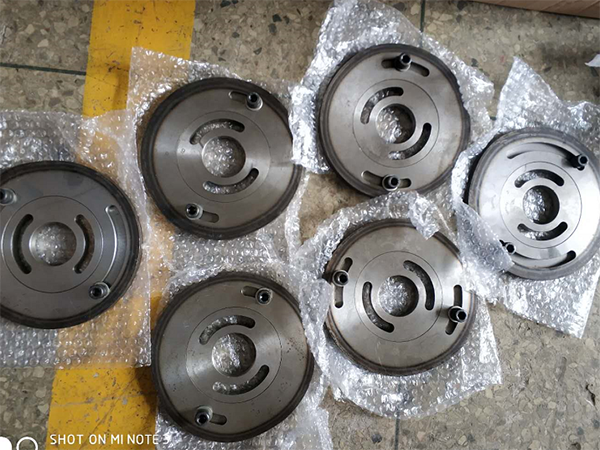

Paper feeding wheel

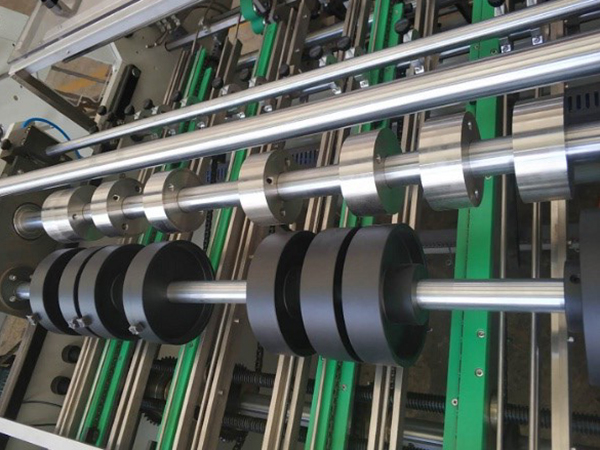

Change the different size wheel to adjust the feeding length 240mm 350mm 420mm 480mm |
 |
 |

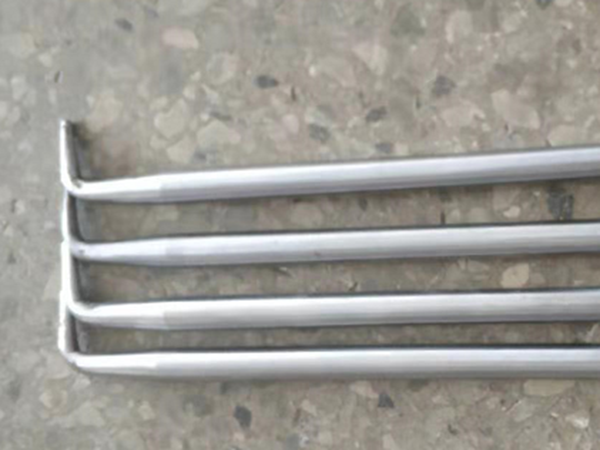

Hamburger box folding knife
Folding the middle line of hamburger box into the mold
|
 |
 |

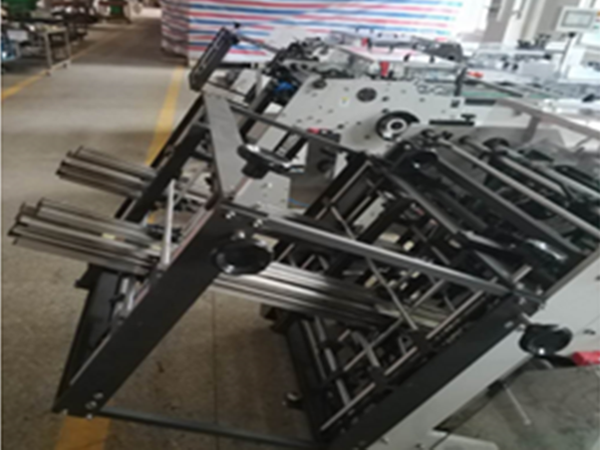

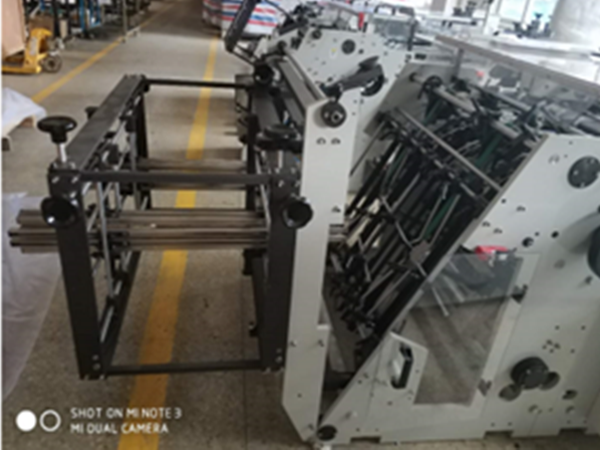

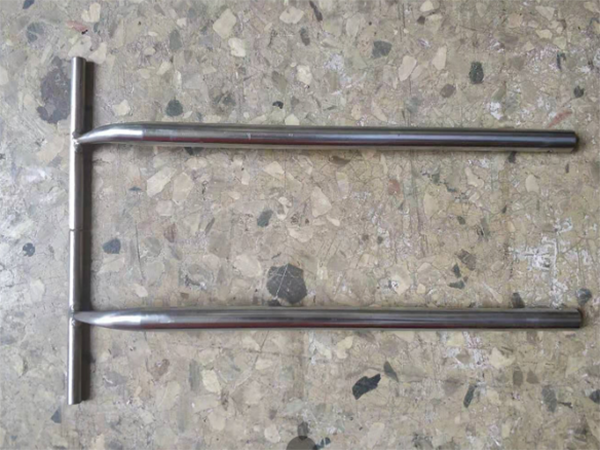

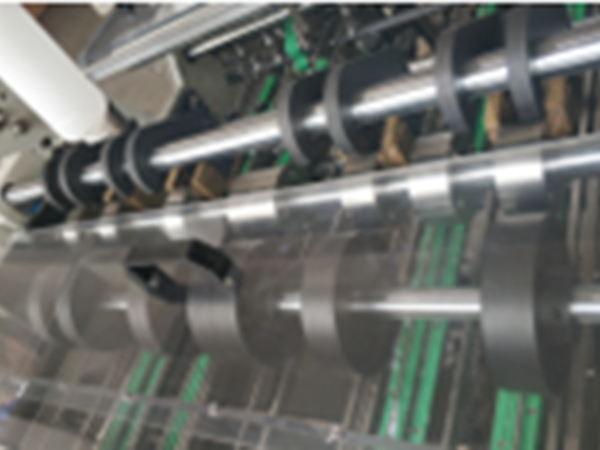

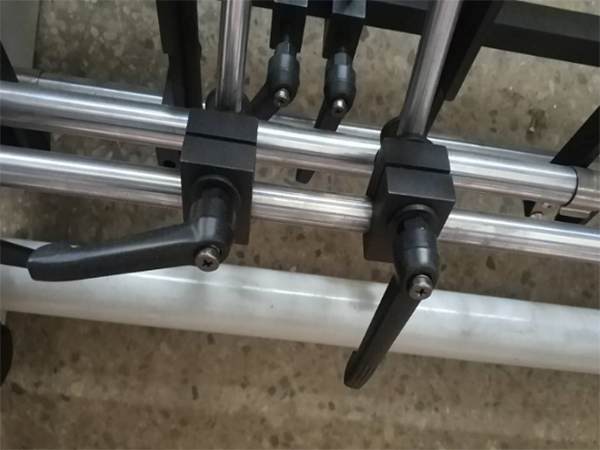

Feeding Unit and guide street |  |
 |

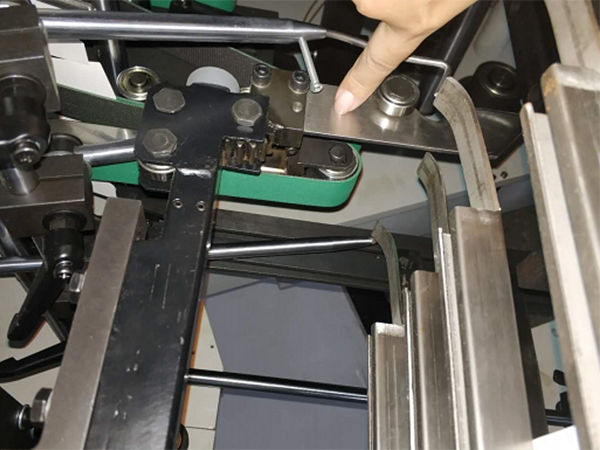

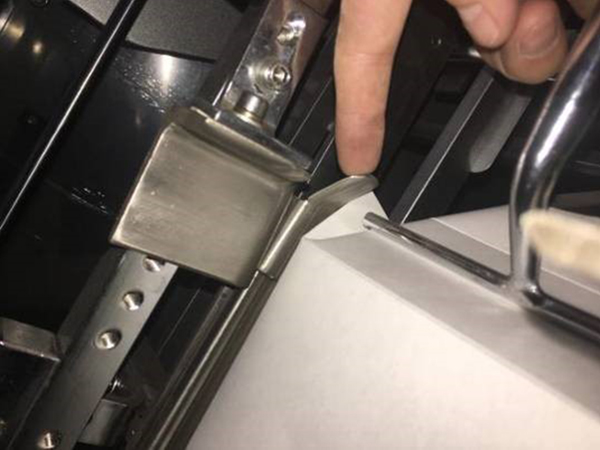

Glue box and Leak proof box corner folding parts
|
 |
 |

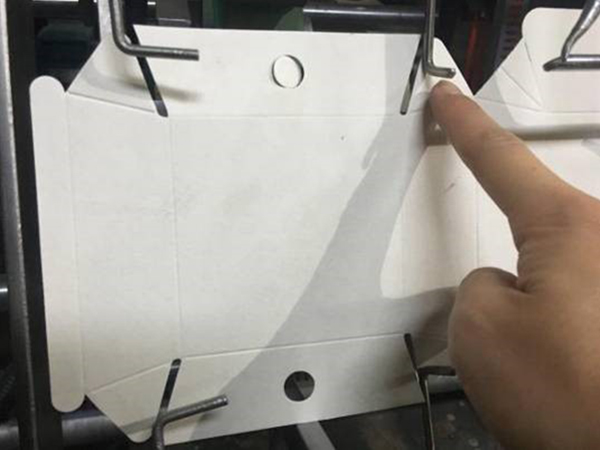

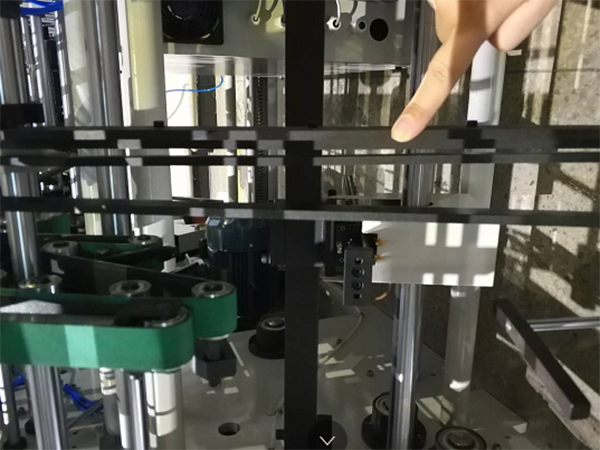

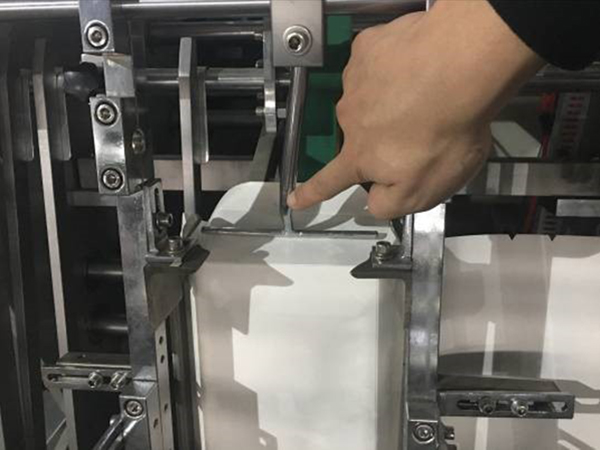

Leak proof box corner folding parts and The Guide rail to make sure the paper down to the precise position
|
 |
 |

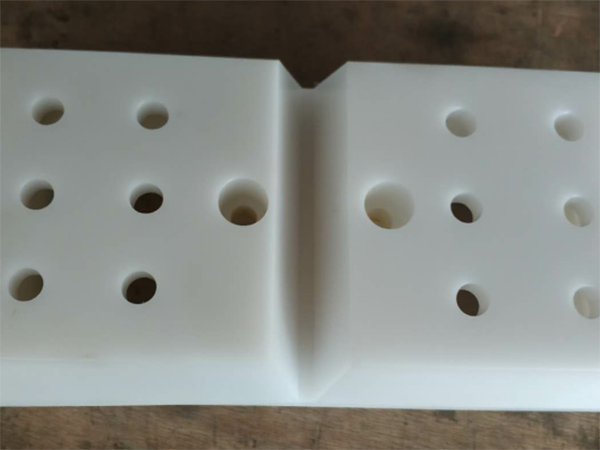

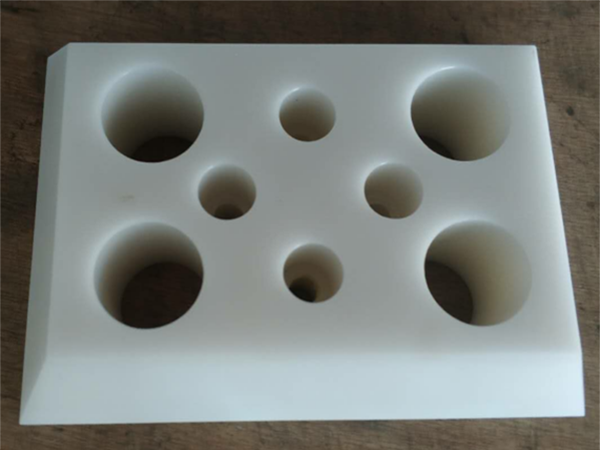

Nylon molds ( 8 corners & 4 corners) |  |
 |

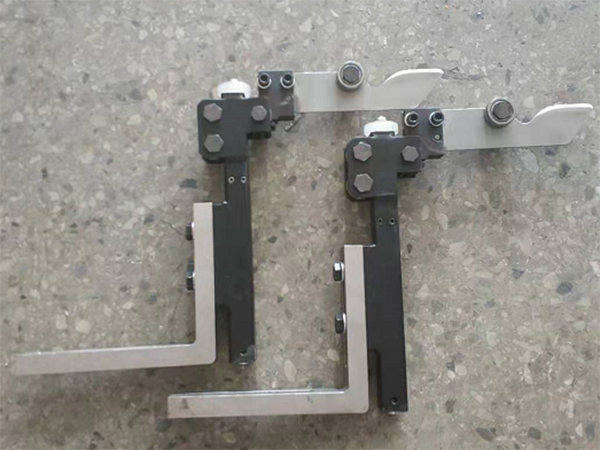

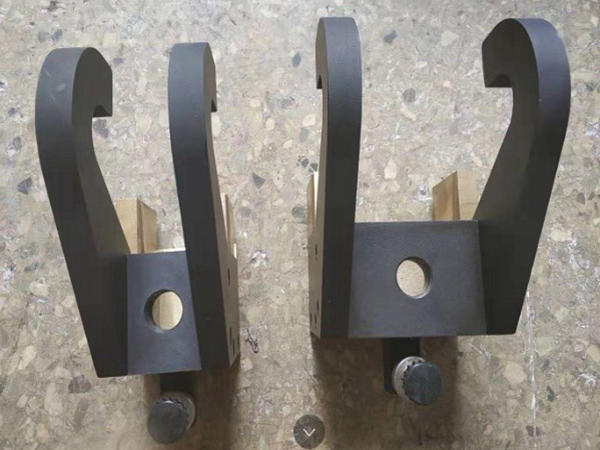

Box edge folding parts
|
 |
 |
Tray corner folding parts
|
 |
 |

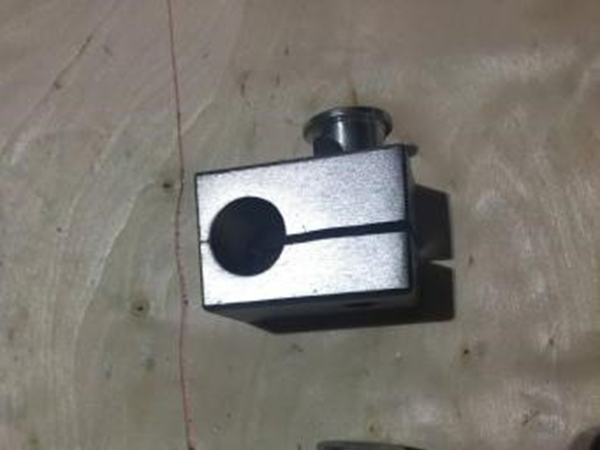

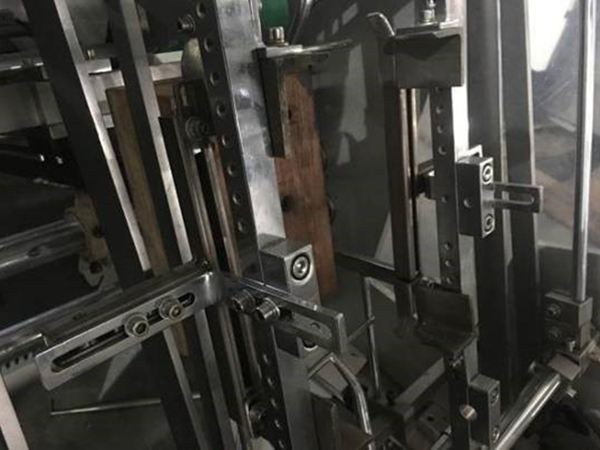

Install the folding parts in these fixed parts
|
 |
 |

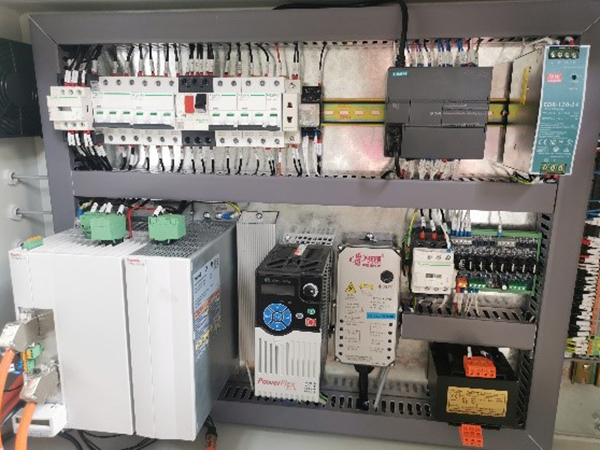

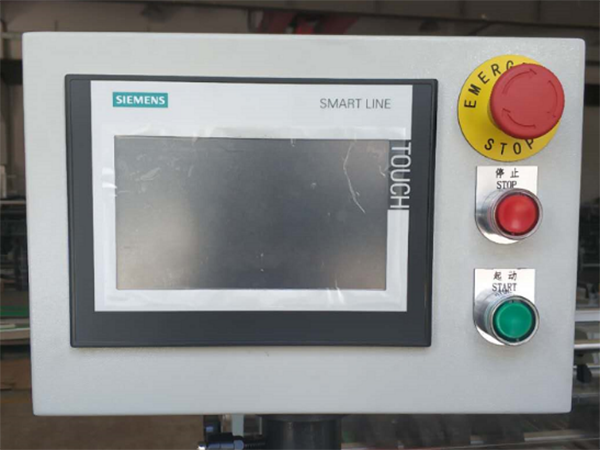

Screen and electrical box |  |
