CM540A Automatic Case Maker
| Model | CM540A | |
|
1 |

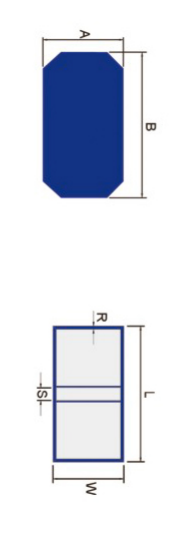

Case size(A×B) | MIN: 100×200mmMAX: 540×1000mm |
|
2 |
Paper size(A×B) | MIN: 90×190mmMAX: 570×1030mm |
|
3 |
Paper thickness | 100~200g/m2 |
|
4 |
Cardboard thickness(T) | 1~3mm |
|
5 |
Min. spine size (S) | 10mm |
|
6 |
Folded paper size(R) | 10~18mm |
|
7 |
Max. quantity of cardboard | 6pieces |
|
8 |
Precision | ±0.50mm |
|
9 |
Production speed | ≦35sheets/min |
|
10 |
Power | 11kw/380v 3phase |
|
11 |
Air supply | 35L/min 0.6MPa |
|
12 |
Machine weight | 3900kg |
|
13 |

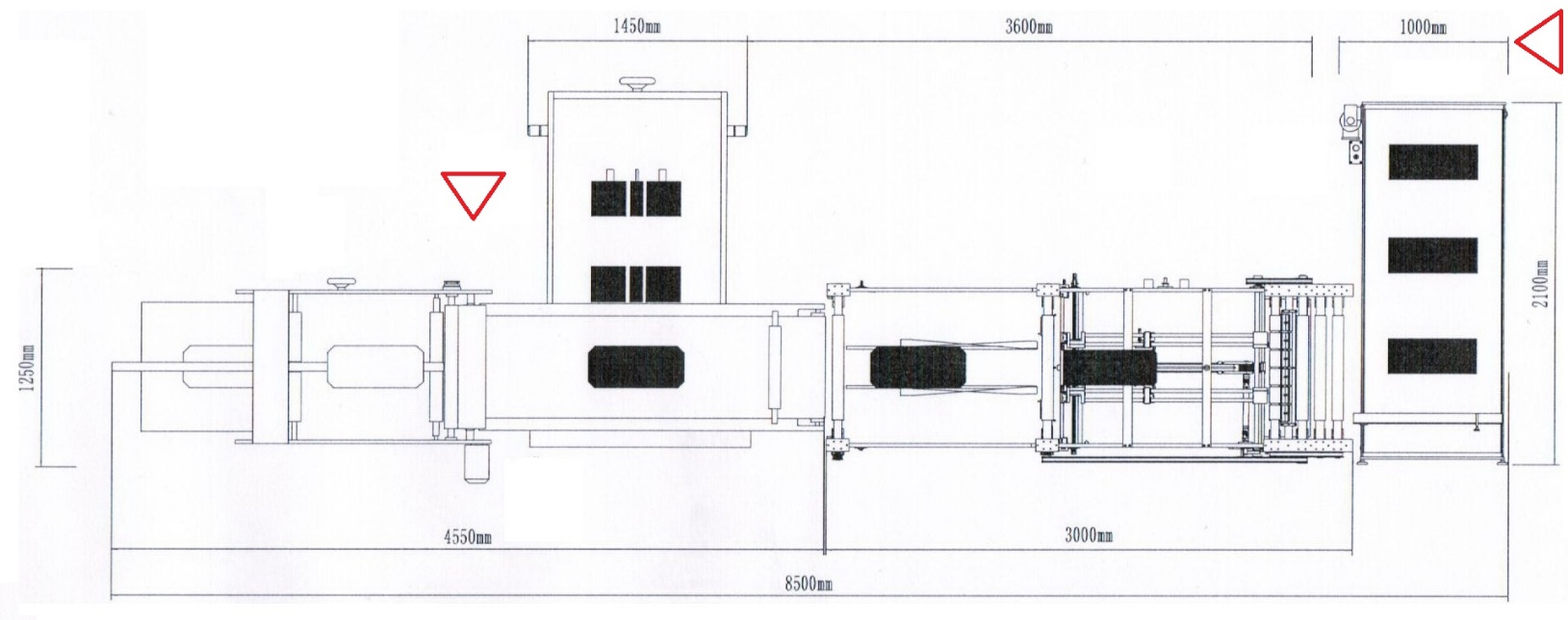

Machine dimension (L×W×H) | L8500×W2300×H1700mm |
1. Automatically delivery and gluing for paper
2. Automatically delivering, positioning and spotting for cardboards.
3. Hot melting glue circulation system

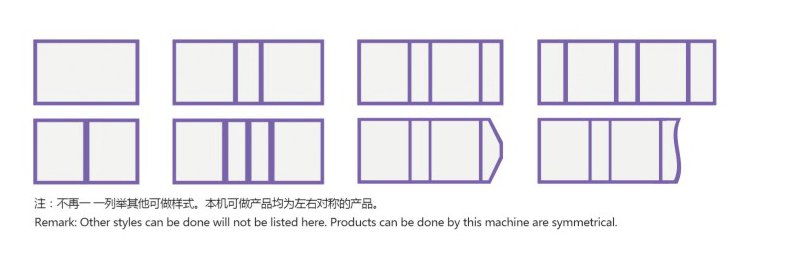

4. Automatically folding and forming case four-edge (Available to make Irregular shape cases)
5. With friendly HMI, all troubles will be displayed on the computer.
6. Integrated cover is designed according to the European CE Standards, featuring in safety and humanity.
7. Optional device: glue viscosity meter, soft spine device, Servo senor positioning device

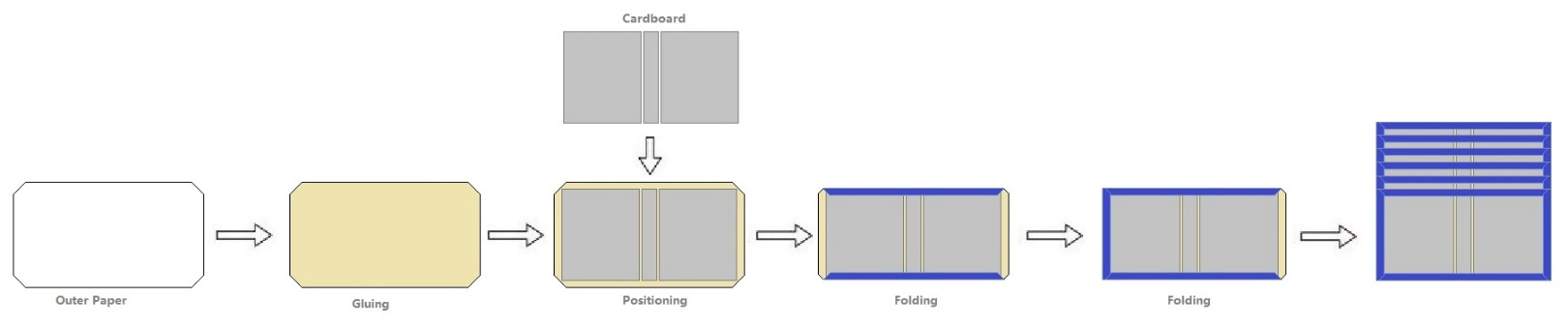

Irregular case folding technology
Adopt original folding technology which solves the technical difficulties of irregular case in the field.

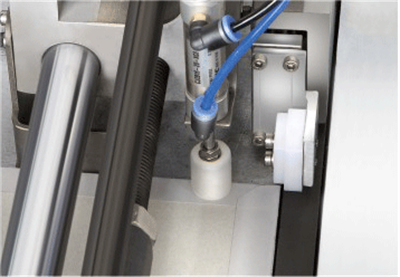

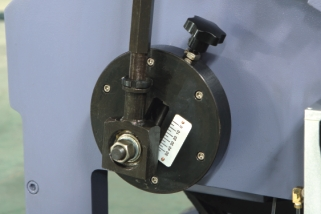

Pneumatic pressure control
Pneumatic pressure control, adjust convenient and stable
New paper stacker
520mm in height, More papers each time, reduce the stop time.

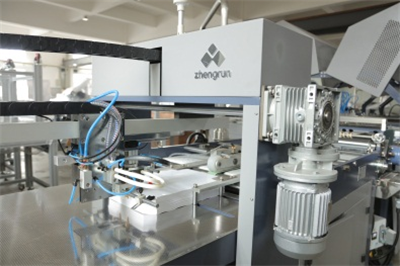

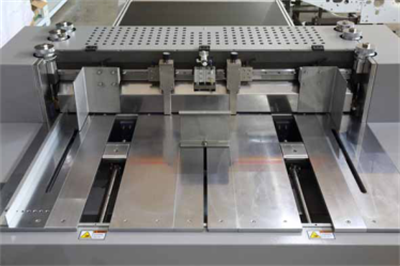

Fully automatic paper feeder
Fully pneumatic controlled post-sucked type paper feeder is easy to maintenance.
2 workers: 1 main operator and load the material, 1 worker collect the box.

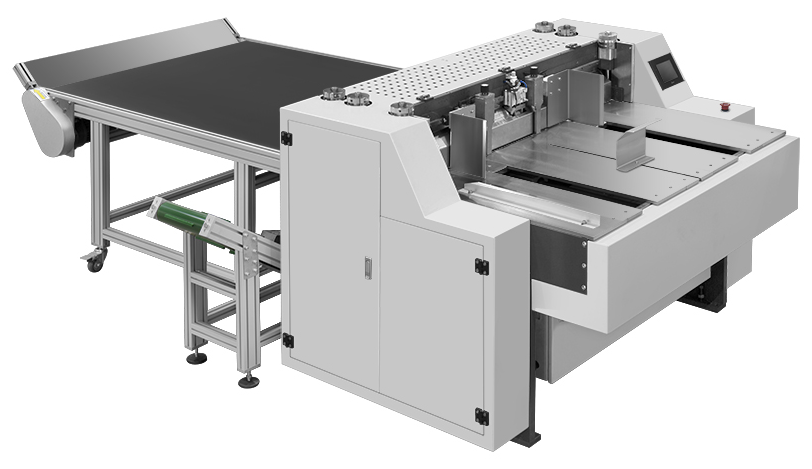

Optional FD-KL1300A Cardboard cutter
(Auxiliary Equipment 1)

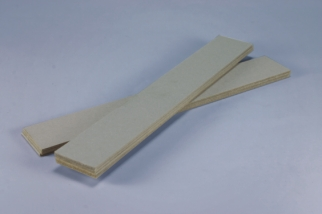

It is mainly used for cutting material like hardboard, industrial cardboard, grey cardboard, etc.
It is necessary for hardcover books, boxes, etc.
1. Feeding large size cardboard by hand and small size cardboard automatically. Servo controlled and setup via touch screen.
2. Pneumatic cylinders control the pressure, easy adjustment of cardboard thickness.
3. The safety cover is designed according to European CE standard.
4. Adopt the concentrated lubrication system, easy to maintain.
5. Main structure is made of casting iron, stable without bending.

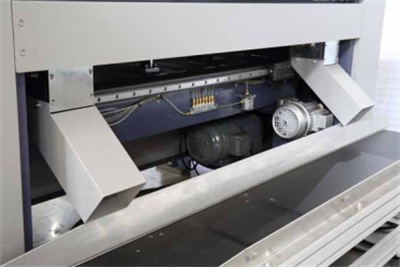

6. The crusher cuts the waste into small pieces and discharges them with conveyor belt.
7. Finished production output: with a 2 meter conveyor belt for collecting.
| Model | FD-KL1300A |
| Cardboard width | W≤1300mm, L≤1300mm

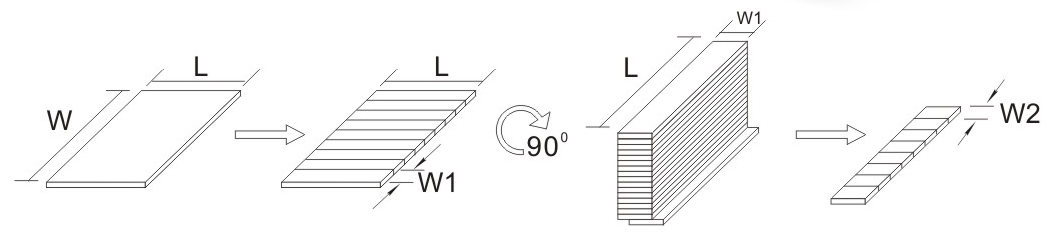

W1=100-800mm, W2≥55mm |
| Cardboard thickness | 1-3mm |
| Production speed | ≤60m/min |
| Precision | +-0.1mm |
| Motor power | 4kw/380v 3phase |
| Air supply | 0.1L/min 0.6Mpa |
| Machine weight | 1300kg |

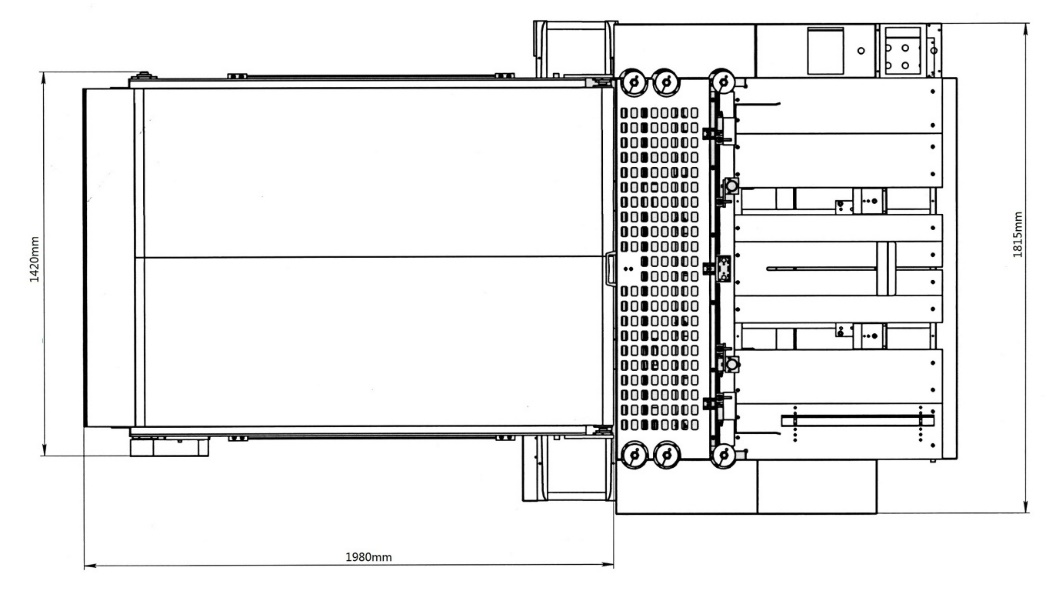

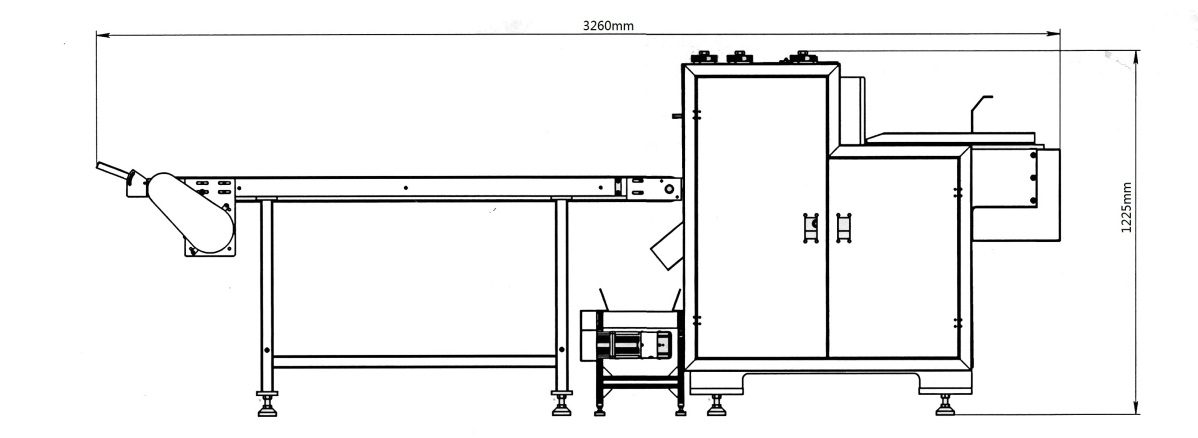

| Machine dimension | L3260×W1815×H1225mm |
Remark: We don’t provide air compressor.
Auto feeder

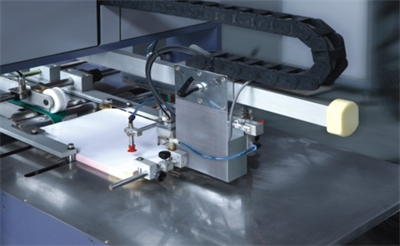

It adopts bottom-drawn feeder which feeding the material without stopping. It’s available to feed small size of board automatically.

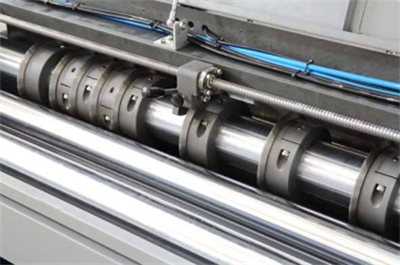

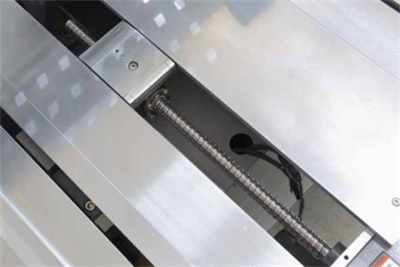

Servo and Ball Screw
The feeders are controlled by the ball screw, driven by the servo motor which efficiently improves the precision and makes adjustment easy.

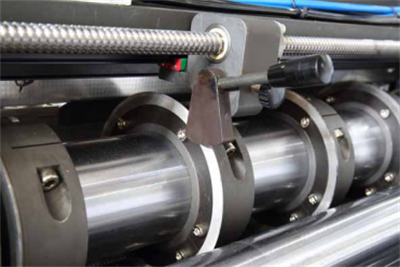

8 sets of High Quality knives
Adopt alloy round knives which reduce the abrasion and improve the cutting efficiency. Durable.
Auto knife distance setting
The distance of cut lines can be set by touch screen. According to the setting, the guide will automatically move to the position. No measurement required.

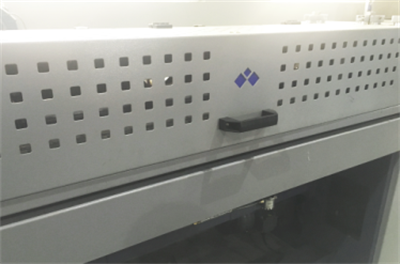

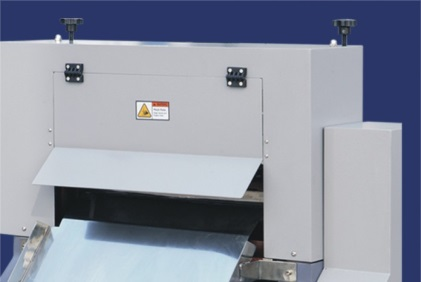

CE standard safety cover
The safety cover is designed according to the CE standard which efficiently prevents the disoperation and ensures the personal safety.
Waste crusher
The waste will be automatically crushed and collected when cutting the large sheet of cardboard.

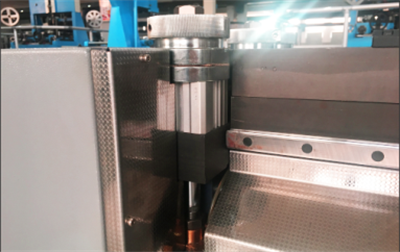

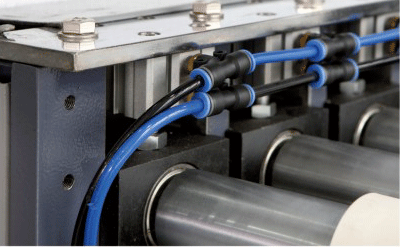

Pneumatic pressure control device
Adopt air cylinders for the pressure control which reduce the operational requirement for workers.
Touch screen
Friendly HMI helps the adjustment easy and fast. With Auto counter, alarm and knife distance setting, language switch.

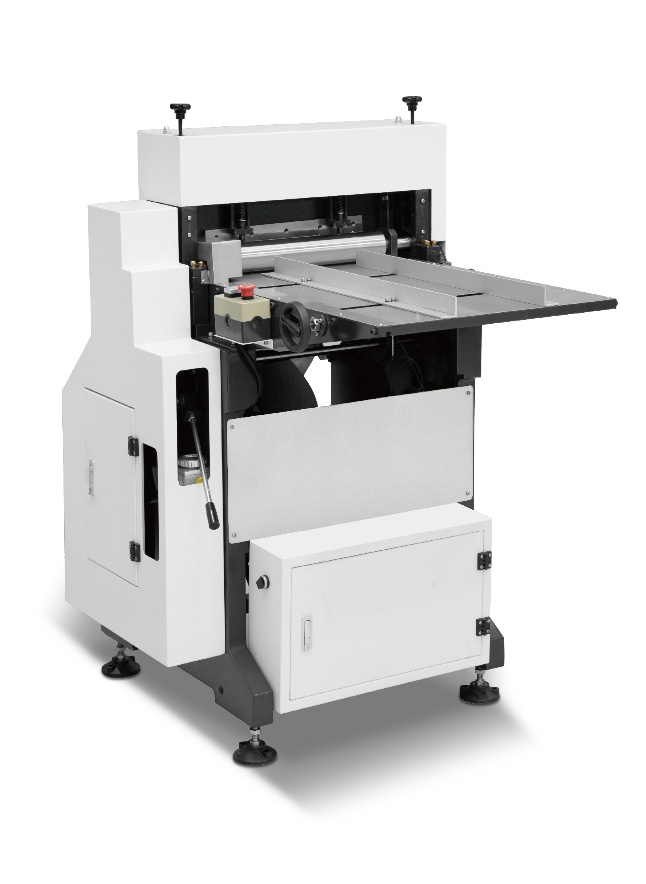

ZX450 Spine cutter
(Auxiliary Equipment 2)
It is specialized equipment in hardcover books. It is characterized by good construction, easy operation, neat incision, high precision and efficiency etc. It is applied to cut spine of the hardcover books.
1. The single-chip electromagnetic clutch, stable work, easy to adjust
2. The concentrated lubrication system, easy to maintain
3. Its appearance is beautiful in design, safety cover accord with European CE standard
| Cardboard width | 450mm (Max.) |
| Spine width | 7-45mm |
| Cardboard thickness | 1-3mm |
| Cutting speed | 180times/min |
| Motor power | 1.1kw/380v 3phase |
| Machine weight | 580Kg |
| Machine dimension | L1130×W1000×H1360mm |
