CM540S Automatic Lining Machine

Short Description:

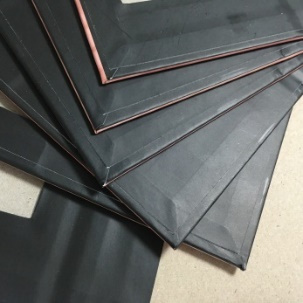

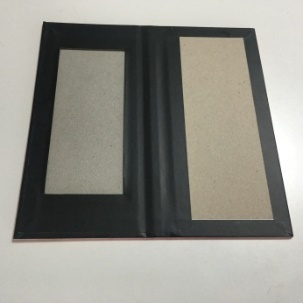

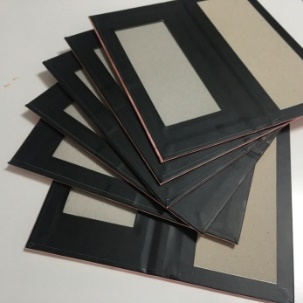

Automatic lining machine is a modified model from automatic case maker which is specially designed for lining inner paper of cases. It is professional machine which could be used to line inner paper for book covers, calendar, lever arch file, game boards, and packages cases.

Send email to us

Product Detail

Product Video

Features

1. Automatic paper feeder and gluer.

2. Cardboard stacker and bottom sucking type feeder.

3. Servo and sensor positioning device.

4. Glue circulation system.

5. Rubber rollers are used to flatten the case, which ensures the quality.

6. With friendly HMI, all troubles will be displayed on the computer.

7. Integrated cover is designed according to the European CE Standards, featuring in safety and humanity.

8. Optional device: glue viscosity meter, soft spine device, Servo senor positioning device

Technical Parameters

No.	Model	AFM540S

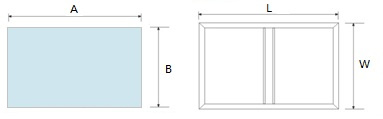

1	Paper size (A×B)	MIN: 90×190mm MAX: 540×1000mm
2	Paper thickness	100~200g/m²
3	Cardboard thickness (T)	1~3mm
4	Finished product size (W×L)	MAX: 540×1000mm MIN: 100×200mm
5	Max quantity of cardboard	1pieces
6	Precision	±0.30mm
7	Production speed	≦38sheets/min
8	Motor power	4kw/380v 3phase
9	Heater power	6kw
10	Air Supply	30L/min 0.6Mpa
11	Machine weight	2200kg

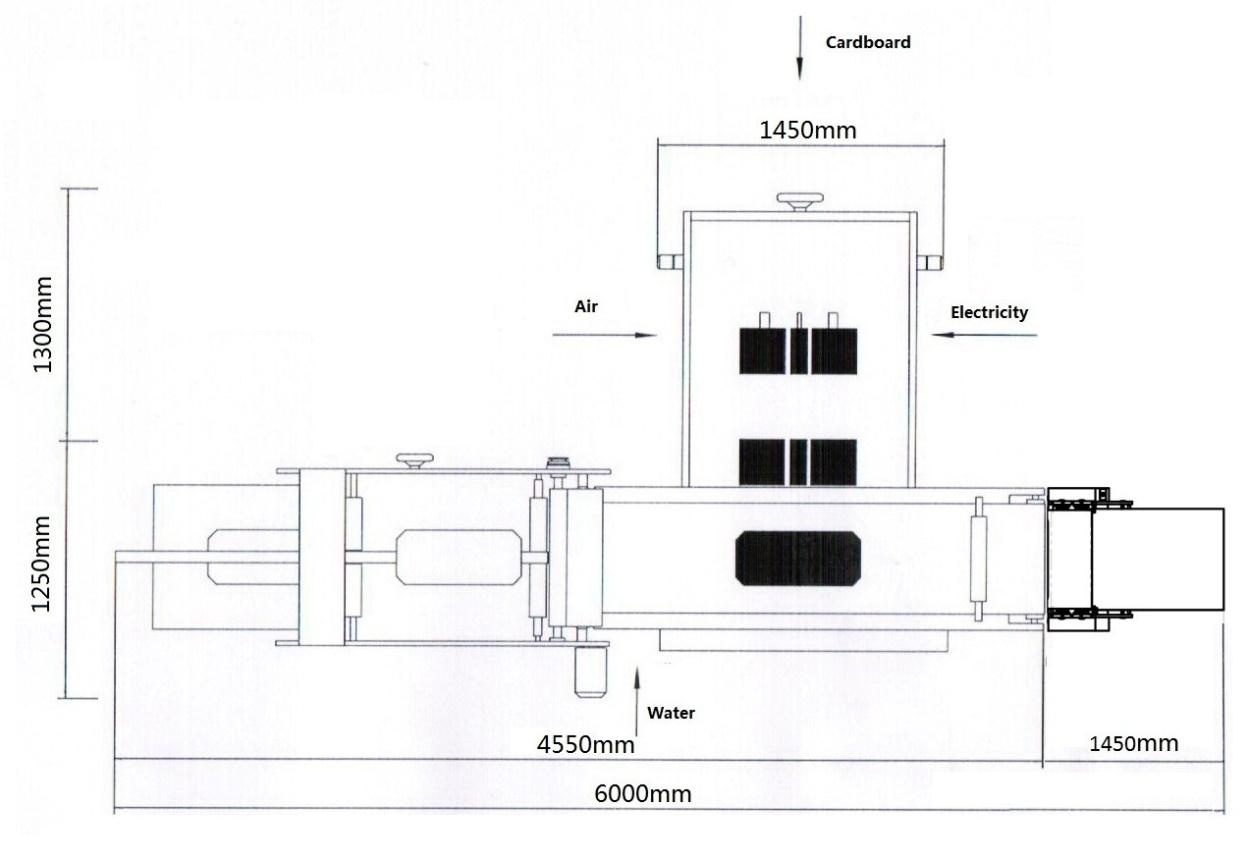

12	Machine dimension(L×W×H)	L6000×W2300×H1550mm

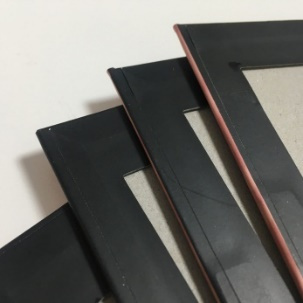

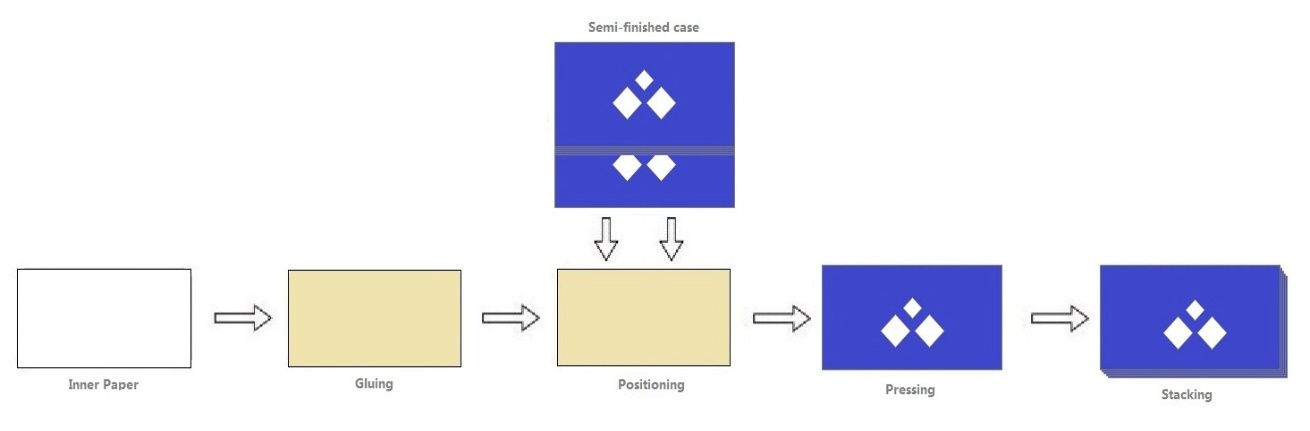

Remark

1. The Maximum and Minimum sizes of cases are subjected to the size and the quality of the paper.

2. The production speed depends on the size of cases.

3. Air compressor isn't included

Parts Details

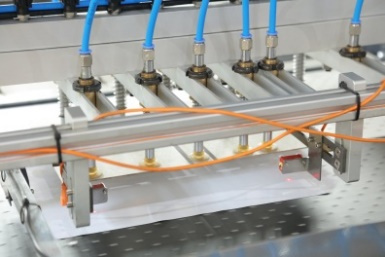

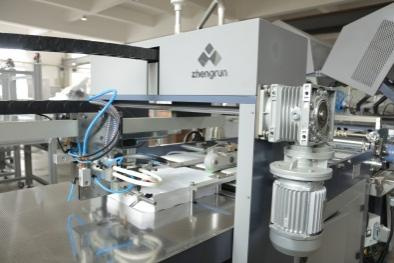

	Pneumatic paper feederNovel design, simple construction, convenient operation, and easy to maintenance.

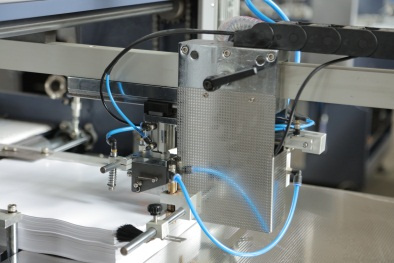

	Sensor Positioning device(Optional)Servo and sensor positioning device improves the precision. (+/-0.3mm)

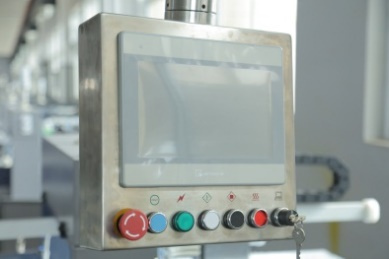

	All icons control panel Friendly-designed all icons control panel, easy to understand and operate.
	New Case stacker (Optional)The case is sucked from the stacker who reduces the surface scratches. Non-stop, which ensure the production capacity.

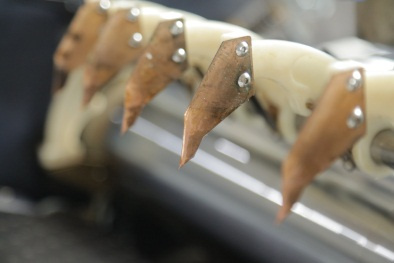

	Line-touch designed copper scraperThe copper scraper cooperates with the glue roller by line-touch design which makes the scraper more durable.

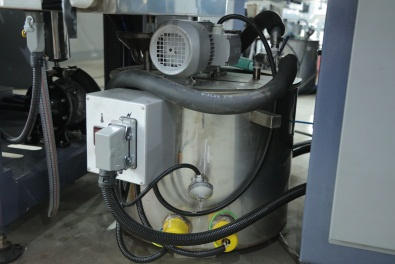

	New glue pumpDiaphragm pump, driven by compressed air, can use for both hot melt glue and cold glue.

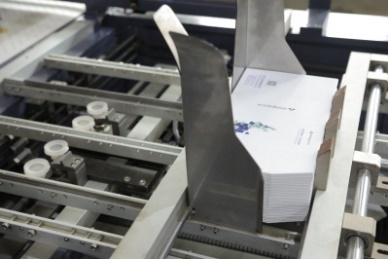

	New paper stacker520mm in height, More papers each time, reduce the stop time.

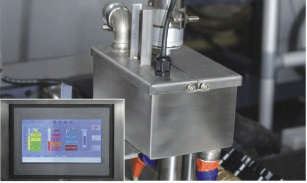

	Glue viscosity meter (Optional)Auto glue viscosity meter efficiently adjusts the glue stickiness which ensures the quality of finished products.
