SGZ-UI 1040/1200Z-A Automatic Coating Machine

Short Description:

Max. Sheet Size: 1040*1040mm; 1040*1200mm.

Max. Speed: 8000sph


Product Detail

Product Video

Technical Data

Max. sheet size 1040*1040mm 1040*1200mm
Min. sheet size 307*420mm 307*420mm
No.× UV lamp 3× 8kw 3× 9.75kw
No.× IR lamp 18× 1.5kw 18× 1.8kw
Paper weight 80-450gsm 80-450gsm
Max. speed 8000sph 8000sph
Weight 6 t 6.5 t
Overall dimensions 10800*1930*2130mm 10800*2030*2130mm

Machine Components

1, Automatic feeding section

2, Coating section

3, Far-infrared hot wind system

4, UV curing section

5, Automatic delivery section

Parts Details

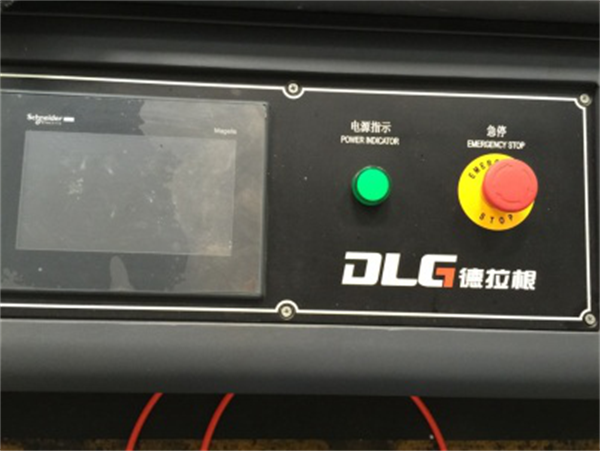

dasf

PLC+Button control

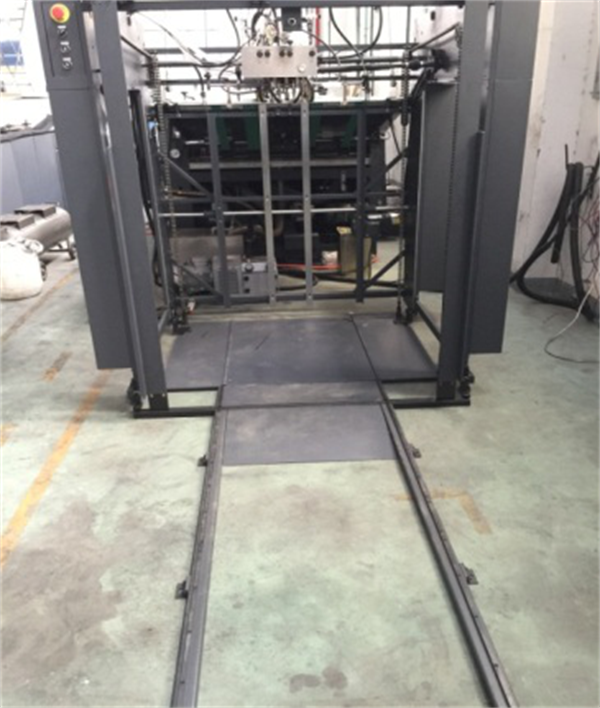

dsafd

Auto Feeder with Pre-pile for easy clean and maintenance

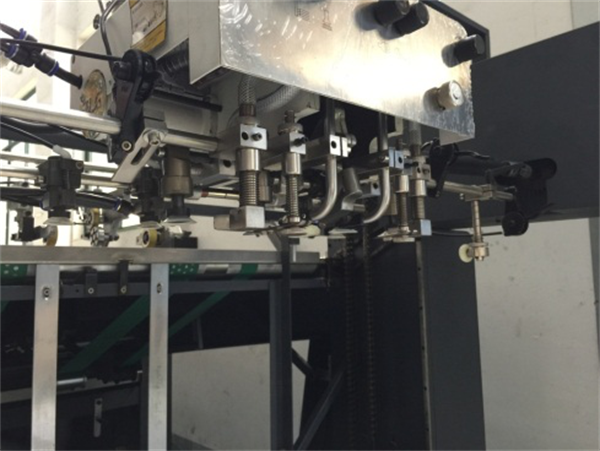

csdv

Feeder with four suction and four feeding

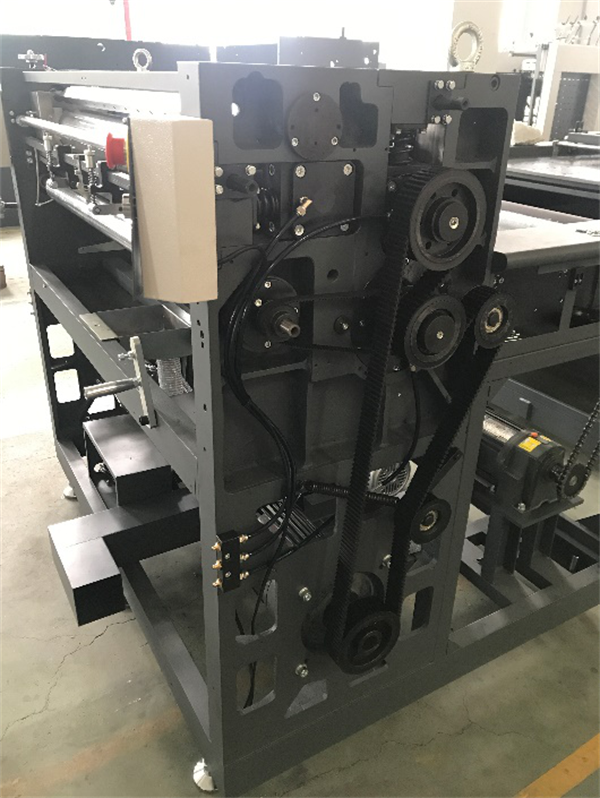

cdsgh

one piece cast varnish unit, high-speed running

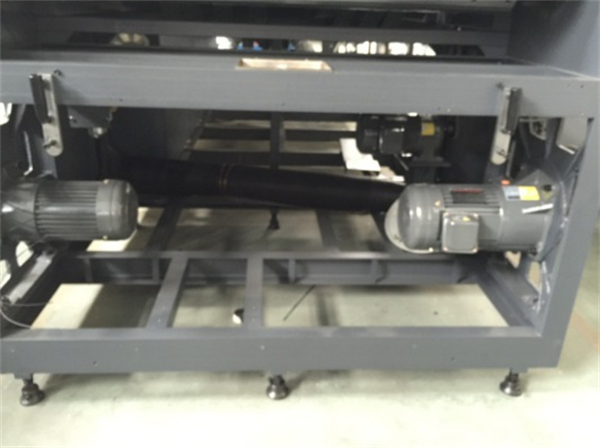

asfsd

rubber roller with USA rubber material, long lifespan and stable quality

closed organic glass cover to avoid dust and volatilizationOptional for matt varnish

b

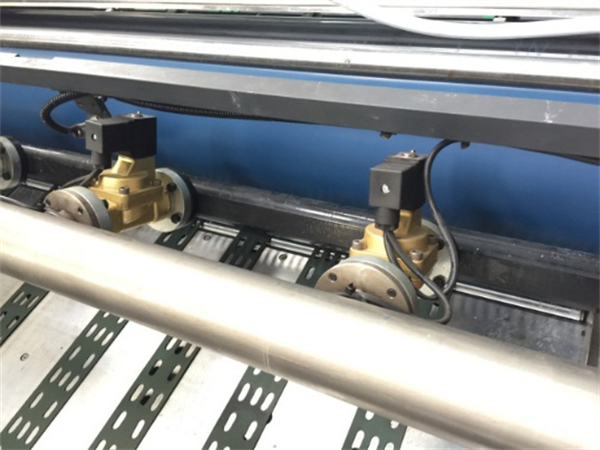

air knife unit, used for thin paper above 80gsm

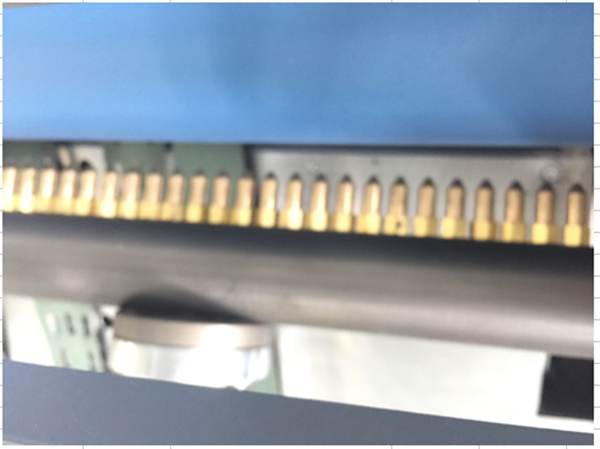

fvkl

with pneumatic parts to ensure no error within five million times action

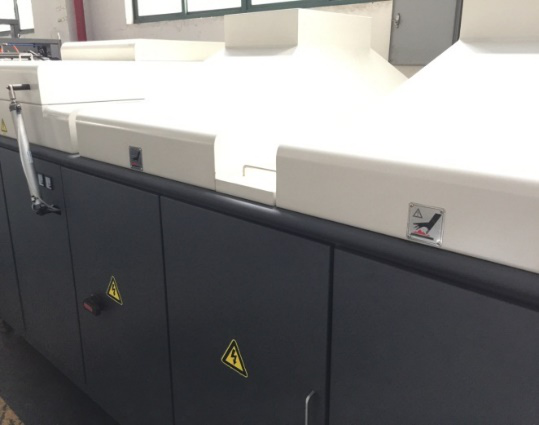

dsbf

Special IR hot wind drying system with fast and exhaustive drying

cd

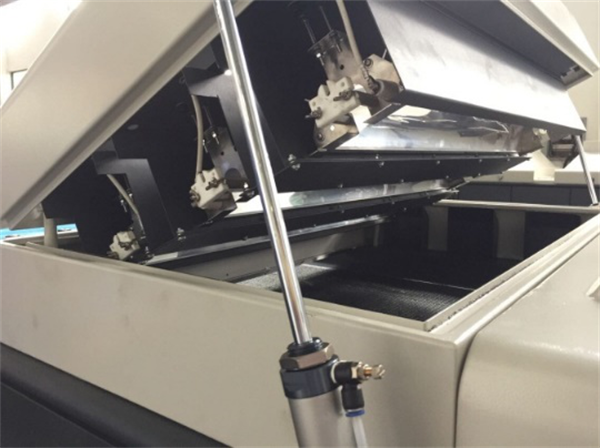

Open-type pneumatic lifting UV curing box with ease change

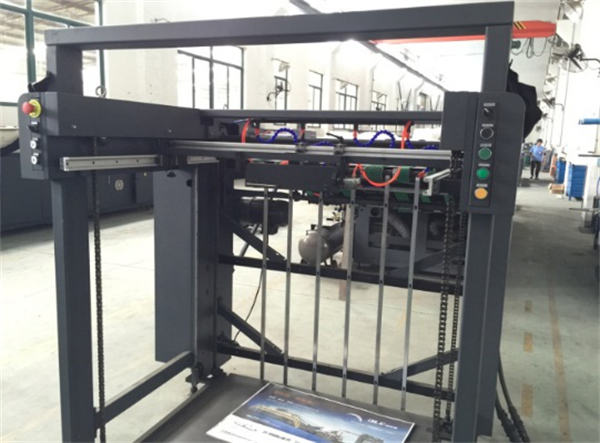

vbf

Automatic delivery part which could set pneumatic jogging times according to paper weight



Main Component for Coating Machine

No.

Name

Brand

Origin

1

Drive Reduction motor

ZHIBAO

China

2

Lift motor

LICHAO

China

3

reduction motor

JIACHENG

China

4

Feeder head

RUNZE

China

5

Feeding belt

HBSIT

Swiss

6

Centrifugal fan

BEDEER

China

7

Axial flow fan

BEIDEER

China

8

Air blower

MANDA

China

9

Triangular belt

SANLISHI

China

10

chain

DUPAI

China

11

Synchronous belt

FULONG

China

12

Bearing

RENBEN

China

13

Air cylinder

AIRTAC

China Taiwan

14

Magnetic valve

AIRTAC

China Taiwan

15

Teflon belt

AOLONG

China

16

IR lamp

XINGYONG

China

17

UV lamp

XINGHAN

China

18

HMI

DELTA

China Taiwan

19

PLC

DELTA

China Taiwan

20

Inverter

DELTA

China Taiwan

21

I/O module

DELTA

China Taiwan

22

Moulded case circuit breaker

HUANYU

China

23

A.C. contactor

HUANYU

China

24

Motor protector

SCHNEIDER

France

25

Middle relay

OMRON

Japan

26

Solid relay

OMRON

Japan

27

Sensor switch

OMRON

Japan

28

Proximity switch

BAUMER

Japan

29

Travel switch

CNTD

China

30

Button

JINDING

China

31

Air tank

           RIABO

China

32

Vacuum pump

          TONGYOU

China
