SGJ-UI 1100 /1300 Automatic UV Spot Coating Machine
|
Model |
SGJ-UI1100 |
SGJ-UI1300 |
|
Max sheet size |
800*1080mm |
800*1280mm |
|
Min sheet size |
340*400mm |
340*400mm |
|
Max coating size |
760*1060mm |
800*1260mm |
|
Paper weight |
80-600g/m² |
80-600g/m² |
|
Max speed（UV coating） |
5000sph |
5000sph |
|
Total electric consumption |
45kw |
45kw |
|
UV lamp （NO.×power） |
3*9.75kw |
3*9.75kw |
|
IR lamp（optional，NO.×power） |
15*1.5kw |
15*1.5kw |
|
weight |
8.4T |
8.4T |
|
Overall Dimensions |
7600*2600*1950mm |
7600*2600*1950mm |
| Note: the speed is based on the paper size and paper weight | ||
Optional 1 With non-stop feeding, delivery, pre-pile system
Optional 2 With 2 IR drying section and pre-pile system picture (To improve coating speed)
| Model |
1100 |
1300 |
|
Gripper depth （mm） |
5-8 |
5-8 |
|
Blanket size (mm) |
1000×1100 |
1000×1300 |
|
Blanket thickness (mm) |
1.9 |
1.9 |
|
Max. Height of feeding table
|
1300 |
1300 |
|
Max. Height of delivery table
|
1050 |
1050 |
|
Total consumption总功率（KW） |
73 |
78 |
|
Standard Overall dimensions L*W*H(standard configuration)
|
7602×2850×2150 |
7602×3050×2150 |
|
Non-stop feeding&delivery with pre-pile Overall dimensions L*W*H(standard configuration) |
9801×2850×2150 |
9801×3050×2150 |
|
Overall dimensions L*W*H with 2 IR |
11121×2850×2150 |
11121×3050×2150 |
|
Standard weight |
8.4 |
9.3 |
|
Non-stop feeding&delivery weight |
8.5 |
9.4 |
|
2 IR sections weight |
9.6 |
10.0 |

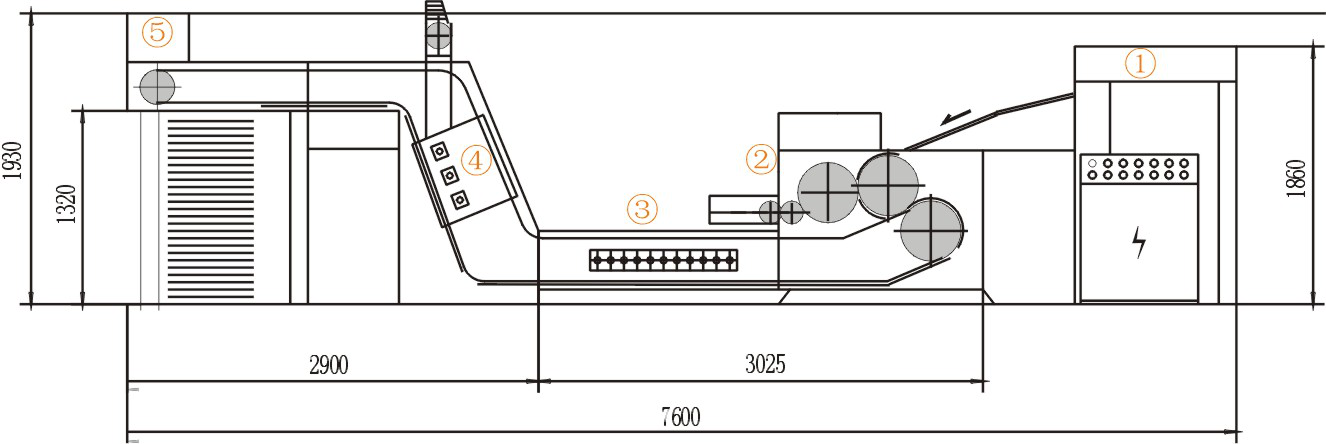

〔1〕Feeding Section
〔2〕Varnishing Section
〔3〕IR Drying Section
〔4〕UV Curing Section
〔5〕Delivery Section
1.4 the production place of main parts
〔1〕the main electrical components are from Schneider; the PLC from is optional.
〔2〕main motor：the motor is from China , or from SIEMENS
〔3〕the belt：from Switzerland HABASIT.
〔4〕air compressor：made in China.
