SD-1050W High Speed UV Spot and Overall Coating Machine
| MODEL | SD-1050W |
| Max. Sheet Size | 730mm×1050mm |
| Min. Sheet Size | 310mm×406mm |
| Max. Coating Area | 720mm×1040mm |
| Sheet Thickness | 80~500gsm |
| Max. Coating Speed | Up to 9000 sheets/hour (Depending on sheet weight, size and quality) |
| Power Required | 44Kw (solvent base) /40Kw (water base) |

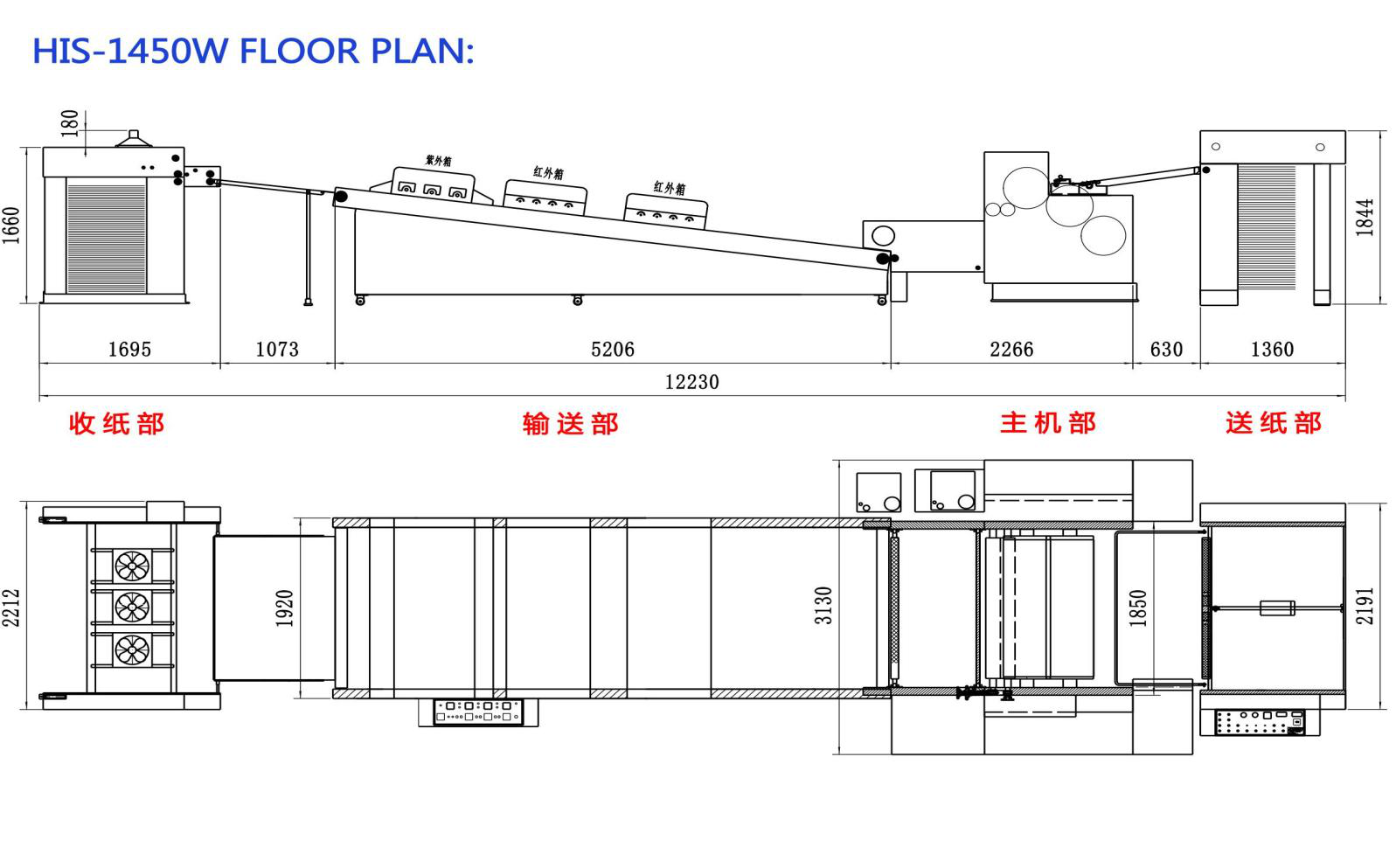

| Dimension (L×W×H) | 10460mm×2725mm×1930mm |
| Weight | 8000Kgs |
 |
Automatic Feeder:
High speed feeder with four sucking and four forwarding suckers can feed sheet smoothly. |
 |
Sheet Transferring Unit:
Upper swing sheet transferring method can transfer sheet smoothly at high speed to pressure cylinder exactly.
|
 |
Varnish Supply:
Steel roller and rubber roller with metering roller reversing and doctor blade design control varnish consumption and volume to meet the demand of products and operate easily.(Varnish consumption and volume are determined by LPI of ceramic anilox roller. |
 |
Transferring Unit:
After sheet is transferred from pressure cylinder to gripper, air volume blowing for paper can support and reverse sheet smoothly, which can prevent sheet surface from being scratched. |
 |
Conveying Unit:
Upper and lower conveying belt can form thin sheet to be curved for smoothly delivery. |
 |
Sheet Delivery:
Automatic pneumatic patting sheet controlled by photoelectric detecting sensor make sheet pile fall automatically and collect sheet neatly. Electronic control can take out sheet sample safely and quickly for inspecting. |
