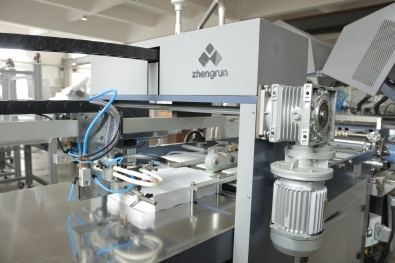

FD-AFM540S Automatic Lining Machine

Short Description:

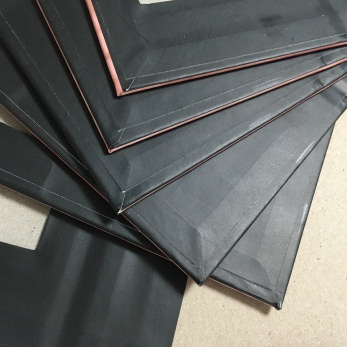

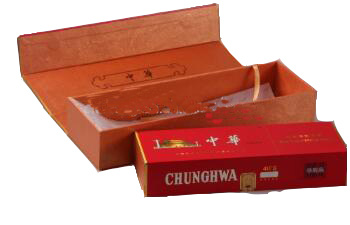

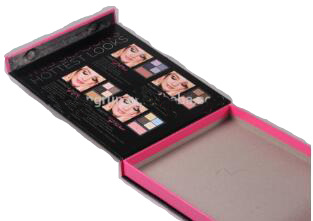

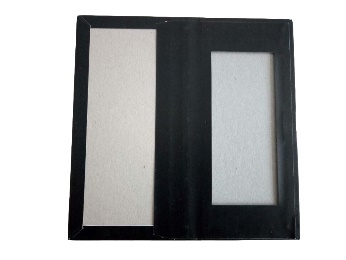

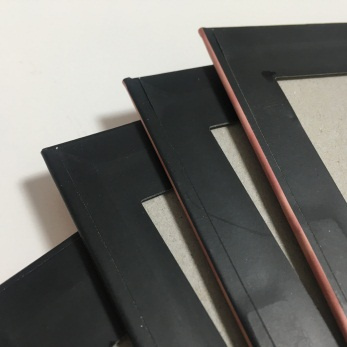

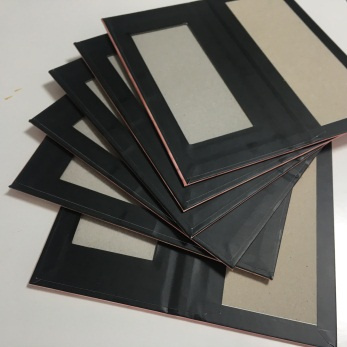

Automatic lining machine is a modified model from automatic case maker which is specially designed for lining inner paper of cases. It is professional machine which could be used to line inner paper for book covers, calendar, lever arch file, game boards, and packages cases.

Send email to us

Product Detail

Technical Parameters

	Model	AFM540S
1	Paper size (A×B)	MIN: 90×190mm MAX: 540×1000mm
2	Paper thickness	100~200g/m²
3	Cardboard thickness (T)	0.8~4mm

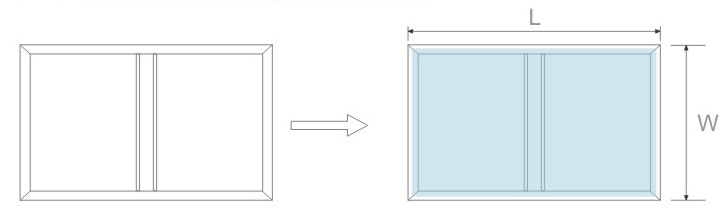

4	Finished product size (W×L)	MAX: 540×1000mm MIN: 100×200mm
5	Max quantity of cardboard	1pieces
6	Precision	±0.10mm
7	Production speed	≦36pcs/min
8	Motor power	4kw/380v 3phase
9	Heater power	6kw
10	Air Supply	10L/min 0.6Mpa
11	Machine weight	2200kg
12	Machine dimension(L×W×H)	L5600×W1700×H1860mm

Remark

	Pneumatic paper feederNovel design, simple construction, convenient operation, and easy to maintenance.

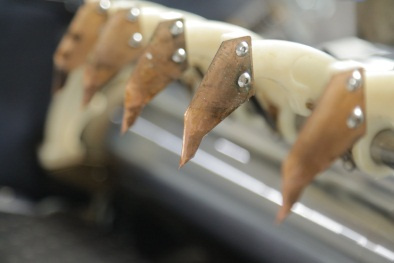

	Line-touch designed copper scraperThe copper scraper cooperates with the glue roller by line-touch design which makes the scraper more durable.

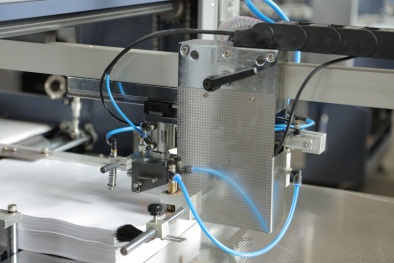

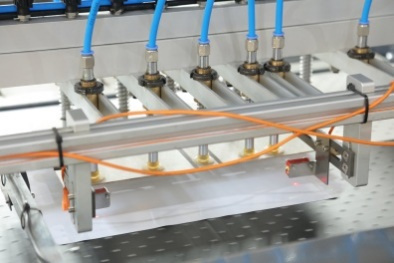

	Sensor Positioning device (Optional) Servo and sensor positioning device improves the precision. (+/-0.3mm)

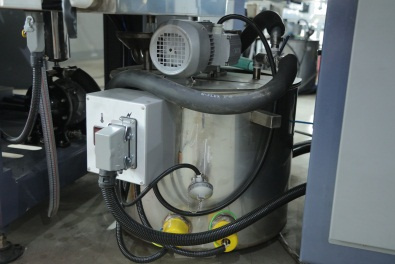

	New glue pump Diaphragm pump, driven by compressed air, can use for both hot melt glue and cold glue.

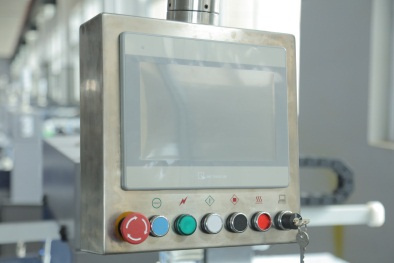

	All icons control panelFriendly-designed all icons control panel, easy to understand and operate.

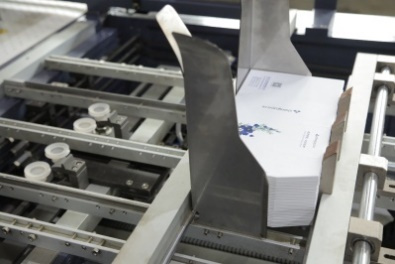

	New paper stacker520mm in height, More papers each time, reduce the stop time.
	New Case stackerThe case is sucked from the stacker who reduces the surface scratches. Non-stop, which ensure the production capacity.

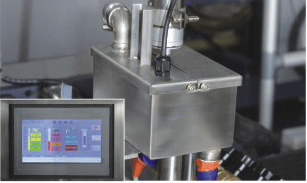

	Glue viscosity meter (Optional)Auto glue viscosity meter efficiently adjusts the glue stickiness which ensures the quality of finished products.
