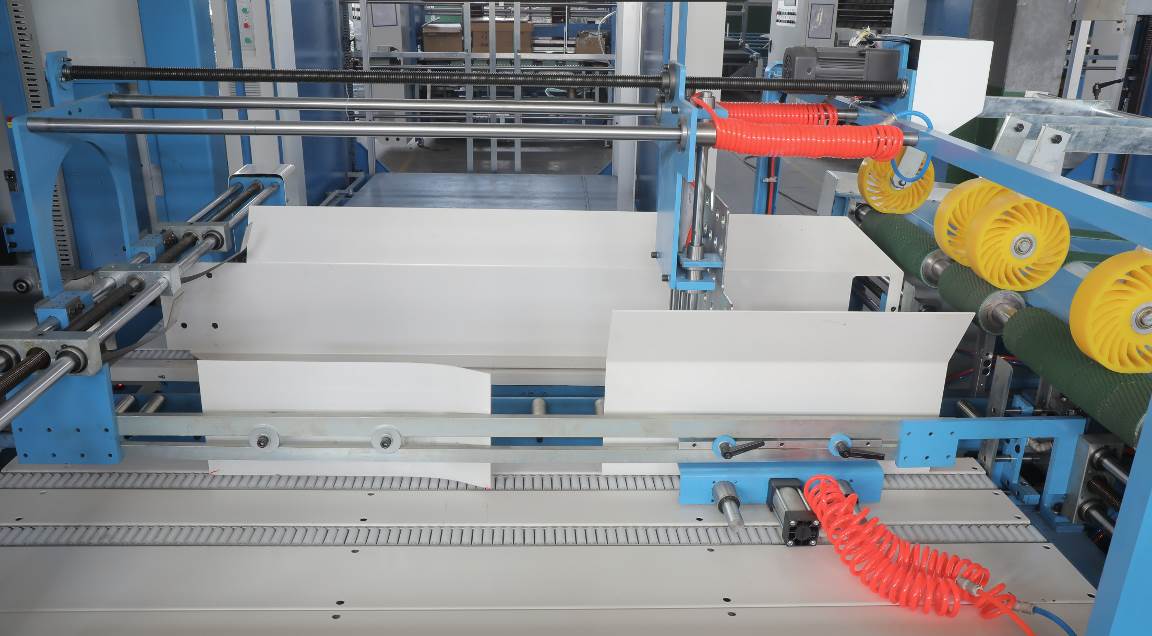

Automatic flip flop stacker for flute laminator EUSH 1450/1650
EUSH series flip-flop stacker is an auxiliary product of the flute laminating machine which is composed of speed-up table, counter and stacker, turning table and delivery table. Wherein, laminated board accelerate in speed-up table and collect in stacker according to certain height. Turning table will finish the turning of board and send into delivery unit. It has the advantages of flattening and affixing paper to significantly improve the efficiency of board delivery and reduce the amount of operator.
EUSH Series flip-flop equip preset function which can orient side apron and layer according to board size which you set in touch screen automatically
|
Model |
EUSH 1450 |
EUSH 1650 |
|
Max. paper size |
1450*1450mm |
1650*1650mm |
|
Min. paper size |
450*550mm |
450*550mm |
|
Speed |
5000-10000pcs/h |
|
|
Power |
8kw |
11kw |

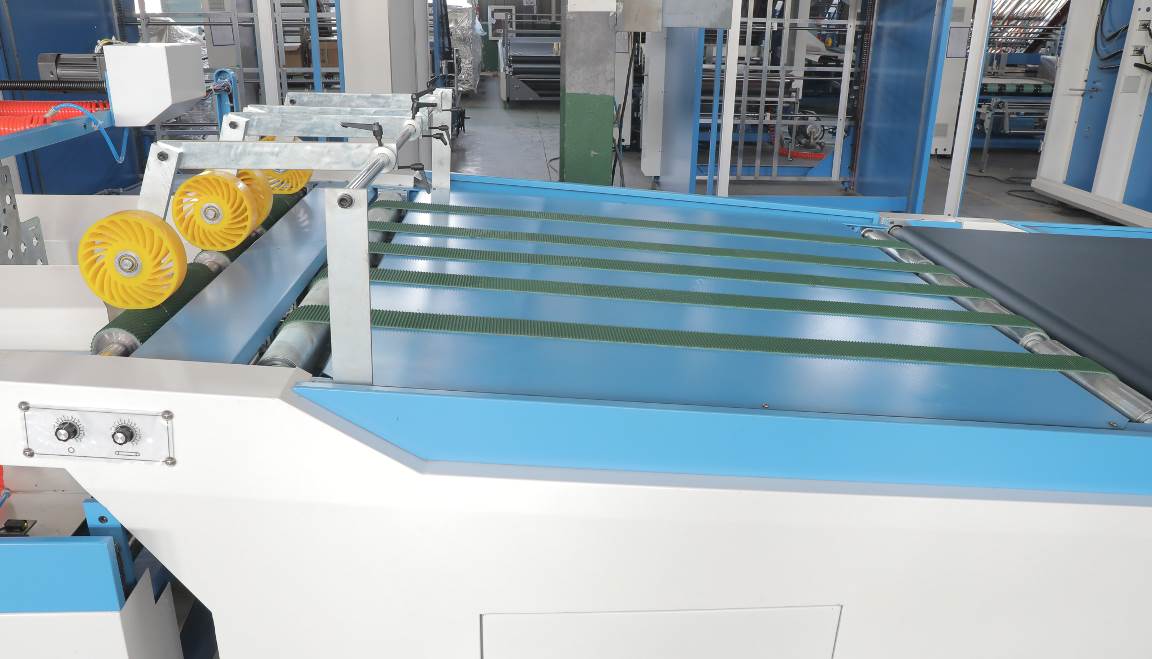

1.Speed-up Unit

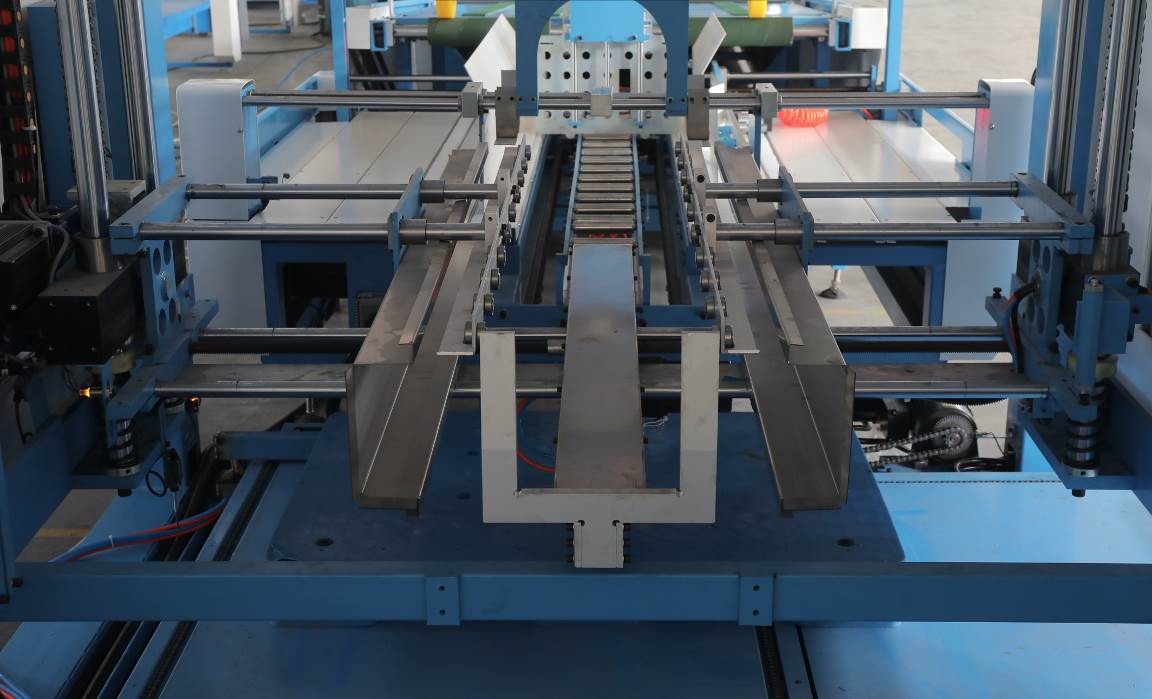

2.Count and Stacker

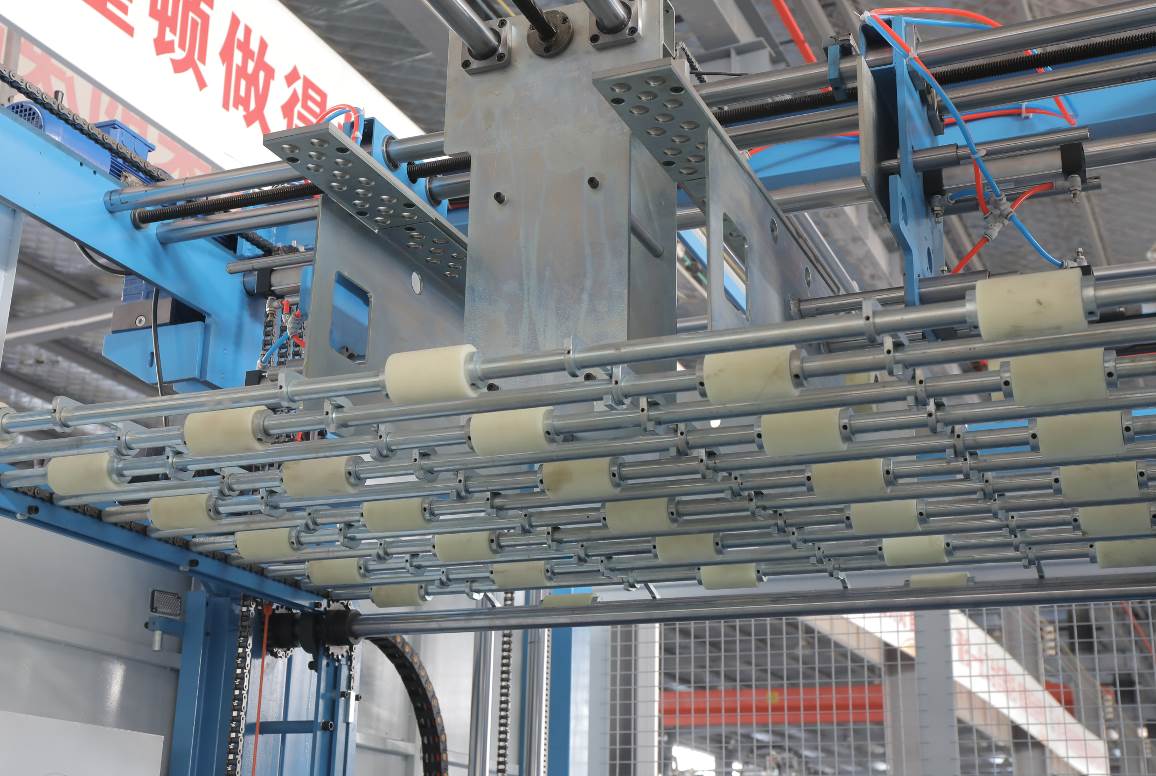

3.Turning Device driven by servo motor

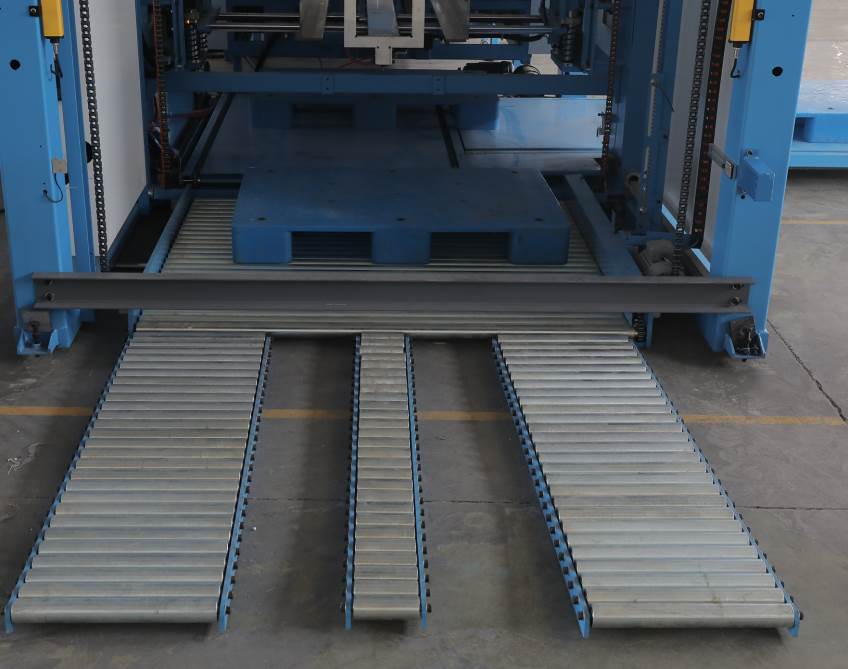

4.Non-stop Delivery

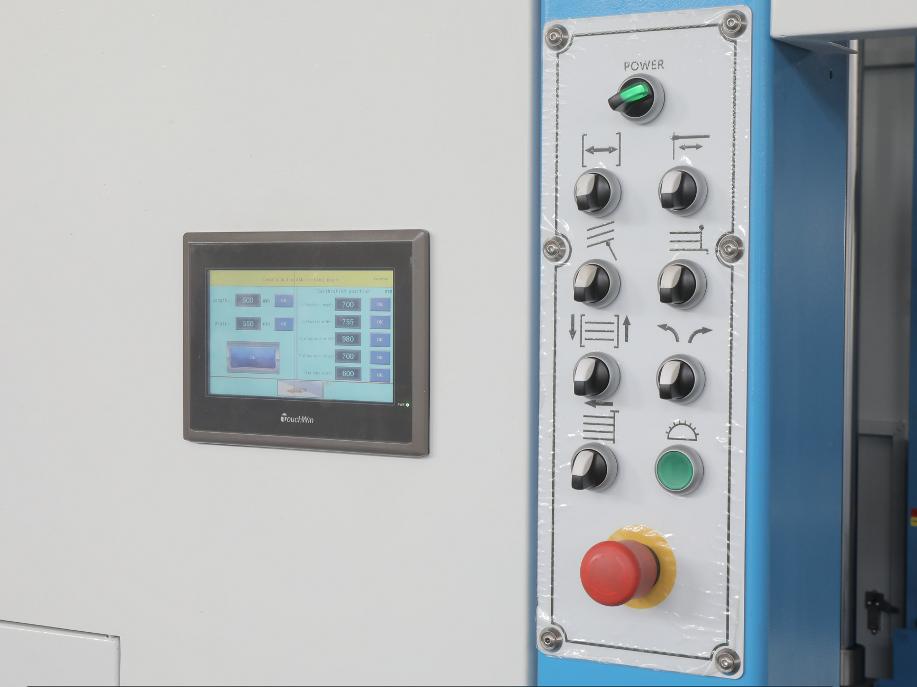

5.Touch Screen which can set board size and finish orientation automatically.
OPTIONS:
1.Automatic Exit

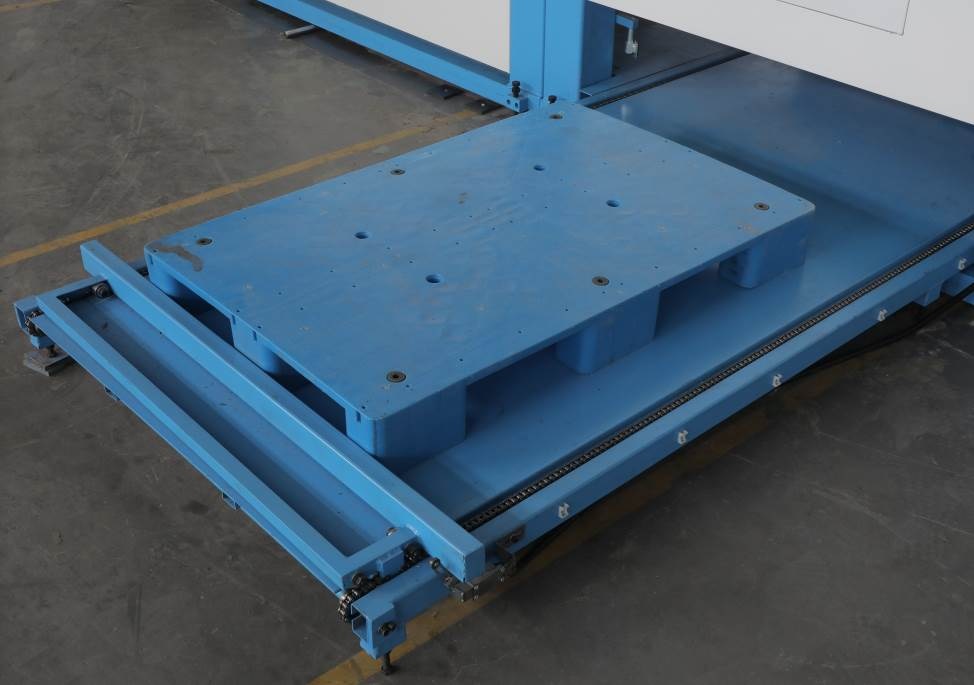

2.Semi-Auto Tray loader
Shaftless servo feeder is utilized for extra long sheet at flexible motion.

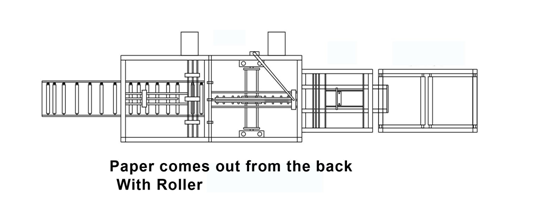

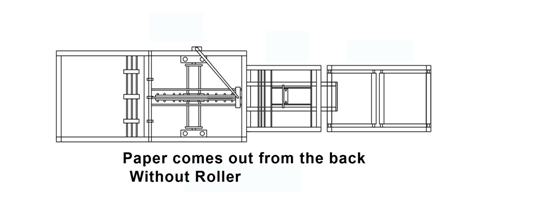

Operating principle:
