Automatic round rope paper handle pasting machine

Short Description:

This machine is mainly supporting semi-automatic paper bag machines. It can produce the round rope handle on line ,and stick the handle on the bag on line too, which can be attached onto the paper bag without handles in further production and make it into paper handbags.


Product Detail

Technical data

Overall dimension

L6000*W2450*H1700mm

Motor brand

Longbang geared motor

Total power

380V,10KW,50HZ

Servo motor brand

Siemens

Servo motor power

750W one group

PIC programming brand

Siemens

Hot melt machine brand

JKAIOL

Mechanical arm

DELTA Taiwan

Handle length

130、152mm、160、170、190mm

Paper width

40mm

Paper rope length

360mm

Paper rope height

140mm

Paper Gram Weight

80-140g/㎡

Bag width

250-400mm

Bag height

250-400mm

Top opening size over 130mm

(Bag Width minus the width of folding )

Production speed

33-43pcs/min

Accessory List

Part Name

Qty

Unit

SLIDDER

2

SETS

MOULD

2

PCS

CHAIN

1

SETS

GLUE WHEELER

2

PCS

ROUND KNIFE

1

PCS

SQUARE KNIFE

2

PCS

CUTTER WHEEL

2

PCS

TOOL BOX

1

SETS

Machine packaging dimensions

Name

Overall dimension(With the cases)

Gross Weight

MAIN MACHINE

2300*1300*1950mm

1500kg

MATERIAL HOLDING FRAME

+ Control box

2600*850*1750mm

590kg

Pasting unit

2350*1300*1750mm

1170kg

Introduction

This machine is mainly supporting semi-automatic paper bag machines. It can produce the round rope handle on line ,and stick the handle on the bag on line too, which can be attached onto the paper bag without handles in further production and make it into paper handbags. This machine takes two narrow paper rolls and one paper rope as raw material, sticks paper belts and paper rope together, which will be cut off gradually to form paper handles. In addition, the machine also has automatic counting and gluing functions, which can greatly improve the efficiency of subsequent processing operations of users.

product picture1

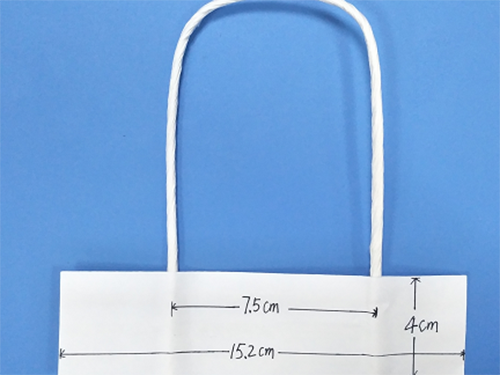

product picture2

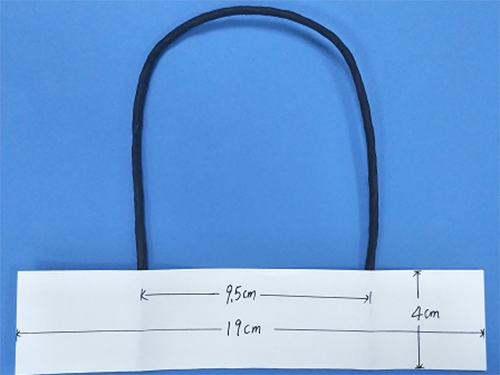

product picture3
