High Speed Laminating Machine With Italian Hot Knife Kmm-1050d Eco

Short Description:

Max. Sheet Size: 1050mm*1200mm

Min. Sheet Size: 320mm x 390mm

Max. Working Speed: 90m/min


Product Detail

Other product information

Video

Technical Parameters

Types of film OPP, PET, METALIC, NYLON, etc.
Max. Mechanical Speed 100m/min
Max. Working Speed 90m/min
Sheet size max 1050mm*1200mm
Sheet size min 320mm x 390mm
Paper weight 100-350g/sqm

Parts Details

Feeder

Feeding: Up & down pile facilities

Pile loading facilities: Yes

Dry suction and blowing pump

Automatic motorized loading platform with auto protection function

Gates: Yes (precise overlapping +/- 1.5mm)

Electronic overlap control

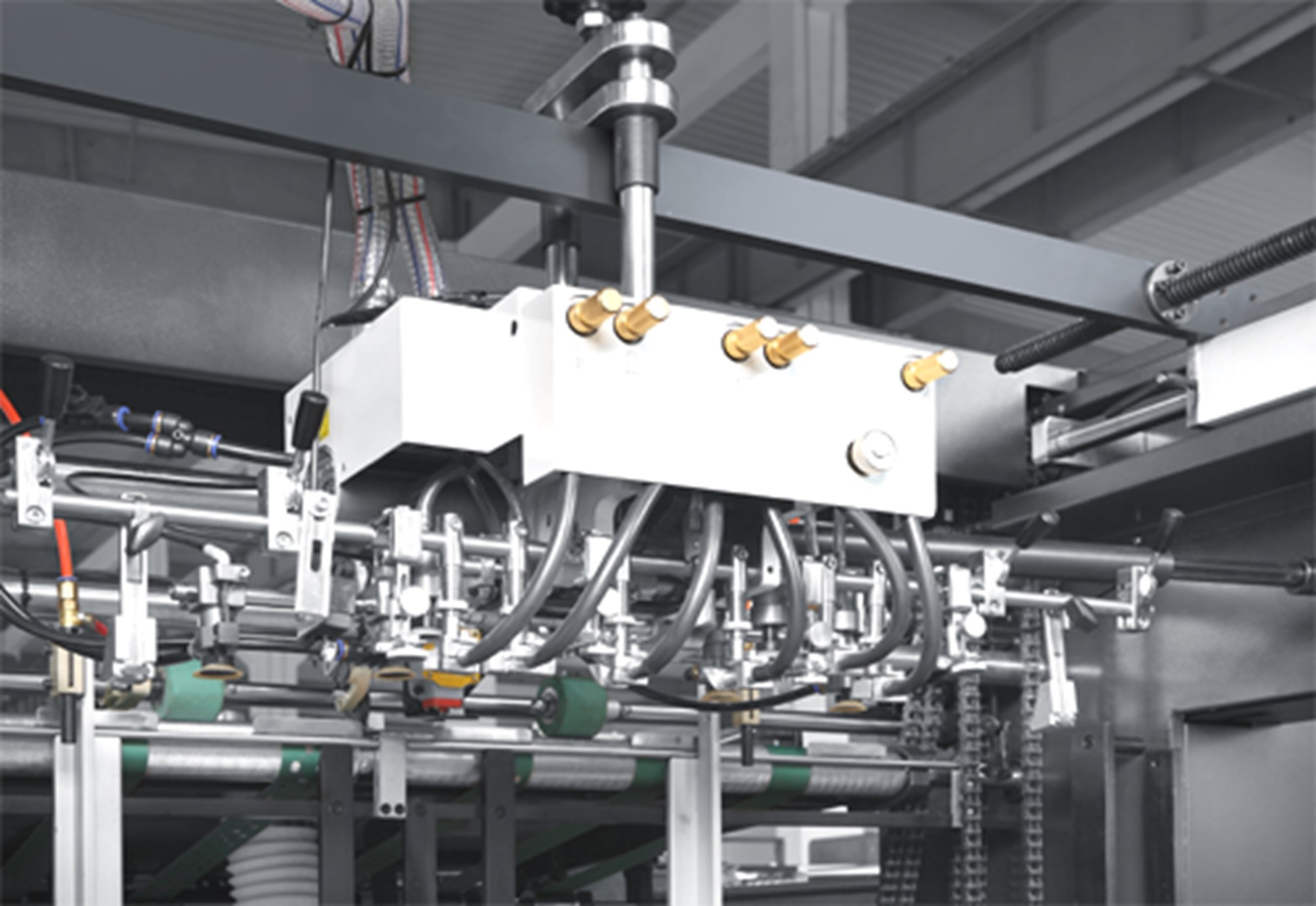

High Speed Laminating Machine With Italian Hot Knife Kmm-1050d Eco (2)

POWDER CLEANER (OPTIONAL)

Pressing roller: Yes

Electrical heating: Yes

Powder collector: Yes

LAMINATOR

Chromed double high-brightness coupling rollers.

Heating type: High accuracy external electromagnetic heating solution. No oil or water, safe and clean. Save up to 30% of electricity consumption compared to oil heating solution. Heating temperature stable and heat compensation fast.

Electronic temperature control: Surface temperature difference <1℃

Automatic film tension control

Air Shaft locking mechanism: Yes

10-inch touch screen, friendly interface

Film slitter and re-winder

Process control: single central panel for ease of operation

Teflon treatment on all gluing parts, greatly reducing time and difficulty of cleaning

High accuracy transport of paper

Automatic open/close of oven, easy for cleaning and maintenance

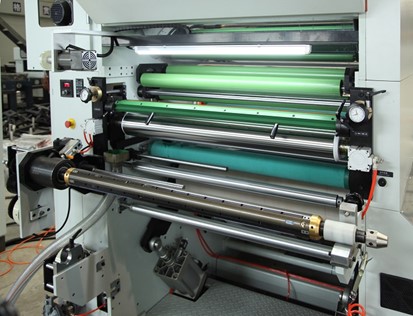

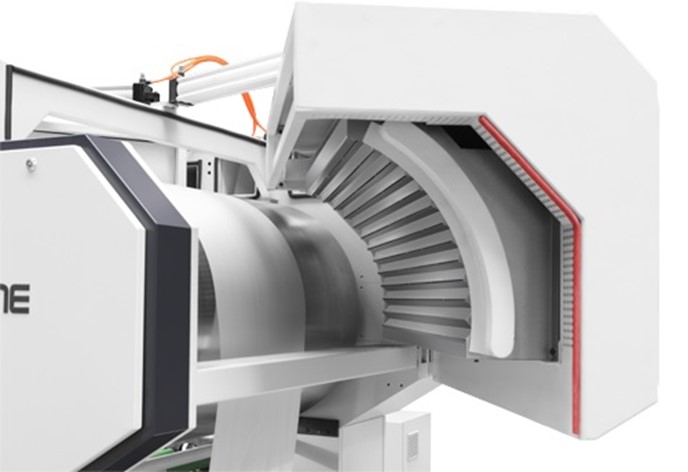

High Speed Laminating Machine With Italian Hot Knife Kmm-1050d Eco (3) High Speed Laminating Machine With Italian Hot Knife Kmm-1050d Eco (4)

SHEET SEPARATOR

Patented Italian hot knife separation technology for cutting PET, Metalic or Nylon film.

BAUMER laser sensor made in Switzerland, for accurately detecting hot knife cutting position and guaranteeing clean cutting edge.

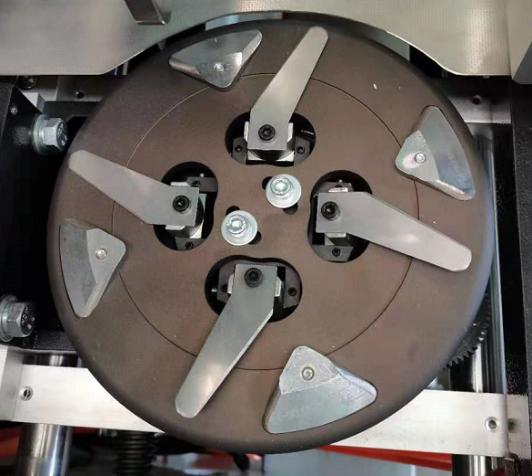

Perforating wheel

Rotary Knife

Fully automatic integrated snapping roll

Sheet blower

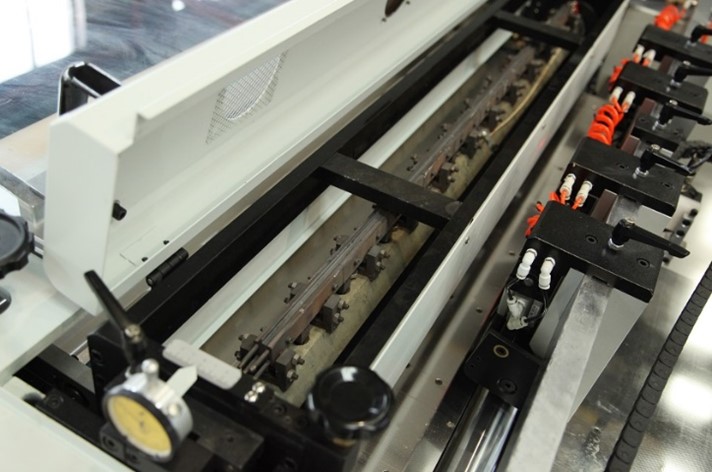

High Speed Laminating Machine With Italian Hot Knife Kmm-1050d Eco (5)asdada

STACKER

Automatic slow-down function when sheet is jammed in high speed

Pile loading: Pallet in feed

Pneumatic side pushers

Automatic motorized platform with auto protection function

Non-stop

Power

Voltage 380V-50 Hz

3 phases plus earth and neutral with a circuit breaker

Heating power 20Kw

Working power 40Kw

Overall power 80Kw

Air

Pressure: 6 bar or 90 psi

Volume: 450 liters per minute, 26 cfm air sec, air volume must be constant.

Incoming air: 10mm diameter pipe

Main Commercial Parts

KMM-1050D Eco Main Commercial Part List

No

Name

Brand

Note

1

Motion controller

Z-MOTION

 Parts11

TECHNOLOGY FROM ABB

2

Servo motor

INVT

  Parts1



3

Servo drive

INVT

  Parts2



4

Inverter

Schneider

 Parts6



5

Circuit breaker

Schneider

 Parts6



6

Contactor

Schneider

 Parts8



7

Switching power supply

Schneider

 Parts6



8

Control buttons

Schneider

 Parts7



9

Sensor

OMRON

 Parts3



10

Proximity switch

OMRON

 Parts4



11

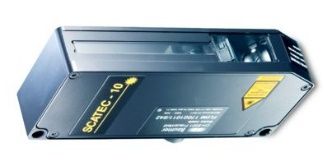

Laser Sensor

 Parts12

BAUMER

Parts14

MADE IN SWITZERLAND

12

Pneumatic parts

AIRTAC

 Parts5



13

Other bearings

C&U

 Parts13 Best brand in China

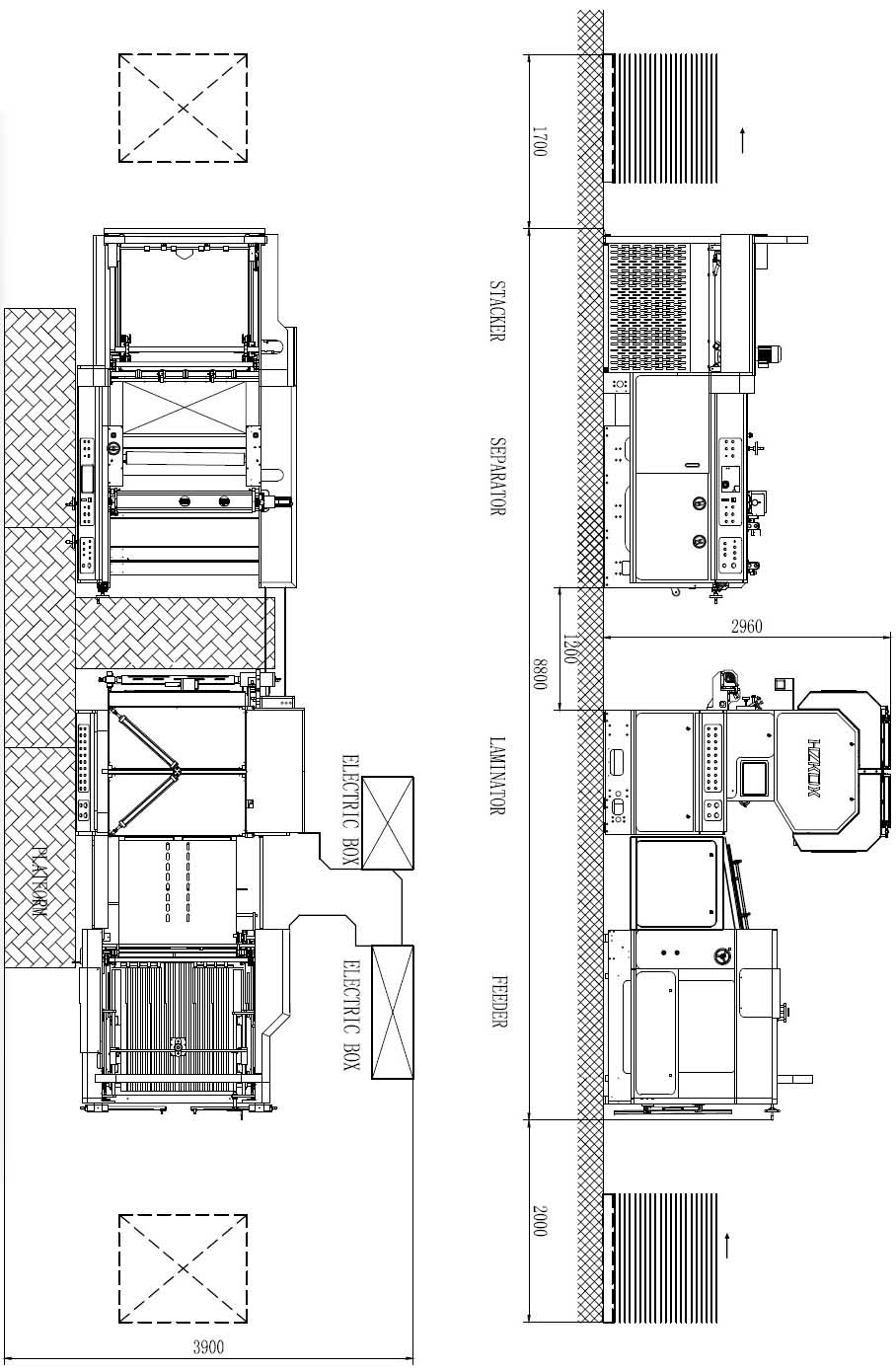

Layout
