FDC850 Roll Die Punching Machine

Short Description:

Max Paper Width 850mm

Cutting Precision 0.20mm

Paper Gram Weight 150-350g/㎡

Production Capacity 280-320times/min

FDC series automatic roll punching machine based on international advanced technology, it’s widely used in paper cup fan products. It adopts micro-computer, human-computer control interface, servo positioning, alternating current frequency converter, photoelectric correcting deviation system, centralized oil lubrication.

Send email to us

Product Detail

Specification

Model	FDC850
Max Paper Width	850mm
Cutting Precision	0.20mm
Paper Gram Weight	150-350g/㎡
Production Capacity	280-320times/min
Air Pressure Requirement	0.5Mpa
Air Pressure Consumption	0.25m³/min
Weight	3.5T
Max Roller Diameter	1500
Total Power	10KW
Dimension	3500x1700x1800mm

Configuration

1. It adopts micro-computer, human-computer control interface, servo positioning, and we make the wallboard, base much stronger than others, it gurantees that when the machine runs with 300 strokes/min, you won’t feel that machine is shaking.

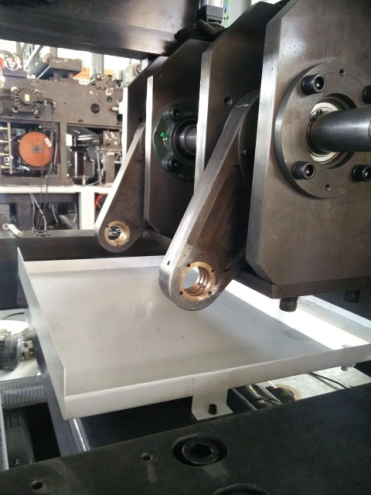

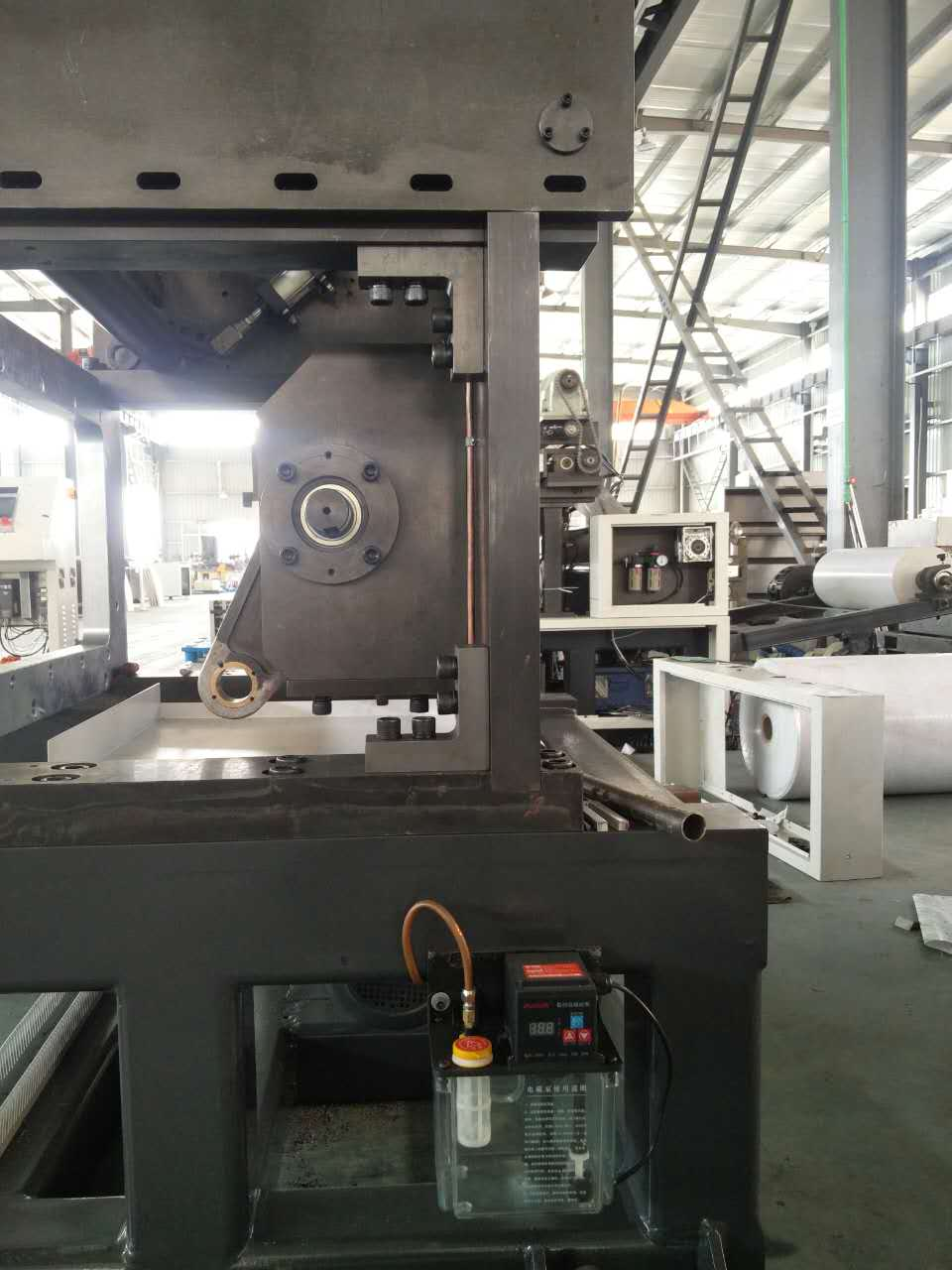

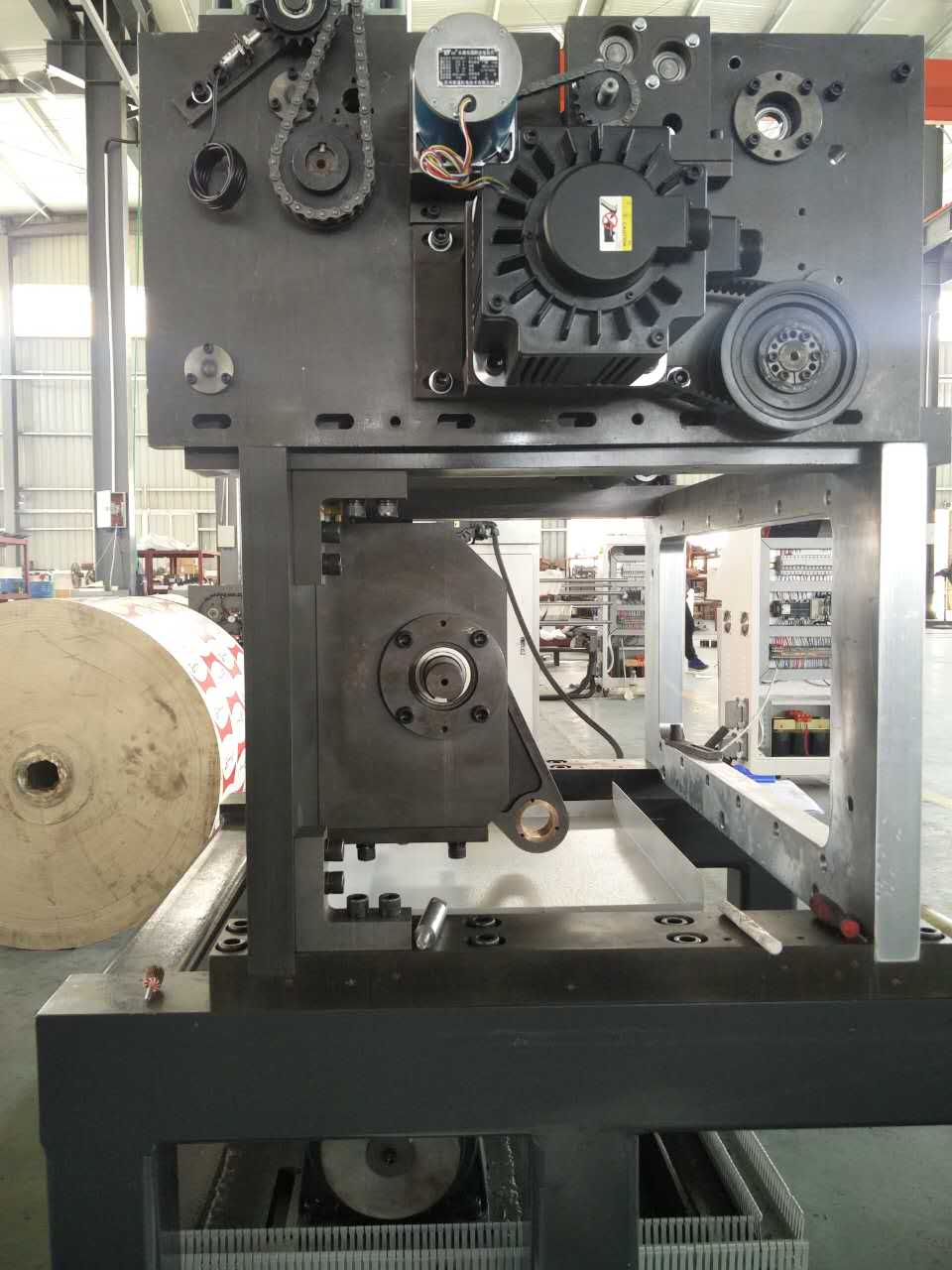

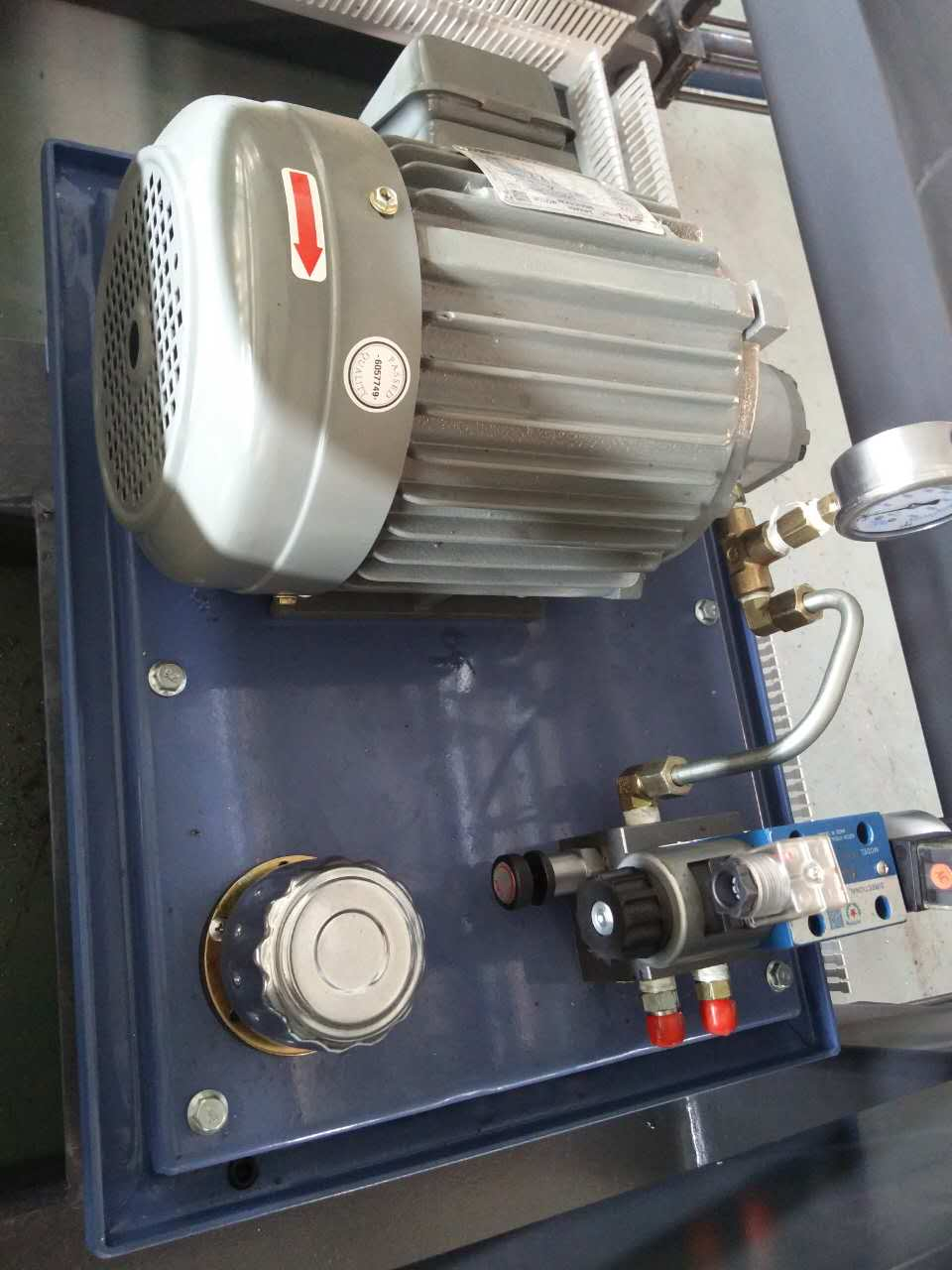

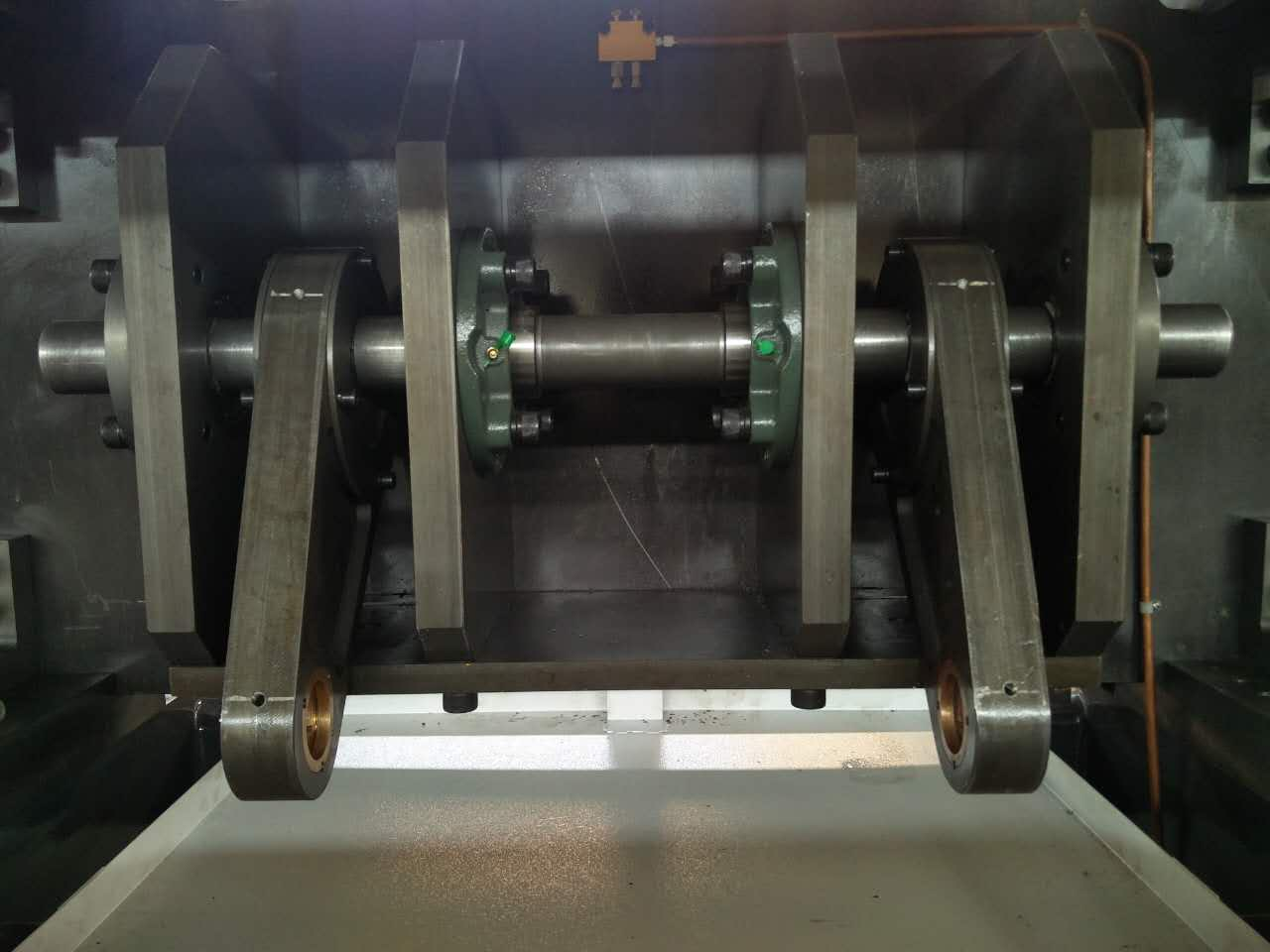

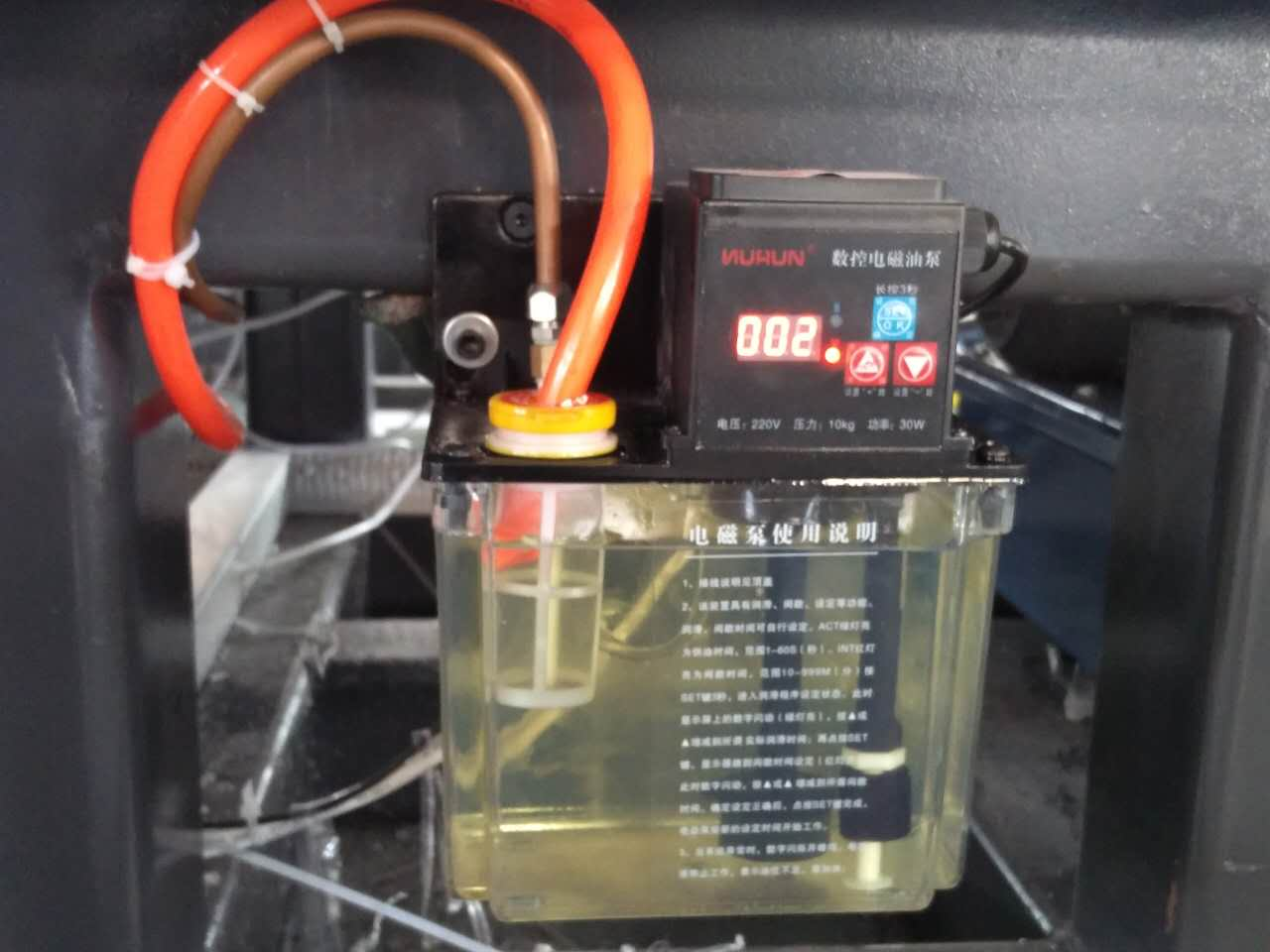

2.Lubri cation System: Adopts forced lubrication system to ensure main driving oil supply regularly and reduce friction and prolong the machine life, you could set it to lubricate one time every 10 minutes.

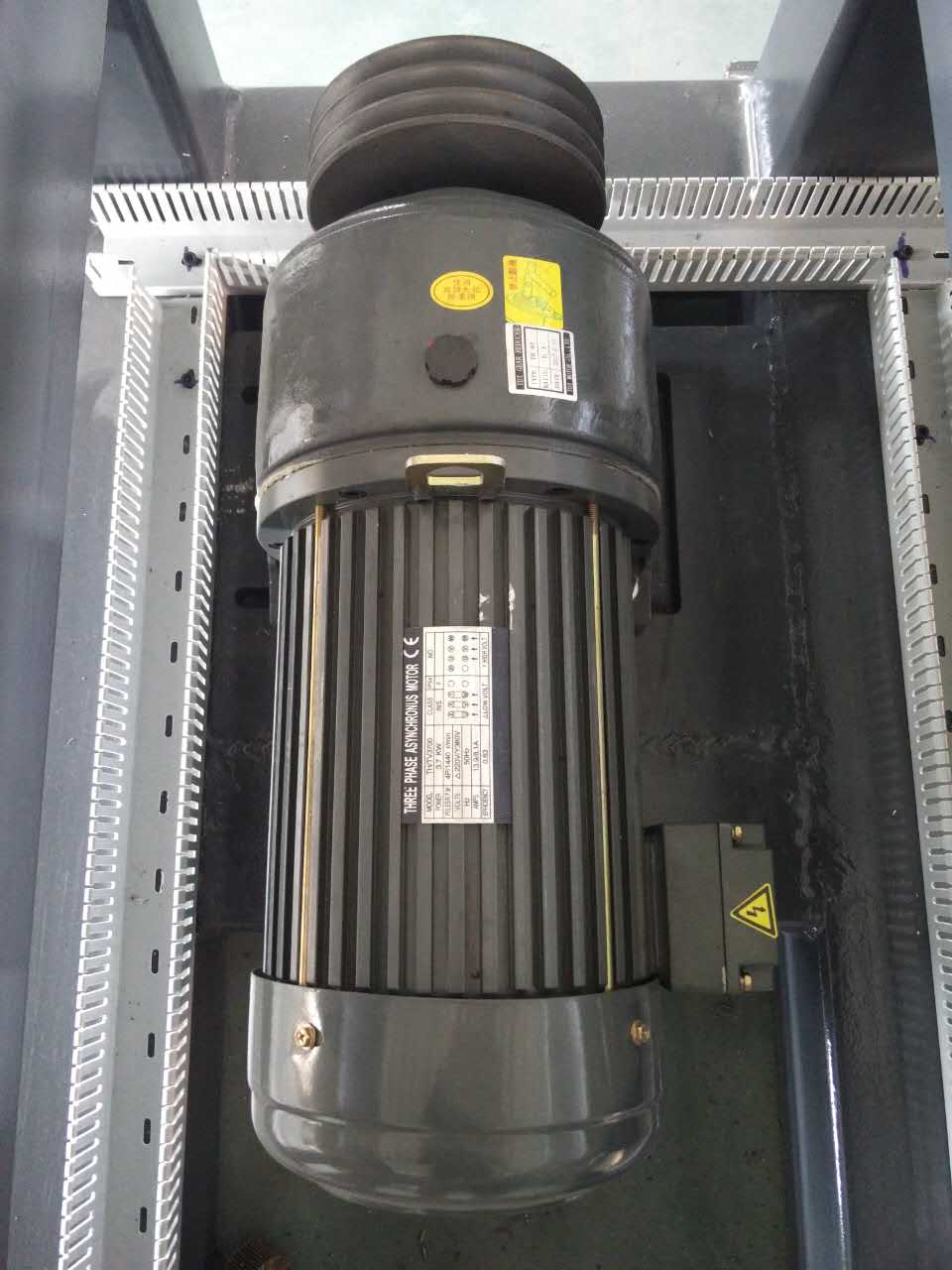

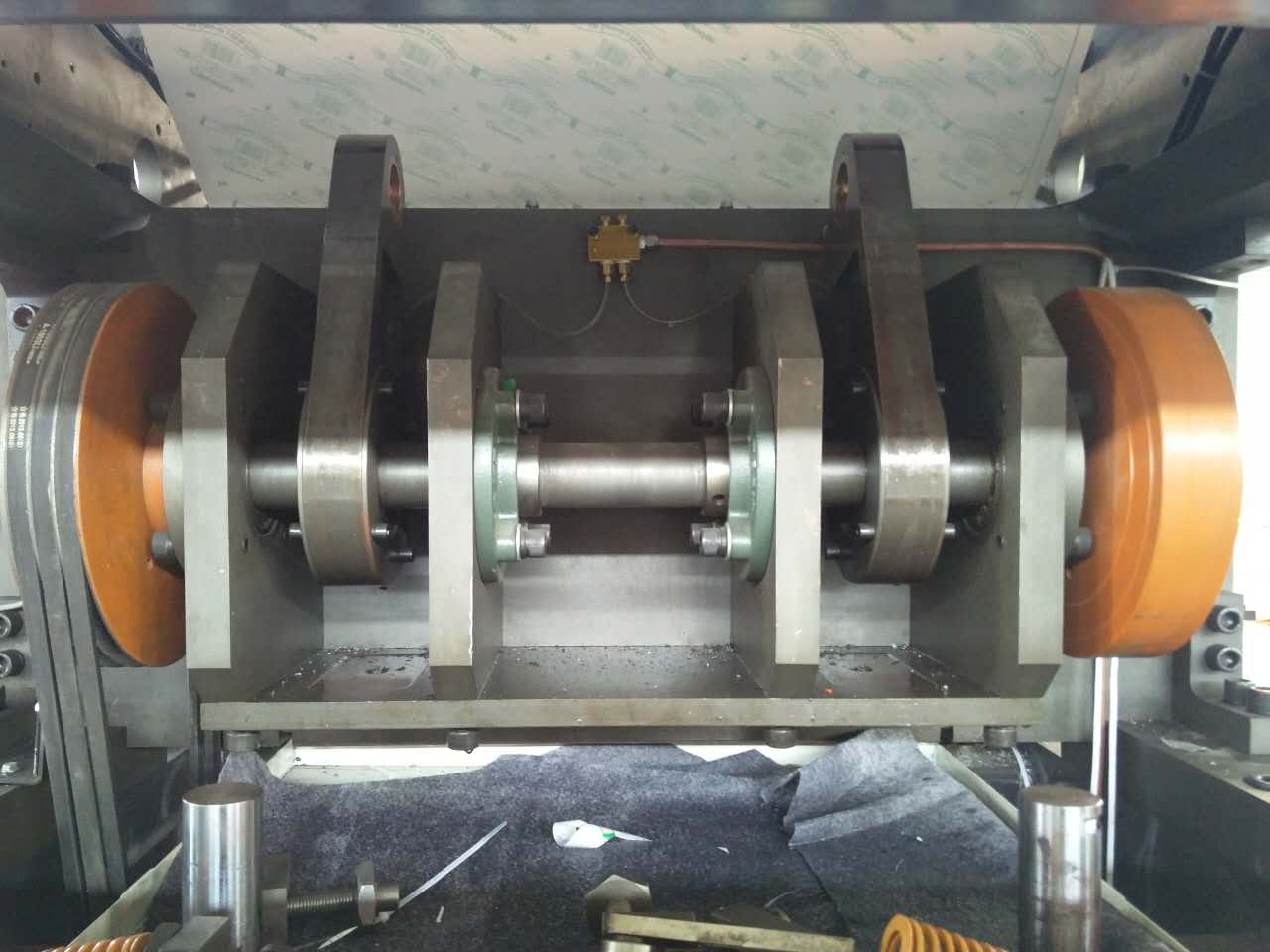

3. The die-cutting force is provided by a 4.5KW inverter motor driver. It is not only power-saving, but also can realize the stepless speed adjustment, especially when coordinate with the extra large flywheel, which make the die-cutting force strong and steady, and the electricity can be further reduced.

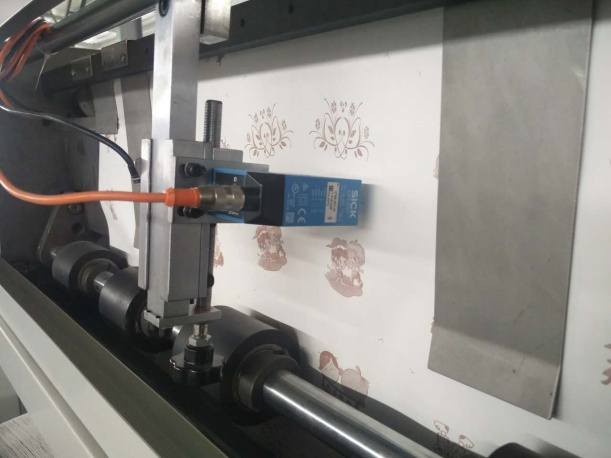

4.The coordination between stepping motor and photoelectric eye which can identify colors assures the perfectly fit of the die-cutting position and figures.

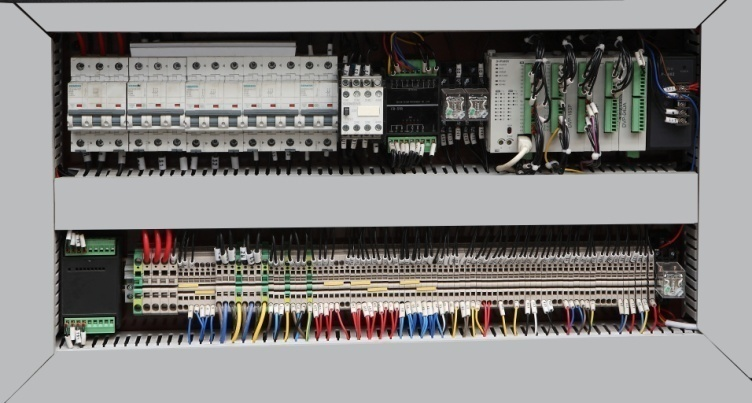

5. Electrical cabinet

Motor: Frequency converter controls the main motor, with features of low energy and high efficiency.

PLC and HMI: screen display the running data and status, all of the parameter can be set through the screen.

Electrical control system: adopts micro computer control, encoder angle detect and control, photoelectric chase and detect, achieving from paper feeding, convey, die-cutting and delivering process automatic control and detect.

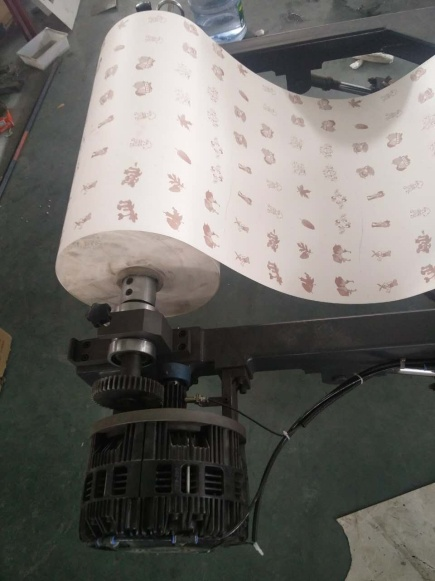

6. Feeding Unit: Adopts chain type pneumatic roller unwind, tension controls unwind speed, and that’s hydraumatic, it could support at least 1.5T. Max roll paper diameter 1.5m.

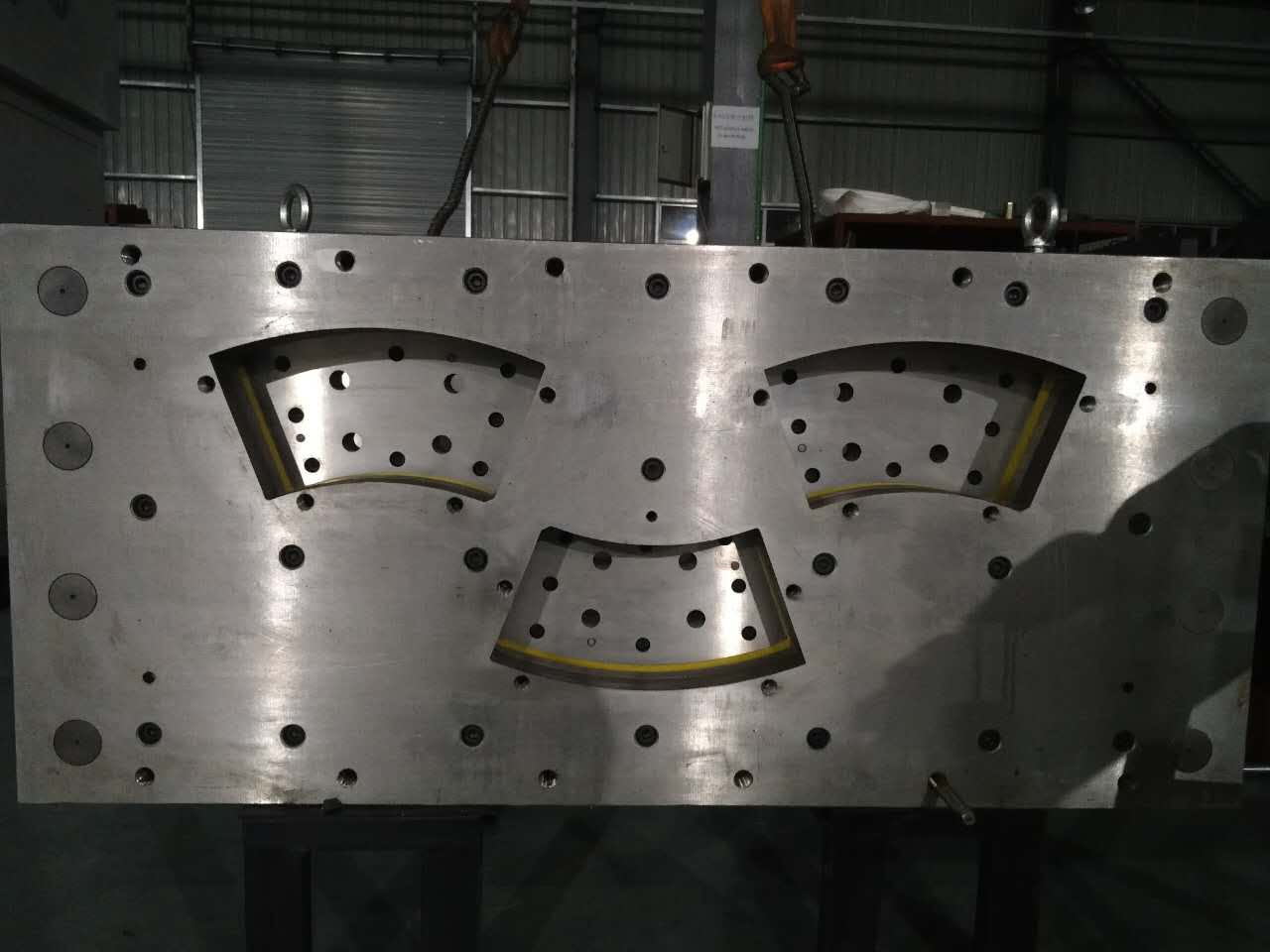

7.Die cutting mold: we adopt swiss material that could be used for at least 400 million strokes, and if the mold can’t cut well, you could polish the blade then continue to use.
