ZH-2300DSG Semi-Automatic two pieces Carton Folding Gluing Machine

Short Description:

The machine is used for folding and gluing of two separate (A, B) sheets to form a corrugated carton Boxes. It is running steady with strengthened servo system, high precision parts, easy for installation and Maintenance. It is widely used for big carton box.

Send email to us

Product Detail

Product Feature

Feeding section: Feeder is controlled by two separate servo motors; also with the help of suction design (paper is feeded by several thick belts and feeding motors). Feeding is continuous, accurate and efficient with this system.
Gluing section: three sets of gluing units. Two sets of gluing units are for supplying parallel glue line to connect two sheets, one unit supply hot melt adhesive and another unit supply cold water adhesive. The third unit is for supplying side glue to form carton box. Those gluing units make the carton stick more stable and firm.
Folding section & Pressing part: Manual folding, then feed the glued and folded carton to pressing part.

Product Parameters

1	Line speed	0-3500pcs/hour
2	Usage paper	Corrugated

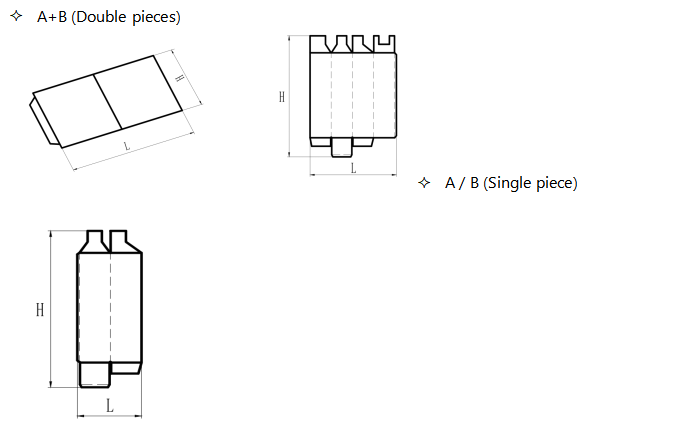

3	Size (a sheet) (L x H)	1150mm x 980mm (max), 500mm x 300mm (min)
4	Electric Power	9.0KW (380V, 3 Phase)
5	Dimension	2600 x 3500 x1400(mm)
6	Weight	2600 KGS

Fitting Parts

Item	Parts Sourced Area/Brand	Name
Electric Component	France Schneider	PLC
		Transducer / Inverter
		Touch screen
		Servo Driver
		Servo Motor
Belt	China	China-Italy joint Belt
Timing Belts	Germany Contitech	Timing Belt
Motor	Taiwan Emorehorn	Suction motor
Motor	Taiwan CPG	Gear Motor
Linear Guide	Taiwan ATAK	Linear Guide
Bearing	Taiwan HIWINI	Liner Bearing
Bearing	China HRB	Bearings
