SWAFM-1050GL Fully Automatic Laminating Machine
| Model No. | SWAFM-1050GL |
| Max Paper Size | 1050×820mm |
| Min Paper Size | 300×300mm |
| Laminating Speed | 0-100m/min |
| Paper Thickness | 90-600gsm |
| Gross Power | 40/20kw |
| Overall Dimensions | 8550×2400×1900mm |
| Pre-Stacker | 1850mm |

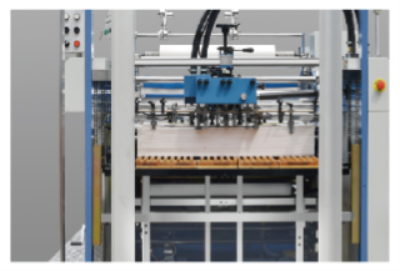

Auto Feeder
This machine is equipped with a paper pre-stacker, Servo controlled feeder and a photoelectric sensor to ensure that paper is continuously fed into the machine

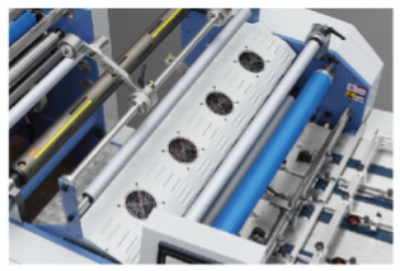

Electromagnetic Heater
Equipped with advanced electromagnetic heater. Fast pre-heating.Energy saving. Environmental protection.

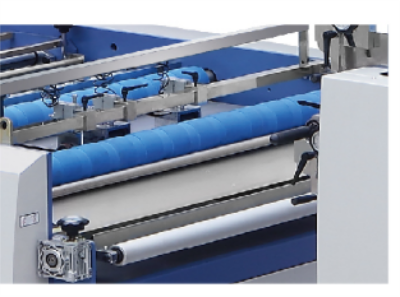

Power Dusting Device
Heating roller with scraper effectively clean the powder and dust in the sure-face of paper. Improve the briteness and bond after laminating

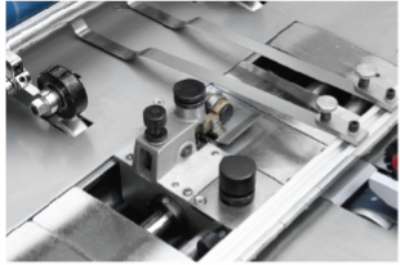

Side Lay Regulator
The Servo controller and Side Lay Mechanism guarantees precise paper alignment at all times.

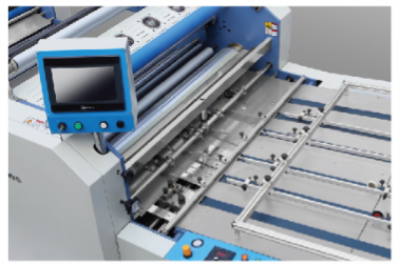

Human-computer interface
A user-friendly interface system with a colour touch-screen simplifiles the operation process.
The operator can easily and automatically control paper sizes, overlapping and machine speeds.

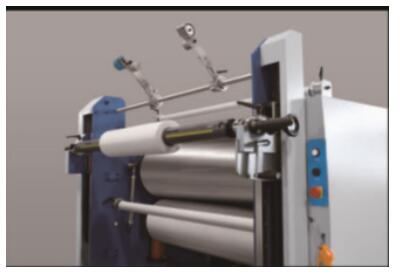

Auto Lifting Film Shaft
Saving time of film loading and uploading,improving efficiency.
Anti-curvature Device
The machine is equipped with an anti-curl device, which ensures that paper remains flat and smooth during the lamination process.

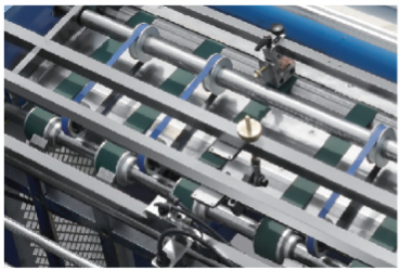

High Speed Separating system
This machine is equipped with a pneumatic separating system, pneumatic perforating device and photoelectrical detector to rapidly separate the paper according .to the paper size.

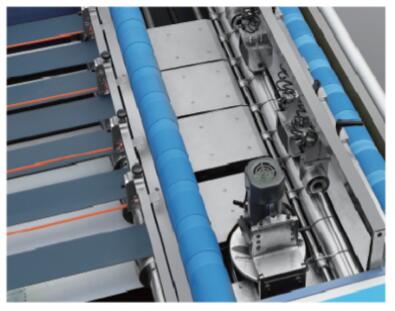

Corrugated Delivery
A corrugated delivery system collects paper easily.

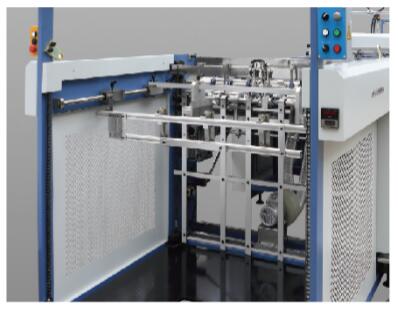

High Speed Automatic Stacker
The pneumatic stacker receives the paper,keeping them in order, while rapidly counting every sheet.
|
Configuration |
Brand Supplier |
|
|
1 |
Touch Screen | WEINVIEW |
|
2 |
Relay | OMRON |
|
3 |
Inverter | Delta |
|
4 |
Photoelectric Switch | Delta |
|
5 |
Servo Drive | Delta |
|
6 |
PLC | Delta |
|
7 |
Servo Motor | Delta |
|
8 |
Servo Gear Reducer | CHINA |
|
9 |
Vacuum Pump | BECKER |
|
10 |
Suction Motor | Ebmpapst |
|
11 |
Head Feeder | RUN |
|
12 |
Cylinder | CHINA |
|
13 |
Pressure Regulating Valve | CHINA |
|
14 |
Hoist Motor | CPG |
|
15 |
Main Motor | CHINA |
|
16 |
Pressule Gauge | CHINA |
|
17 |
Hydraulic pump | CHINA |
|
18 |
Hydraulic Cylinder | CHINA |
|
19 |
Air Expansion Shaft | CHINA |
|
20 |
Convey Tape | CHINA |
