Spiral binding machine SSB420

Short Description:

Notebook Spiral binding machine SSB420 used for spiral metal close, spiral metal bind is another bind method for notebook, also popular for market. Compare double wire bind, it save material, as only single coil, also the book used by single wire bind look more special.


Product Detail

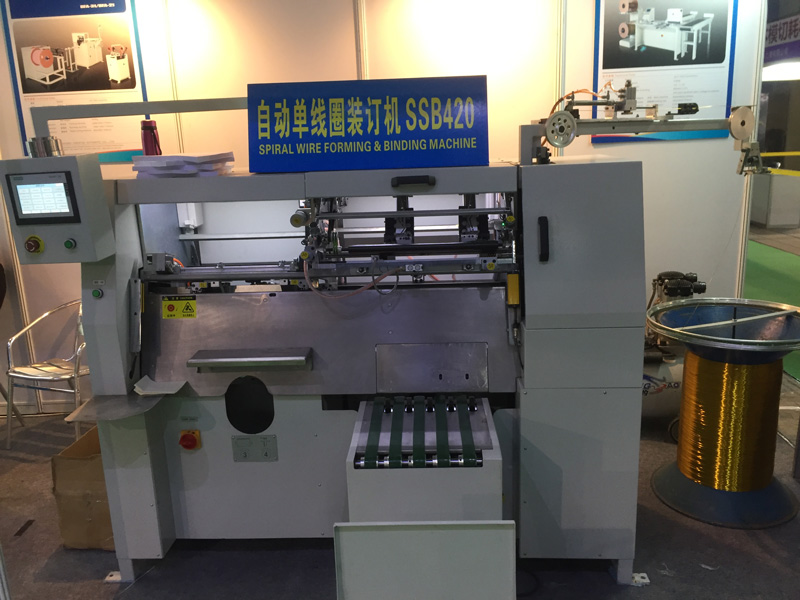

Spiral-binding-machine-SSB420

Technical data

Technical data

Spiral dia size range of application

8mm - 28mm

binding width

Max 420mm

Speed

800 books per hour

Coil lock (G type)

Spiral dia 12mm-25mm

Common lock (L type)

Spiral dia 8mm-28mm

Hole pitch choose

5mm ,6mm ,6.35mm ,8mm,8.47mm

Air pressure

5-8 kgf

Electric power

1Ph 220V

 Advantage

1.Coil lock available (12mm - 25mm ).

2.Notebook cover binding length bigger than inner paper binding length could do

3.Better structure than similar binding machine from other supplier

4.Big thickness notebook could done (speical made could for max 25mm thickness noteook )

Application

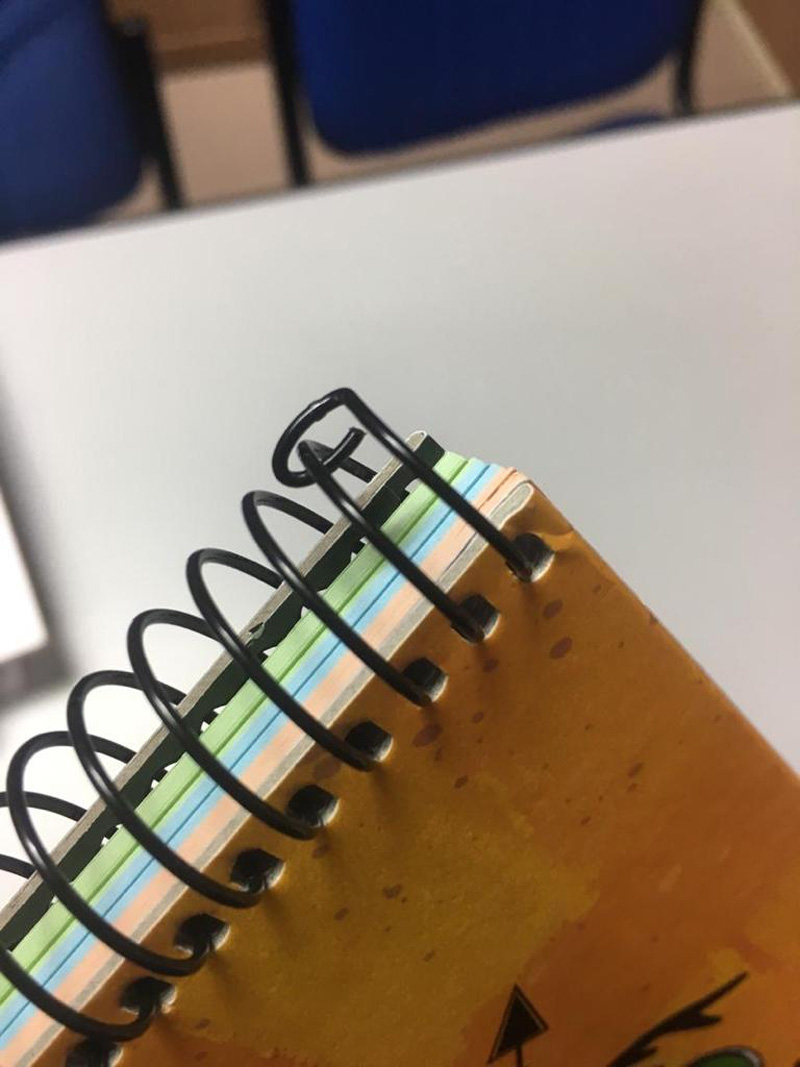

Spiral-binding-machine-SSB420-2

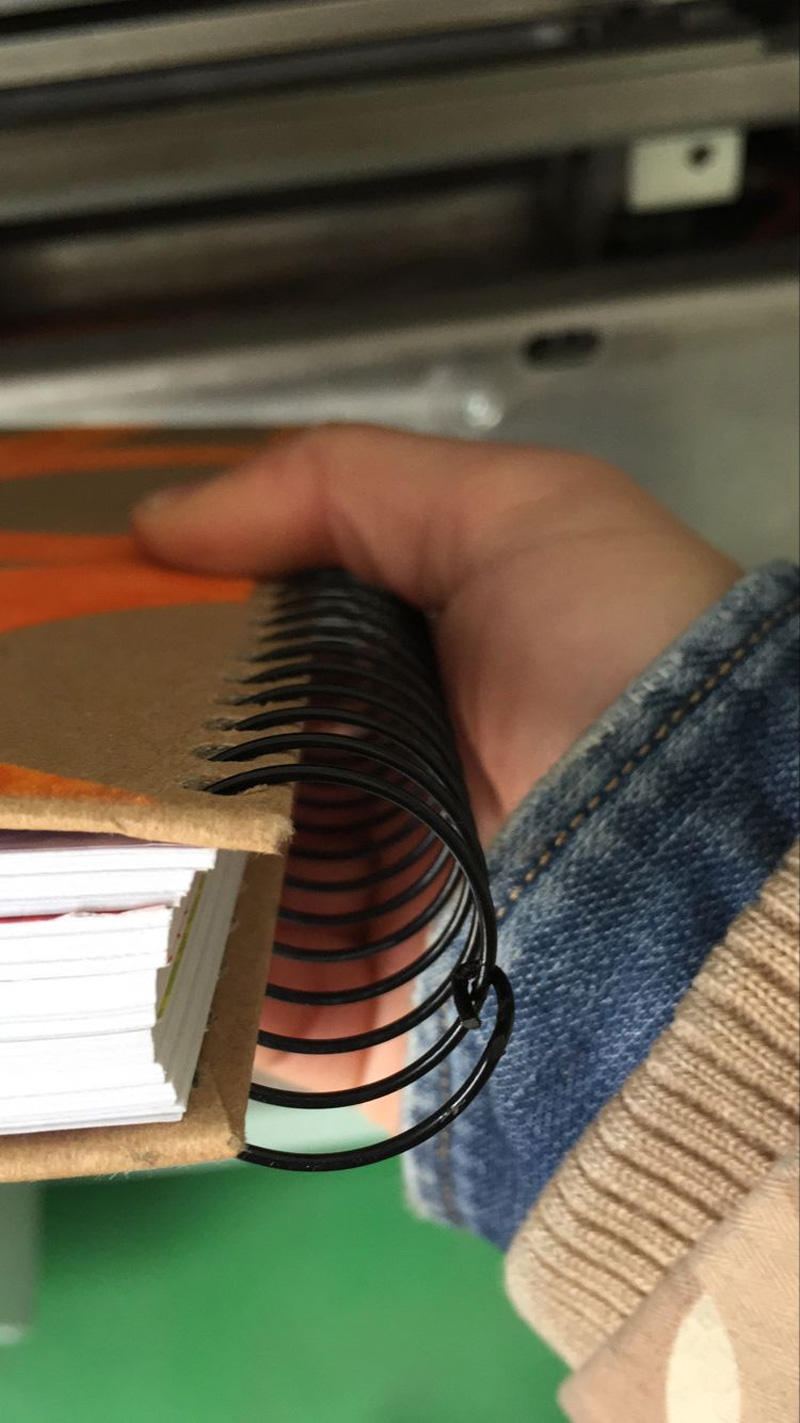

Spiral-binding-machine-SSB420-3

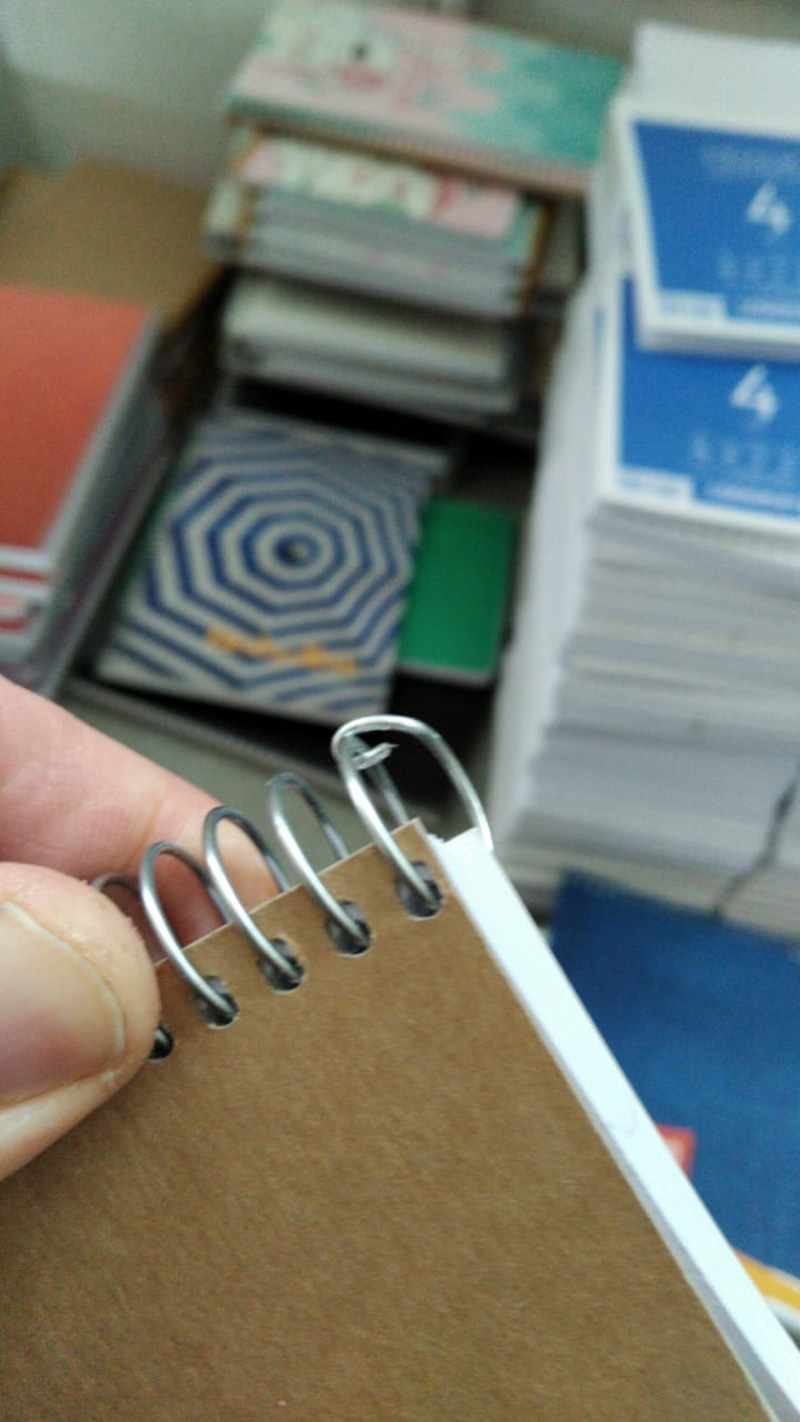

Spiral-binding-machine-SSB420-1

Additional Machine picture

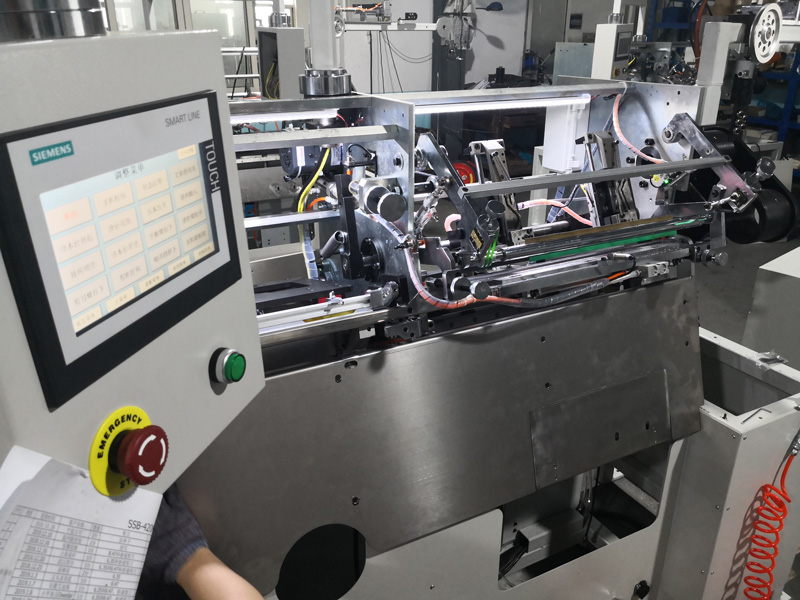

Spiral-binding-machine-SSB420-4
