SMART-420 Rotary Offset Label Press

Short Description:

The machine suitable for several substrate material include sticker, card board, foil, film and etc. It adopts inline modular combination method, can print from 4-12 color. Every printing unit can achieve one of the printing type include offset, flexo, silk screen, cold foil.

Send email to us

Product Detail

Product Video

Technical Parameters

Max speed	8000sheets/h
Max speed size	720*1040mm
Min sheet size	390*540mm
Max printing area	710*1040mm
Thickness(weight) of paper	0.10-0.6mm
Feeder pile height	1150mm
Delivery pile height	1100mm
Overall power	45kw
Overall dimensions	930234002100mm
Gross weight	About 12600kg

Parts Information

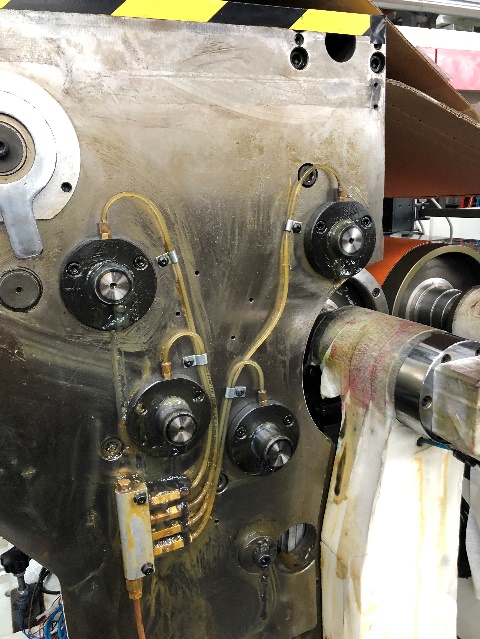

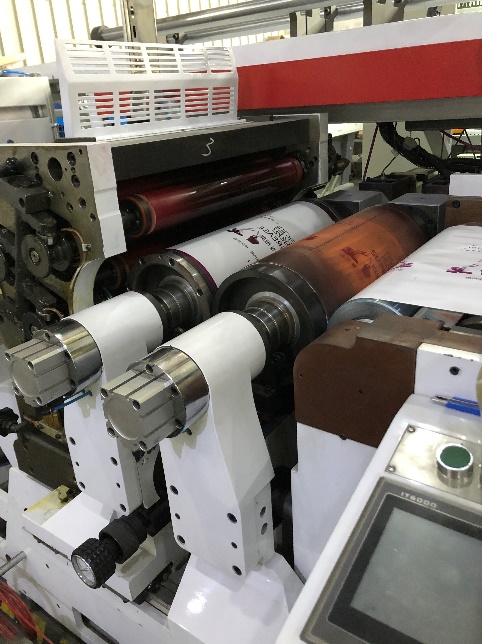

	printing unit (printing cylinder + blanket cylinder)

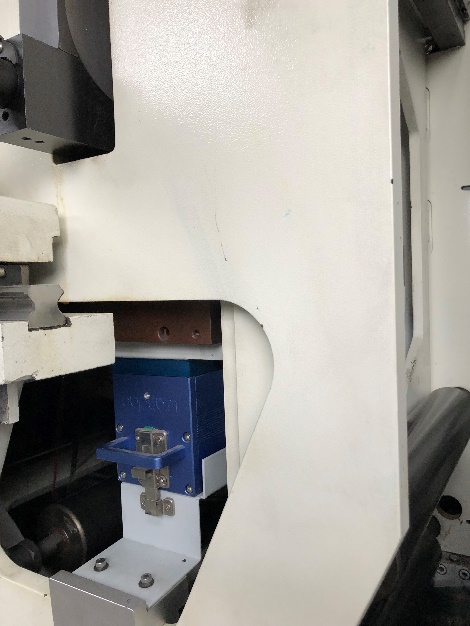

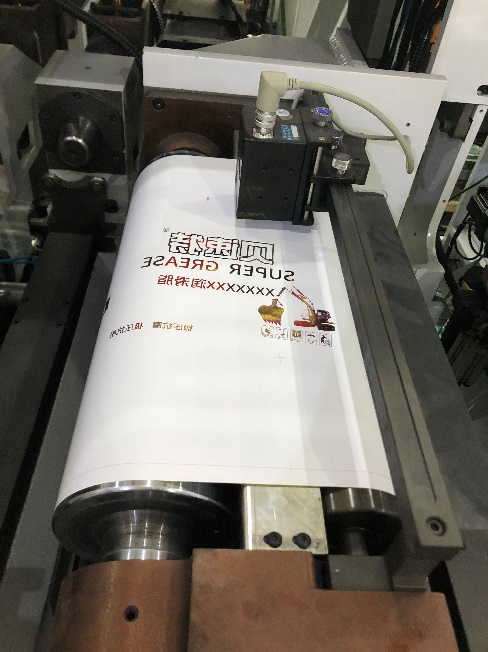

	Automatic registor sensor (each printing unit with sensor, except 1st unit)

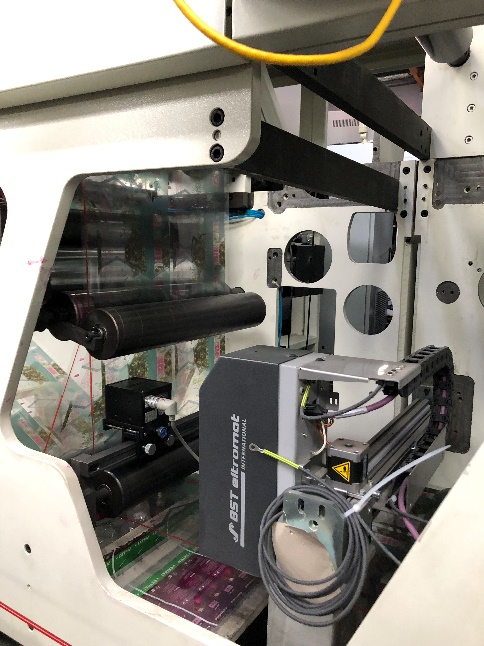

	Ink remote controller system, BST Germany camera
	Cross inking roller with Cooling system

	Cooling drum with cooling system
	LED UV dryer with cooling system

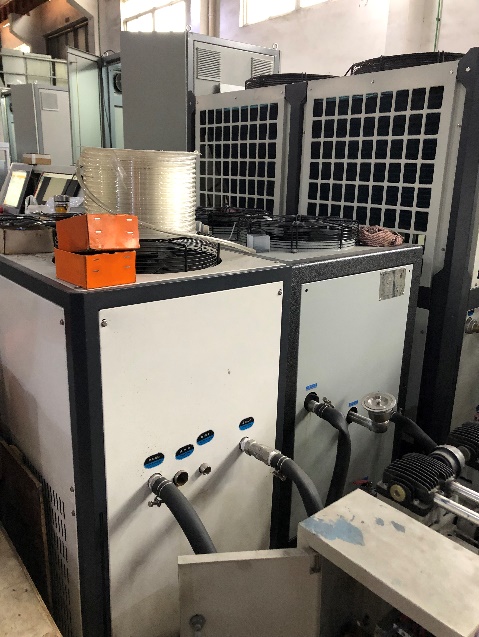

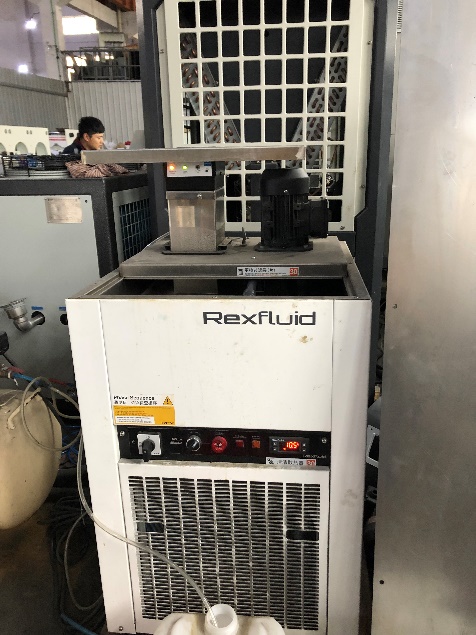

	For machine cooling used
	Web clear (for double sides)

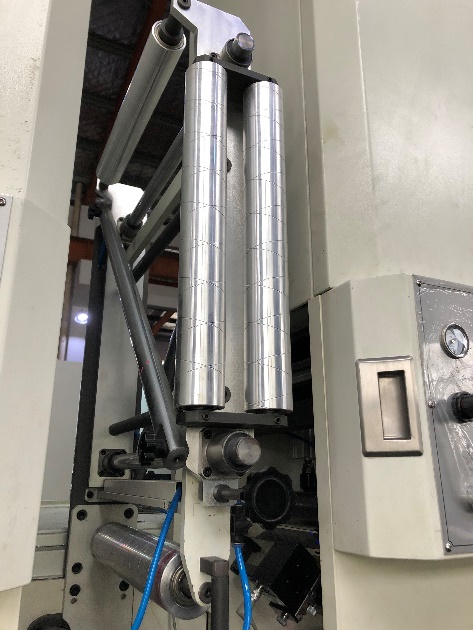

	Turn bar

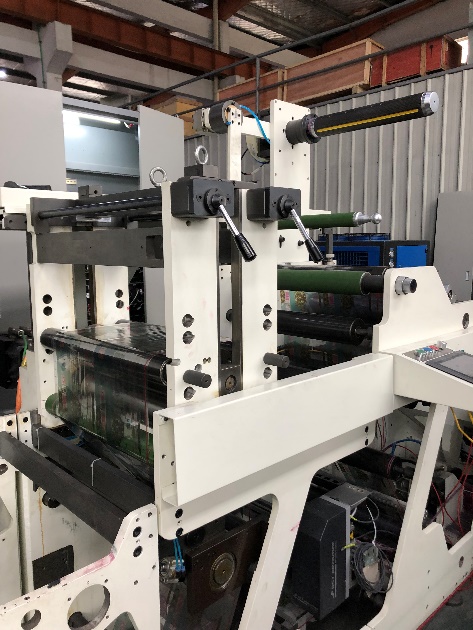

	Die cutter unit (do not including magnetic cylinder)
	2 colors gravure printing units
	Corona treatment (2pcs for double sides)

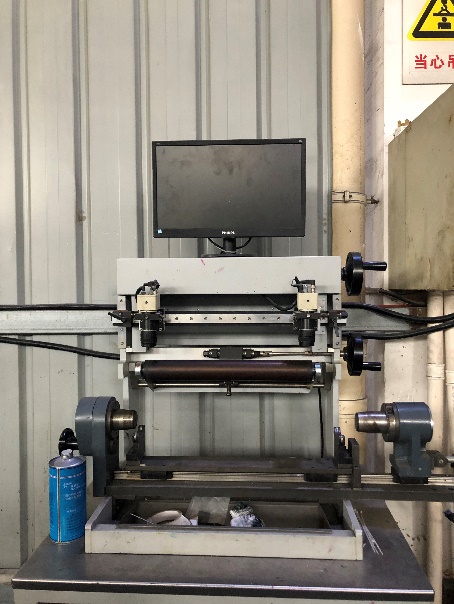

	Plate amounter
	Bending machine

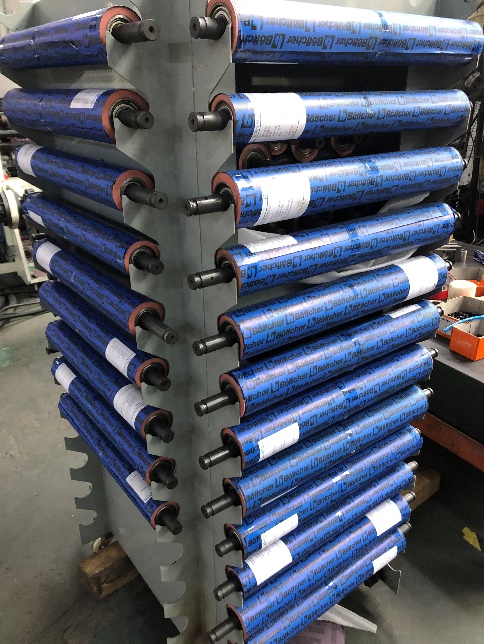

	Rubber roller: Bottcher Germany

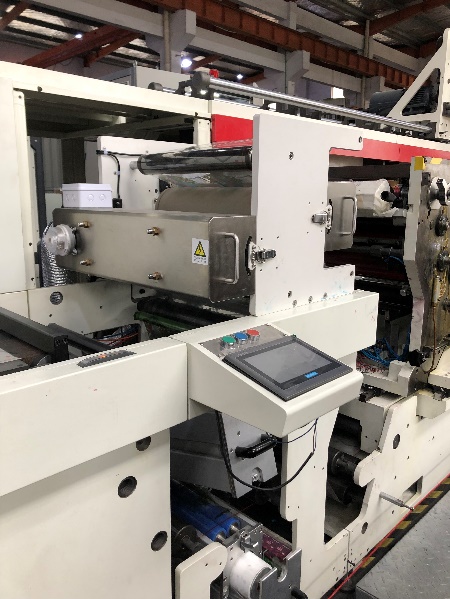

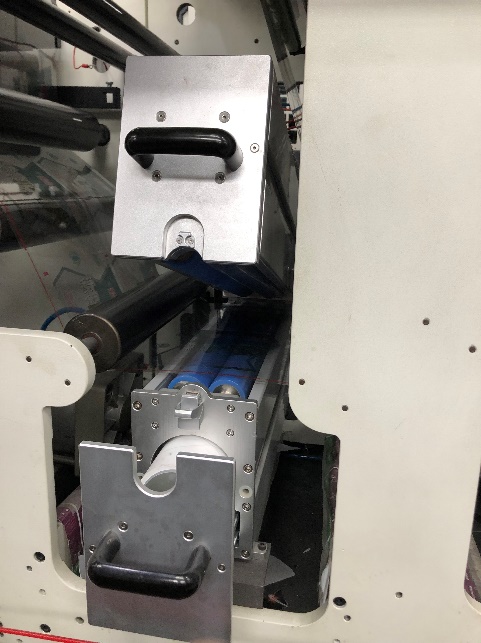

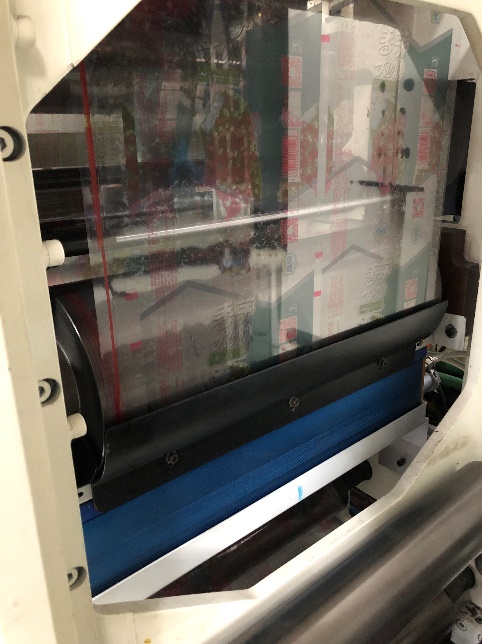

Machine Picture

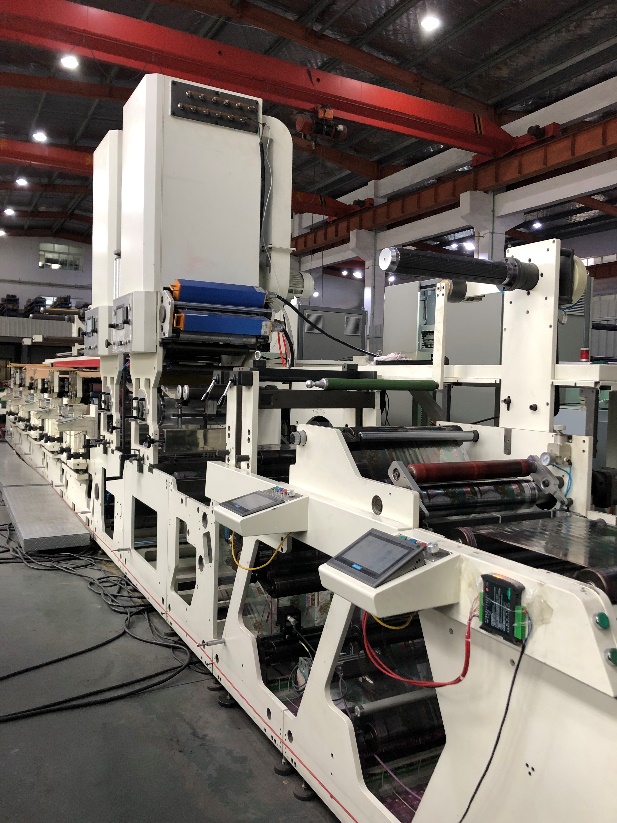

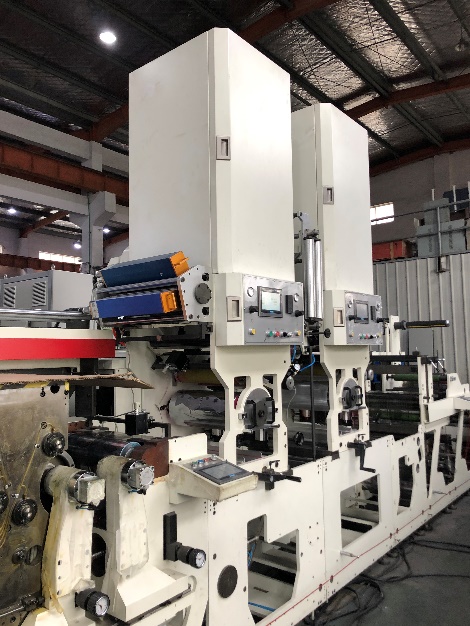

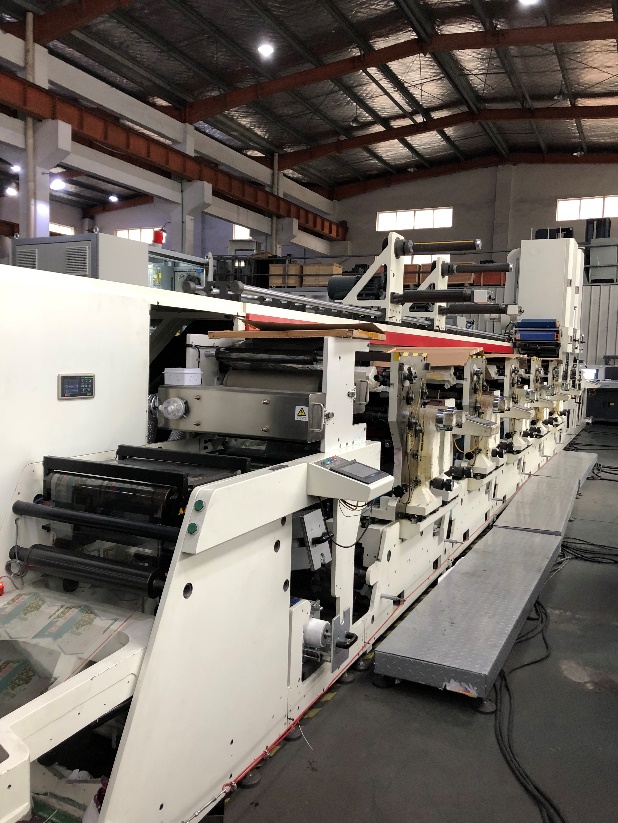

6 colors offset printing unit+2 colors gravur printing unit+ 1rotary die cutter

Configuration

Servo motor	Japan, Yaskawa
Reducer	Shimpo, Japan
UV dryer	Taiwan UV light
Bearing	Japan, NSK/ FAG, Germany
Air Cylinder	TPC, Korea
Contactor	Siemens, France
Touch screen	Pro-face, Japan
Rubber roller	Bottcher, Germany
