RB240 Automatic Rigid Box Maker
|
Model |
RB240 |
|
|
1 |
Paper size(A×B) | Min.45×110mmMax.305×450mm |
|
2 |
Box size(W×L) | Min. 35×45mmMax.160×240mm |
|
3 |
Paper thickness | 80-160g/m2 |
|
4 |
Cardboard thickness(T) | 0.5~3mm |
|
5 |
Box height(H) | 12-80mm |
|
6 |
Fold-in paper size(R) | 8-20mm |
|
7 |
Precision | ±0.50mm |
|
8 |
Speed | ≦32sheets/min |
|
9 |
Motor power | 13kw/380v 3phase |
|
10 |
Machine weight | 3300kg |
|
11 |
Machine dimension(L×W×H) | L4500×W4000×H 2600mm |
1. The max and mini sizes of the boxes are subjected to those of the paper and the quality of the paper.
2. The speed of the machine depends on the sizes of the boxes.
3. We don’t provide air compressor.

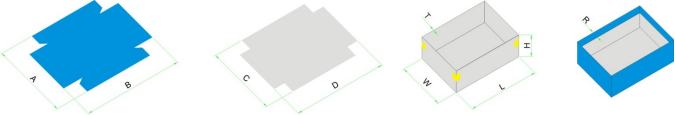

The corresponding relationship between the parameters:
W+2H-4T≤C(Max) L+2H-4T≤D(Max)
A(Min)≤W+2H+2T+2R≤A(Max) B(Min)≤L+2H+2T+2R≤B(Max)

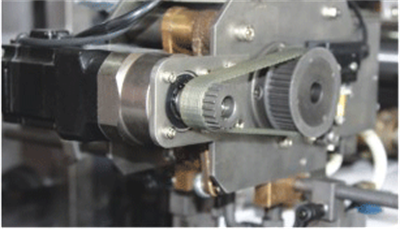

New servo controlled feeder
New designed servo controlled paper feeder adopts post-sucking pre-pushing type to convey paper which efficiently avoids two pieces of papers entering into the machine.

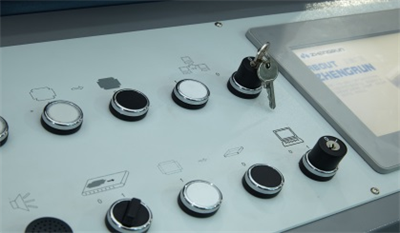

All icons control panel
Friendly-designed all icons control panel, easy to understand and operate.

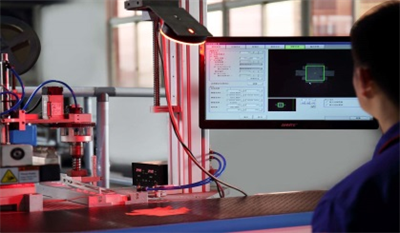

HD Camera positioning
HD Camera positioning technology makes the operation easy and accurate.

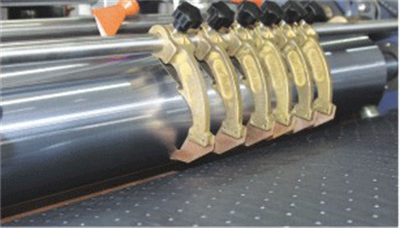

Line-touch designed copper scraper
The copper scraper cooperates with the glue roller by line-touch design which makes the scraper more durable.

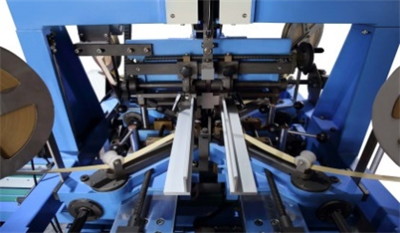

Auto pasting box four angles
Adopt environment-friendly tape to paste the box angles, which can paste four angles in one process with neat appearance.

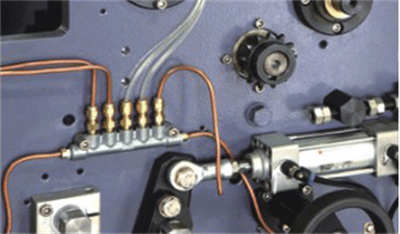

Concentrated lubrication system
The concentrated oil system fully ensures each parts lubricating and the steady running of machine.

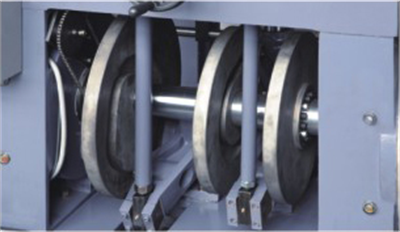

Quality disc cam
Adopt 38CrMoAlalloy steel disc cams.

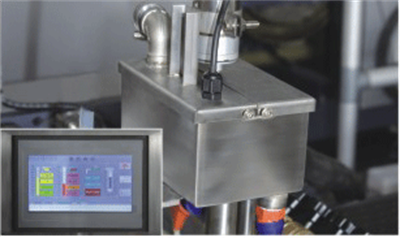

Glue viscosity meter(Optional)
Auto glue viscosity meter efficiently adjusts the glue stickiness which ensures the quality of finished products.
