MQ-320 & MQ-420 Tag Die Cutter

Short Description:

MQ-320 is applied to produce tag products, which is equipped with automatic paper feeder, web guide by sensor, color mark sensor, die cutter, waster wrapping, cutter, automatic rewinder.


Product Detail

Product Video

Performance and Characteristics

This is a high precision flat bed die cutter. Material feeding & cutting are controlled by servo motor. Lateral sides are controlled by 2pcs of sensor and lineal side is controlled by one of sensor. Laminating, diecutting, waster removal, sheeting or rewinding can be completed in one pass. It is suitable for cutting pressure sensitive label and holographic anti-counterfeiting label. It is a best, efficient partner for adhesive label printing machine and hologram diecutter and is also applicable for label house. Electronic parts die cutting and adhesive tape sectors.

Technical Parameters

Model MQ-320 MQ-420
Max paper width 320mm 420mm
Die cutter width 300mm 400mm
Die cutter length 290mm 400mm
Die cutter speed 350 times/min 20-170 times/min
Positioning Accuracy +0.1mm +0.1mm
Total Capacity 2.7kw 5.5kw
Voltage 220V 380V
Overall Dimensions (L*W*H) 2800*1100*1600mm 2400*1290*1500mm
Machine Weight 1500kg 2300kg
Max web diameter 500mm 500mm

Optional function:

Hot-stamping
Lamination
Computer punch

Spare Parts’ Origin

Model MQ-320 MQ-420
Motor drive Japan Japan
Feed paper mote Japan Japan
Main mote China China
Electric eye Taiwan Taiwan
Control PLC NA Mitsubishi
Touch Screen NA Taiwan Kinco
Host converters NA Shihlin Taiwan
Servo Motor Drive NA Yaskawa
Relay NA Schneider
Switching Power Supply NA Schneider
Button NA Japan Izumi
Other Low Voltage Control Element NA Schneider, etc.

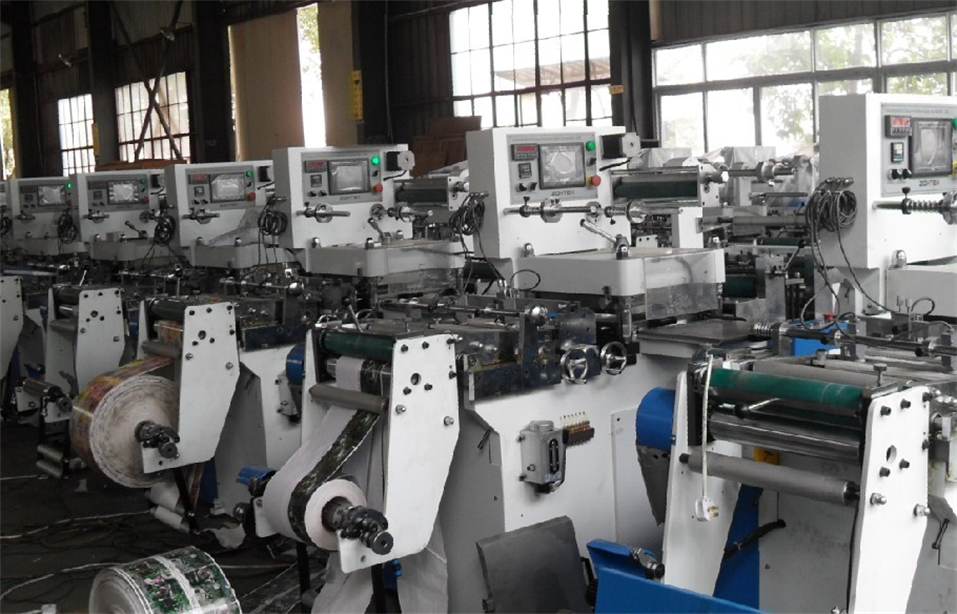

ghkg

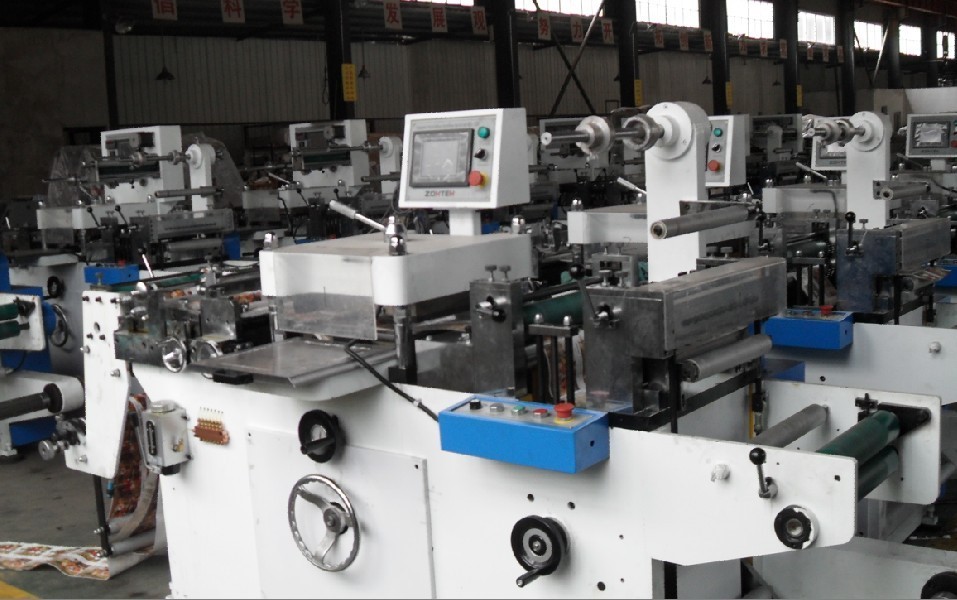

MQ-320 & MQ-420 (4)

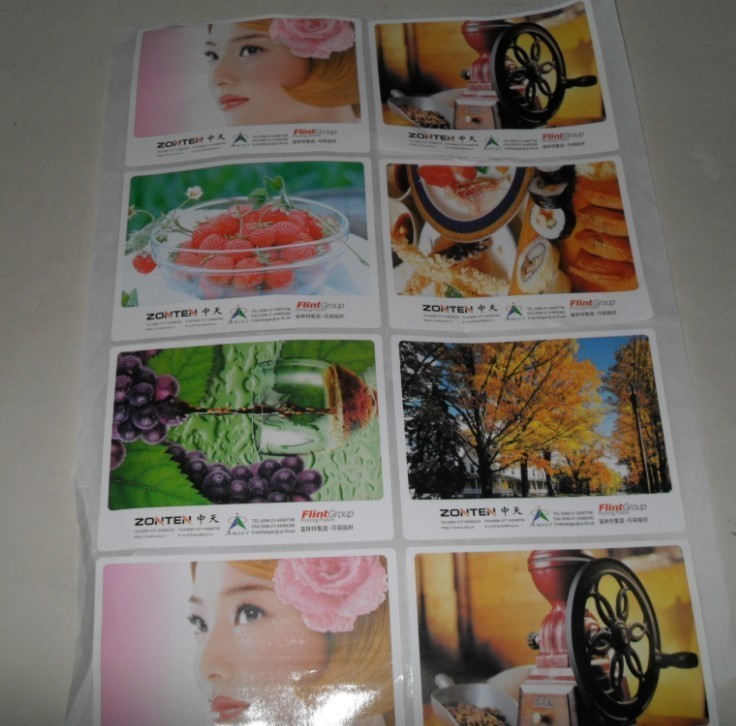

Samples

Die Cutter

MQ-320 & MQ-420 (5)

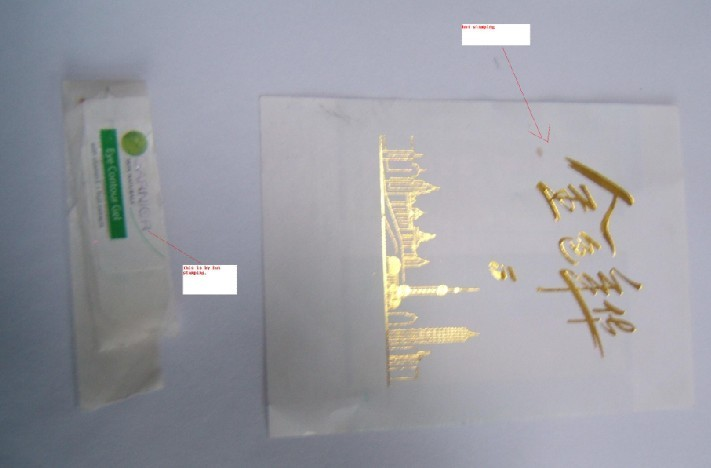

Hot Stamping

911 (1)

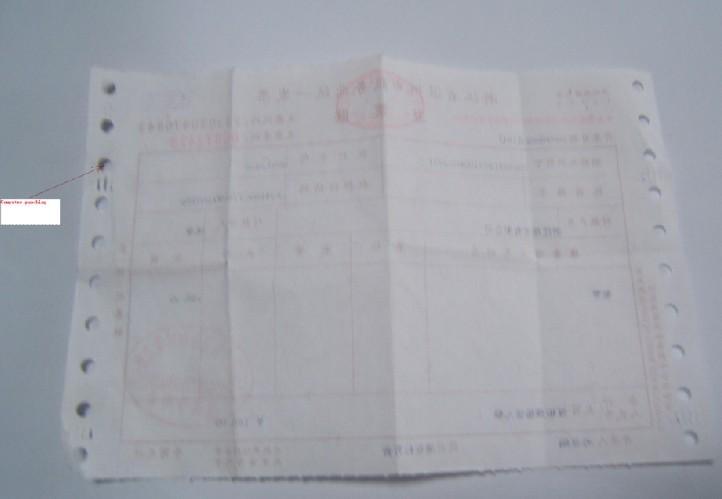

Computer Punching

911 (2)
