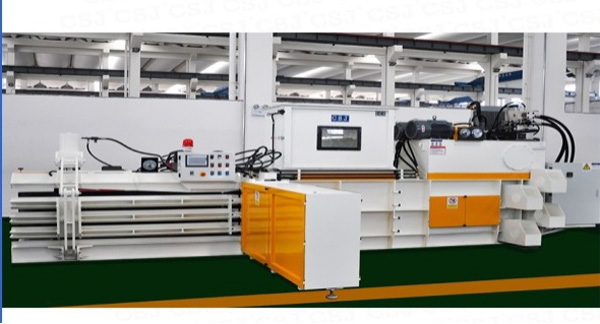

Horizontal Full Automatic Hydraulic Press Baling Machine （JPW80QT）
* Open type structure makes packaging conveniently, and improves work efficiency.
* Three sides convergent way, counter loop type, tightening and loosening through the oil cylinder automatically.
* It configures with PLC program and touch screen control, operated simply and equipped with automatic feeding detection, can compress bale automatically,realize unmanned operation.
* It designs as special automatic strapping device, quickly, simple frame, acting stably, low failure rate and easy to maintain.
* It equipped with two pumps to save power, energy consumption and cost.
* It has a function of automatic fault diagnosis, improving the efficiency of detection.
* It can set block length arbitrarily, and accurately record data of balers.
* Adopt unique concave type of multi-point cutter design, to improve the cutting efficiency and prolong its service life.
* Used the German hydraulic technology to save energy and protect environment.
* Adopt the vessel classification of welding process to ensure that equipment is more stable and reliable.
* Adopt the YUTIEN valve group, Schneider appliances.
* Adopt the British imported seals to ensure without phenomenon of oil leak and improve the service life of the cylinder.
* Block size and voltage can be customized according to customers' reasonable requirements. Bales weight depends on different materials.

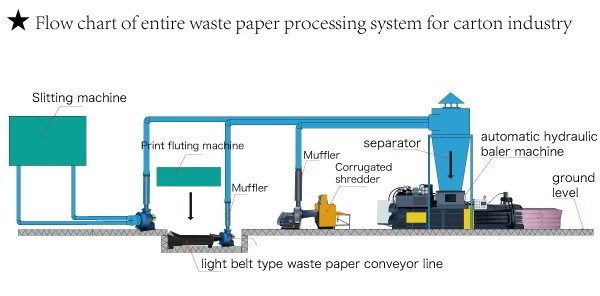

* It has three phase voltage and safety interlock device, simple operation, can connect with pipeline or conveyor line to feed material directly, improve working efficiency.
 |
Model | JPW80QT |
| Hydraulic power | 80T | |
| Cylinder inner diameter | Φ200 | |
| Bale density (OCC kg/m ³） | 450-550 | |
| Bale size (W*H*L) | 800*1100*(300-1800)mm | |
| Feed opening size(L*W) | 1650*800 | |
| Capacity （Ton/hr) | 2-5 | |
| Bale lines | 4 | |
| Cooling method | Water cooling | |
| Power | 30kw/40Hp | |
| Voltage | 380V/50HZ three phase Can be customized | |
| Machine size (L*W*H) | about 7600*3500*2300mm | |
| Machine weight | about9.5T |
| Model |
JP-C2 |
| Length |
11M |
| Width |
1450MM |
| * The conveyor is made of all steel construction, durable
* Easy to operate, safety, low failure rate. * Set the pre -embedded foundation pit, put the conveyor horizontal part into the pit, during feeding, push the material directly to the pit continuous, high efficiency when transport the materials * Frequency motor, transmission speed can be adjusted |
|
 |
Model |
JP-C1 |
|
Length |
6M |
|
|
Width |
1000MM |
|
|
Power |
ABOUT 1.5KW |
|
| * The conveyor is made of all steel construction, durable
* Easy to operate, safety, low failure rate. * Set the pre -embedded foundation pit, put the conveyor horizontal part into the pit, during feeding, push the material directly to the pit continuous, high efficiency when transport the materials * Frequency motor, transmission speed can be adjusted |
||
 |
|
| Roller conveyor - poweredL1800mm（Weighing） |
L1800mm*1 pcs |
|
Roller conveyor - no power |
L2000mm |
|
Automatic weighing |
Only print paper, not print self-adhesive paper |
|
Size |
About1100*1000mm |
| Weighing range | 2000KG~1KG |
Fully automatic operation system
automatic compressing, strapping, wire cutting and bale ejecting.high efficiency and labour saving.
PLC control system
realize high degree of automation and high accuracy rate
One button operation
making the whole working processes continuously, facilitating operation convenience & effiiency
Adjustable bale length
can meet different bale size/weight requirements
Cooling system
for cooling down the temperature of hydraulic oil, which protects the machine in high ambient temperature.
electric controlled
for easy operation, simply by operating on button and switches to fulfill platen moving and bale ejecting
Horizontal cutter on feeding mouth
for cutting off the excessive material to prevent it from being stuckat the feeding mouth
Touch screen
for conveniently setting and reading parameters
Automatic feeding conveyor (optional)
for continuous feeding material, and with the help of sensors and PLC, conveyor will automatically start or stop when the material below or above certain position on hopper. Thus enhances feeding speed and maximize output.

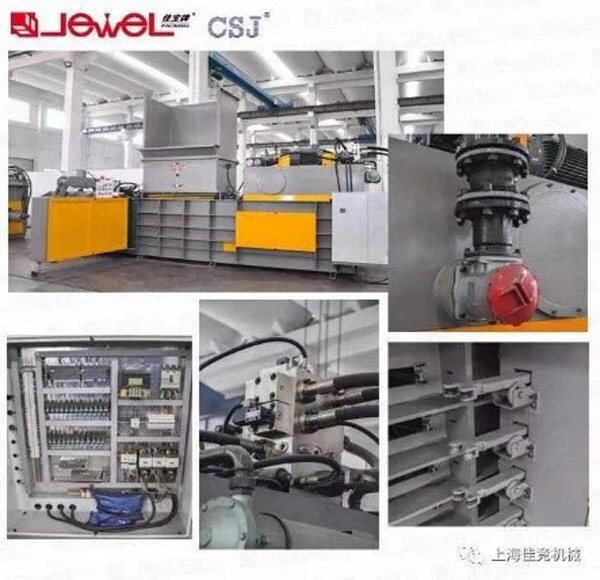

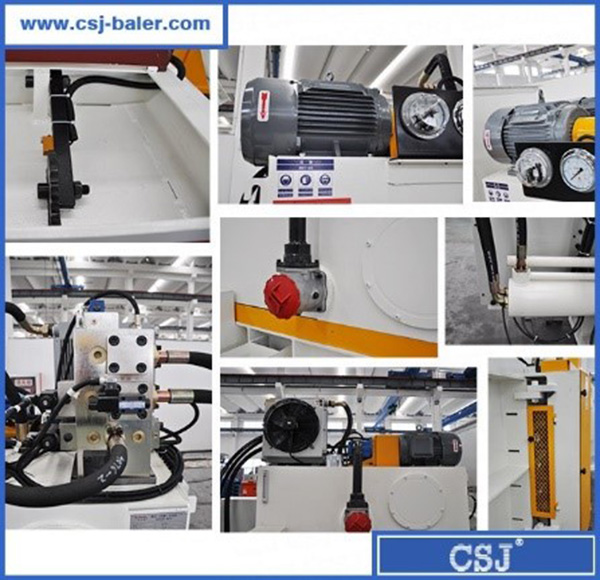

| Machine Configuration | Brand |
| Hydraulic components | YUTIEN (TAIWAN BRAND) |
| Sealing parts | HALLITE (UK BRAND) |
| PLC control system | MITSUBISHI(JAPAN BRAND) |
| Operation touch screen | WEIVIEW(TAIWAN BRAND) |
| Electrical components | SCHNEIDER (GERMANY BRAND) |
| Cooling system | LIANGYAN(TAIWAN BRAND) |
| Oil pump | JINDA(JOINT VENTURE BRAND) |
| Oil pipe | ZMTE (SINO-AMERICAN JOINT VENTURE) |
| Hydraulic motor | MINGDA |
This machine is guaranteed for 12 months. Within the guarantee period, in the event of any malfunction caused by the quality of the commodity, we provide free components for replacement. Wear parts are exclusive from this warranty. We also provide technical support for the whole lifespan of the machine.
