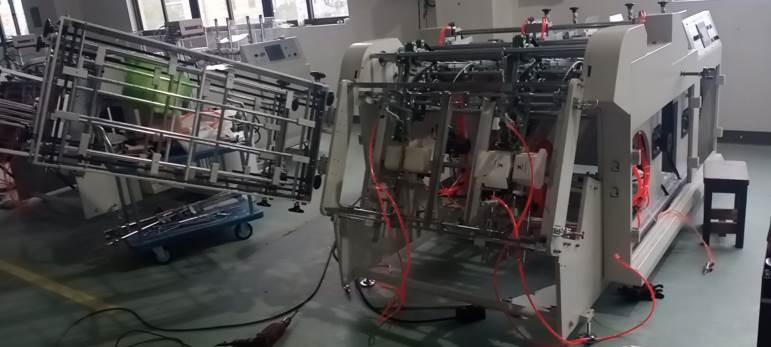

ECE-1600 Double Lane Carton Erecting Machine 5 Servo

Short Description:

Carton Erecting Machine (paper box forming machine) is an automatic machine, specialized in making food carton, box, container which are made from cardboard, paper, paperboard, corrugated paper etc.
The food box (carton, container, dish, tray) is widely used as burger box, hot-dog box (tray), one block box, food pail box (Chinese food box, take-away box), fries box (chips box, chips tray), lunch box, meal box, etc.

Send email to us

Product Detail

Advantage

1.Servo motor control the forming mold (press mold) (advanced, more accurate than mechanism cam control)
2.Using full servo system (4 servos in machine replace cam system)
3.Easy exchange molds to make different products, charging and adjusting time is very short.
4.PLC program control the whole line, available to make complicated boxes.

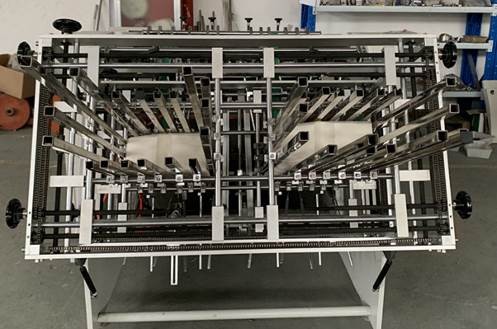

5.Automatic collection, stock, and count.
6.Human being designed control button and panel, more easy and safe runs by user.
7.PLC could save the adjusted parameter after you finish adjustment, it will help you save time.

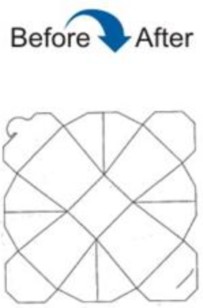

Deep paper food box
(paper food pail )

Take Away Box, Food Box, Instant food box, Chinese Food Box, Food Pail

Technical Specification

Model
Speed	100~320 box/minute Speed depends on paper blank size.
Welding Method	Water-Glue System Welding;
Available Material	200~620gsm board, paperboard, paper, corrugated cardboard, Fluted paper, etc.
Material Thickness	Max. 1.5mm

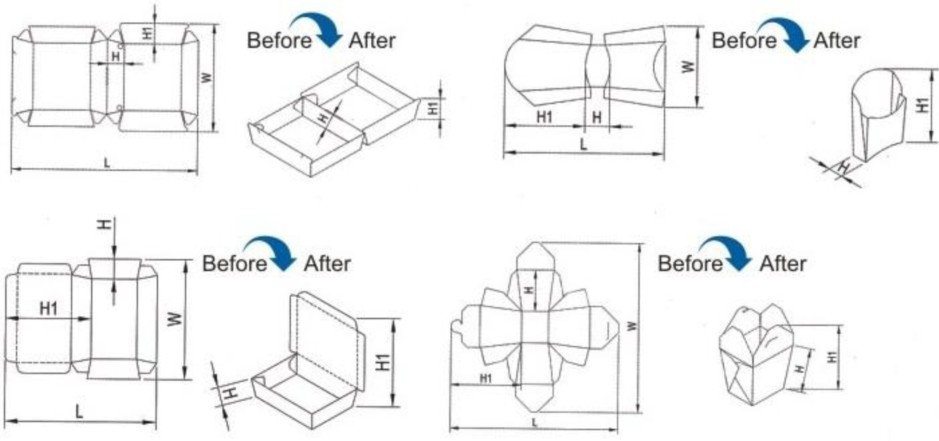

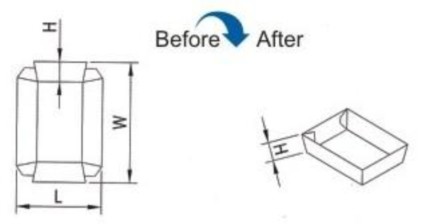

Paper Size:		L=Length: 100-480mm
		W=Width: 100-500mm
		H=Height: 15mm-320mm
		Angle: 5~50 degrees
Total Power	5KW
Weight	2800KG
*Machine Size (LWH)*	360018501700
Power Source	3-phase, 380V, 50/60Hz
Air Source	Compressed air at 6-10 bar needed
The product complies with the regulatory requirements and standards on CE conformity and therefore carries the CE mark.

Whole machine include

Feeding device, Electric control box, Transfer System, Water glue device, Forming (welding) device, Collection device, One set of mold.

Remark:

The box size, box shape, material and its quality will affect the machine output.

Main Electric Components List (High Quality Elements)
NAME	BRAND
Touch Screen	FRANCE
PLC
Servo Motor
Servo Driver
Relay
Terminal
AC contactor
Breaker
Photoelectric Sensor	Germany Sick
Proximity Switch	Germany Sick
Belt	America
Electrical Wire	America

High Durable, Reliable, Long Life Time
Main Bearing		NSK, JAPAN
Feeding System

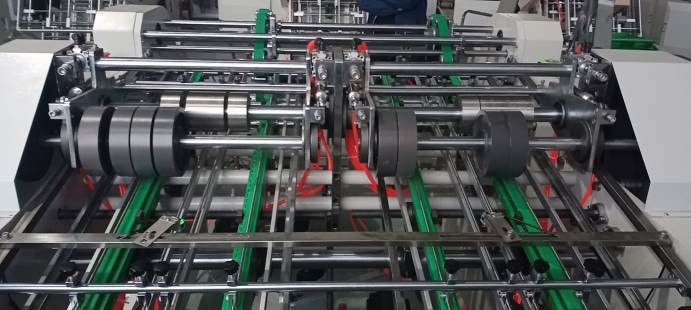

Transfer System

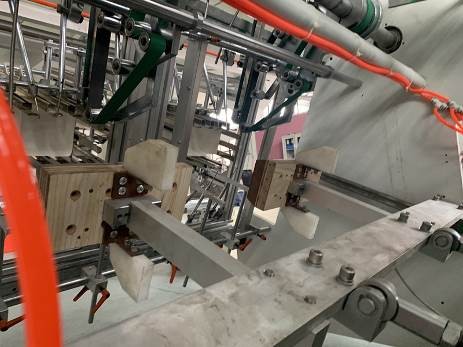

Forming System
High Precision
Main System	Process
Moving System	Full Servo System
Transfer System
Feeding System
Fixing Parts	Grade 12.9 Hardness (bolt, nut, pin, etc)
Frame Board	Grinding, Polishing Treatment
High Safety
Human Being Design, All the switch button within 0.6 meter area.
Safety Window Design: Auto Stop while open the window or door.

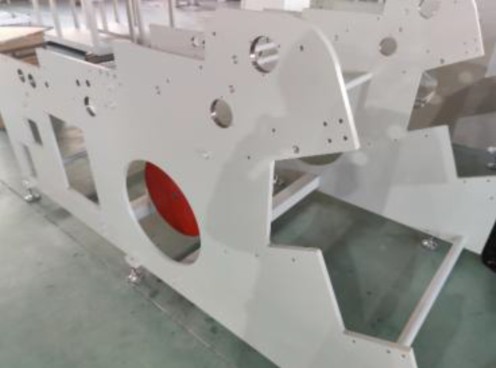

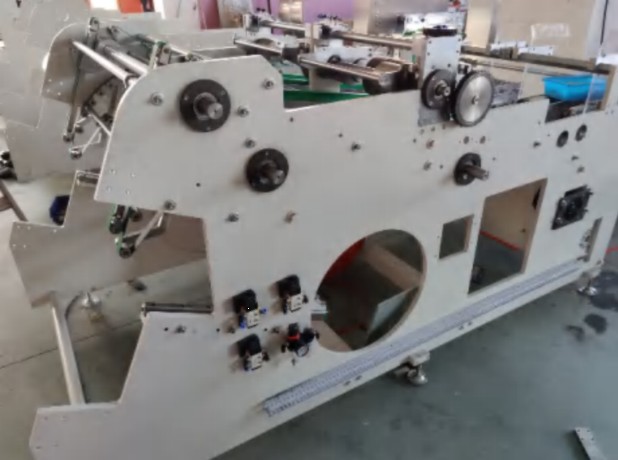

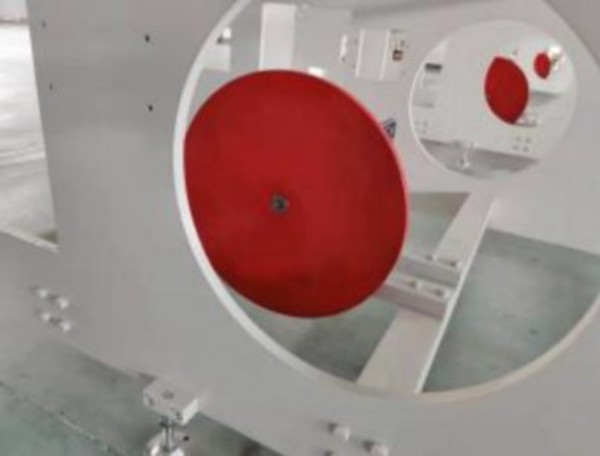

Thick walls - Full Machine weight is exceed 2800KG, machine runs stably at a high speed

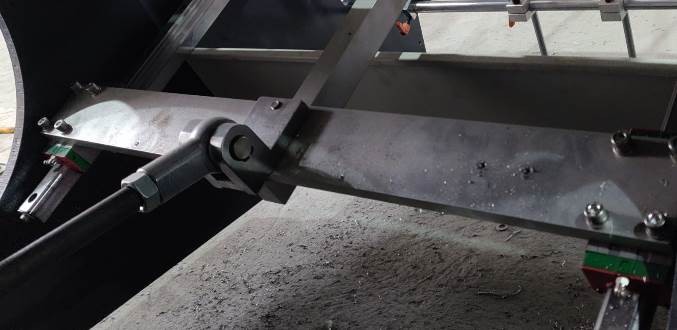

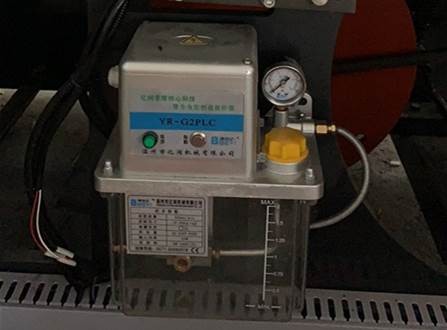

Cam Pushing System - Cam pusher design, reduce the wearing a lot.

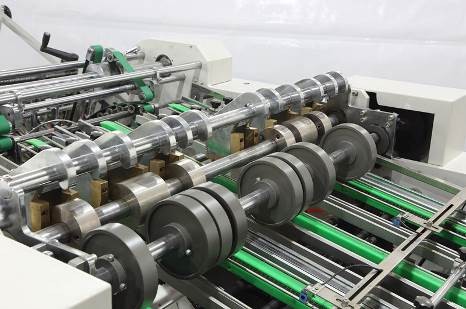

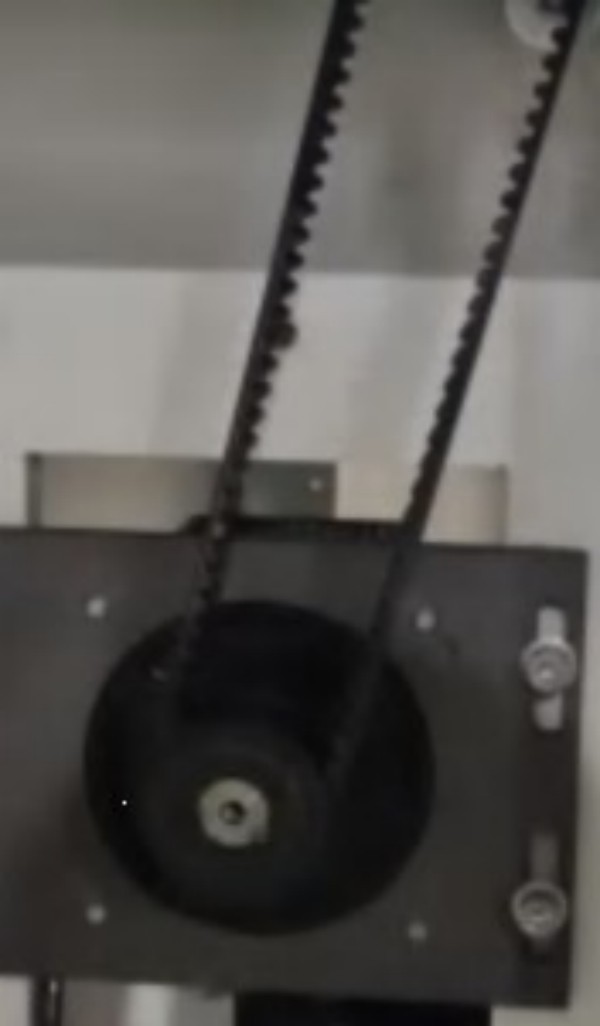

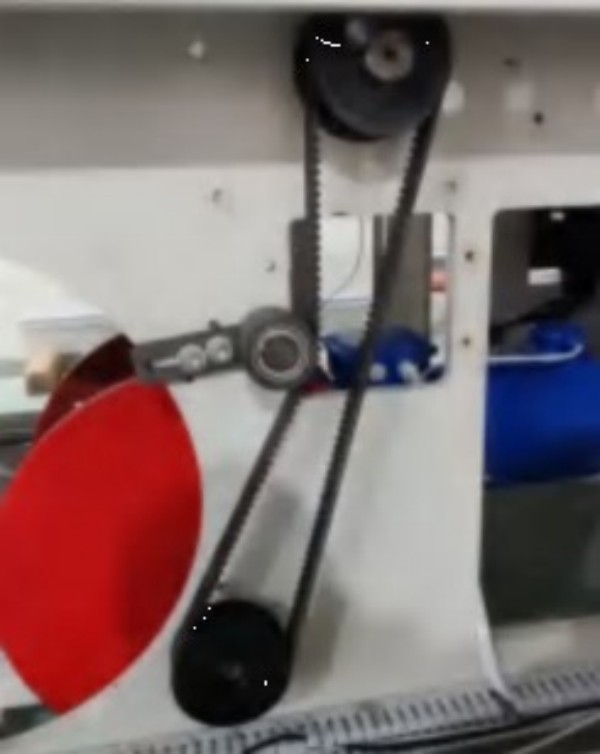

Belt Structure - Belt structure have features of low noise, easy maintenance , longer service life and high precision

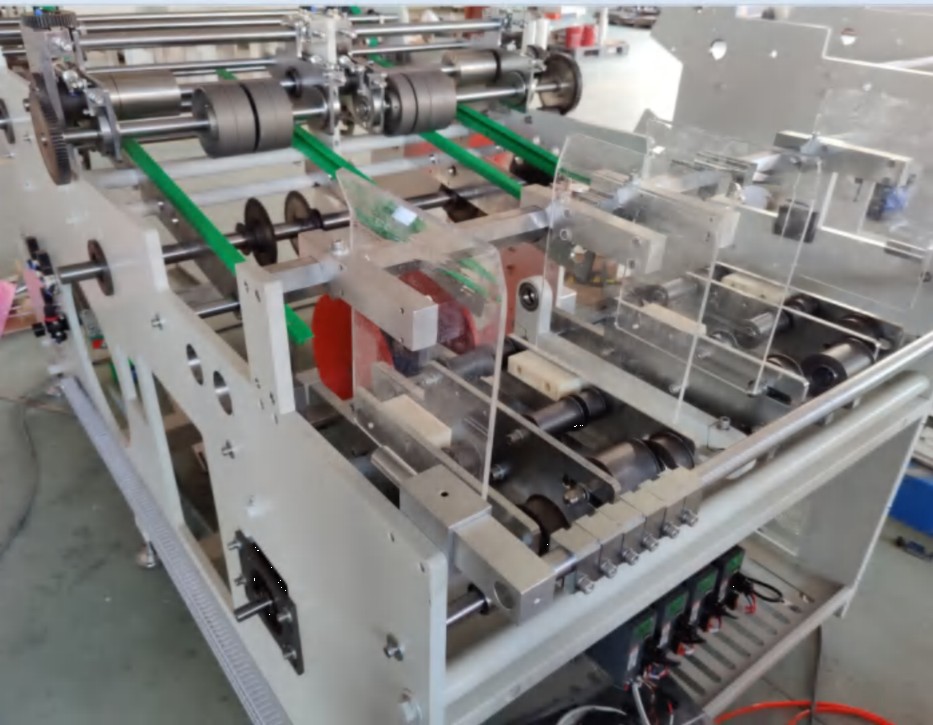

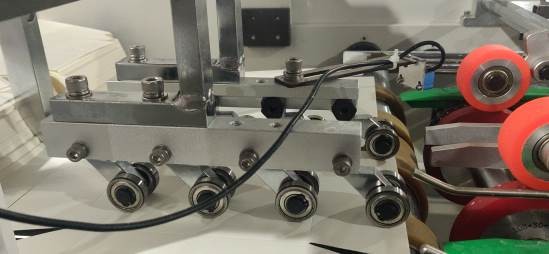

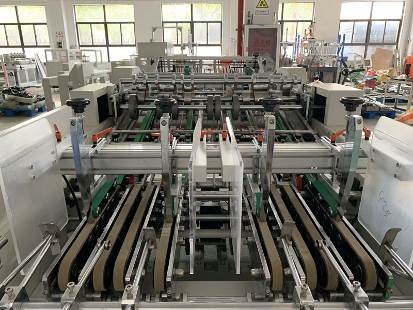

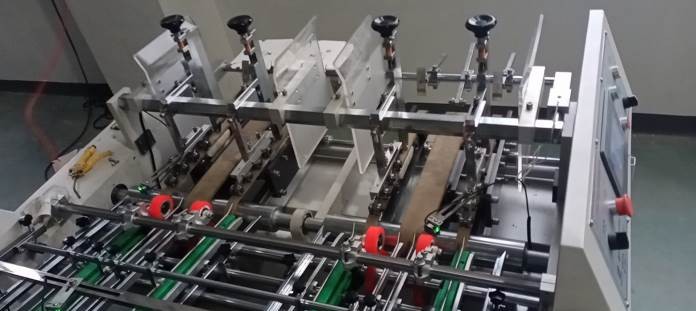

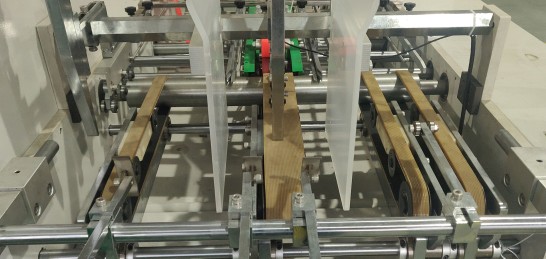

We are using same structure as the folder glue machine, the paper will be delivered more smoothly. And hard aluminium material, much better and use imported belt, the machine will stop if the machine doesn’t delivery paper or the machine is not in a correct way, we are also using servo motor for feeding.

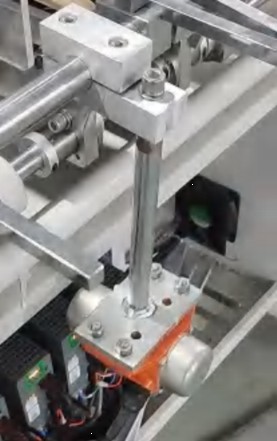

At the beginning of paper feeding part, we install the vibrator, the quality of the output products will be increased when feeding precision is high, and it can make paper feed more smoothly.

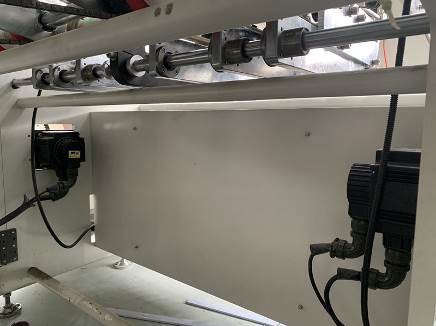

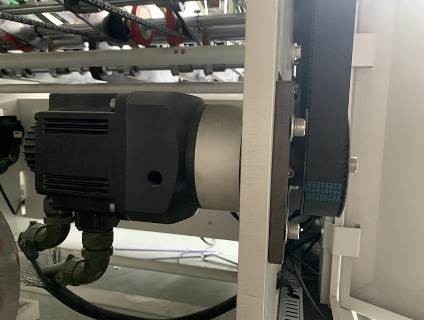

We are using 4 servo system - two servo motors for paper feeding, one servo motor for paper sending, one servo motor for molding. The structure is much easier and it has less damageable parts with lower maintenance cost, you could do the most adjustments by Touch Screen Program PLC. If you only run the single lane, you could turn off the second lane, they are independente.
