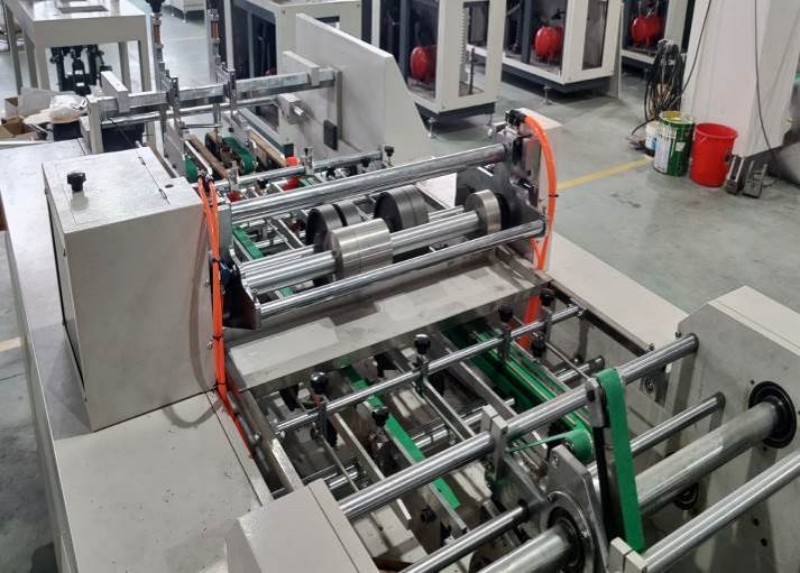

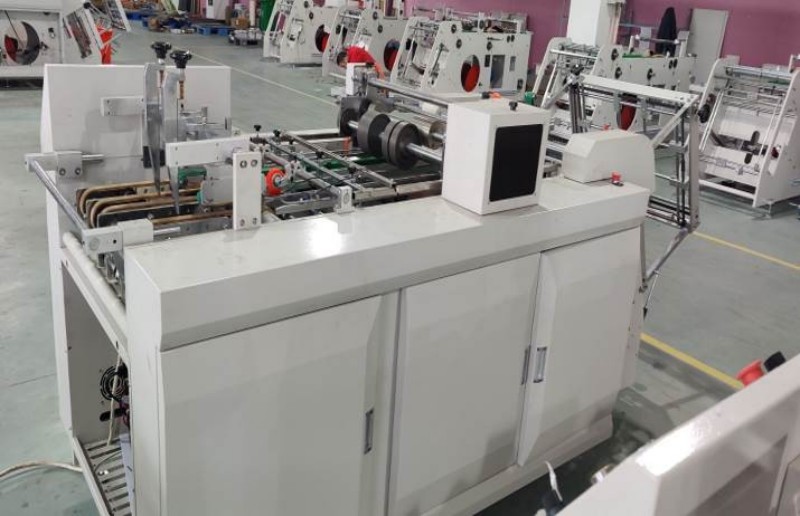

ECE-1200 Single Working Station Carton Erecting Machine
Carton forming machine is an ideal equipment for the production of carton boxes, such as hamburgers, french fries boxes, fried chicken boxes, children's lunch boxes, take-out boxes, triangular pizza boxes, etc. The structure is sturdy, good quality, low noise, and high efficiency. It has a paper feeding unit, an adjustment unit, a water unit, a forming unit, a finished product collection unit and a counting unit.
| Technical Parameter | |
| Paper weight | 180—600gsm Cardboard / Laminated / Corrugated paper |
| Speed | 144pcs / per min (according to box type ) |
| Paper thickness | ≤1.6mm |
| Paper box size | L: 100-450mm
W: 100-600mm H: 15-200m |
| Glue material | Water glue |
| Paper size | Max: 650mm(W)*500mm(L) |
| Max Box Size | 450mm*400mm |
| Min Box size | 50mm*30mm |
| Air requirement | 2kgs/cm² |
| Dimension | 3700*1350*1450mm |
| Voltage | 380V 50Hz / 220V 50Hz |
| Total Power | 3kw |
| Machine Weight | 1700kg |

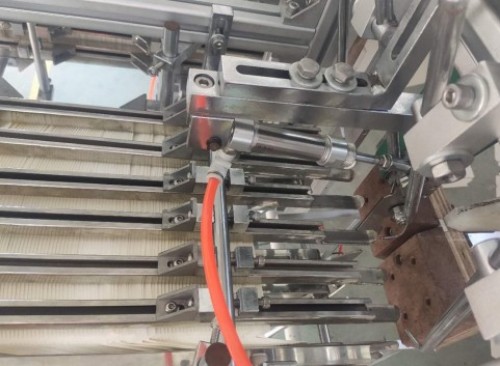

Pneumatic Air Cylinder Knife (for burger box) First innovated |
||
 |
Suitable for all kind of material of Burger box
Traditional cutter, can not handle thick paper when forming burger box.If use such knife, product can get done easily and perfectly. |
|
Highest Machine Configuration
|
||
Full Servo Control |

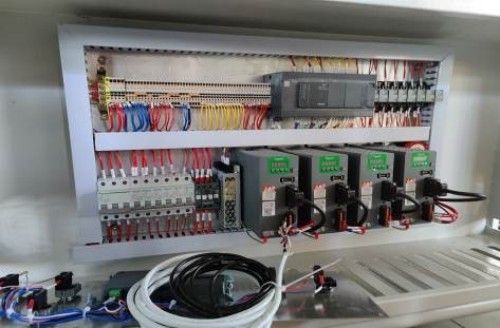

Full set of Schneider (France) electronic device |
Auto Lubrication System |
Unique Machine Design |
||

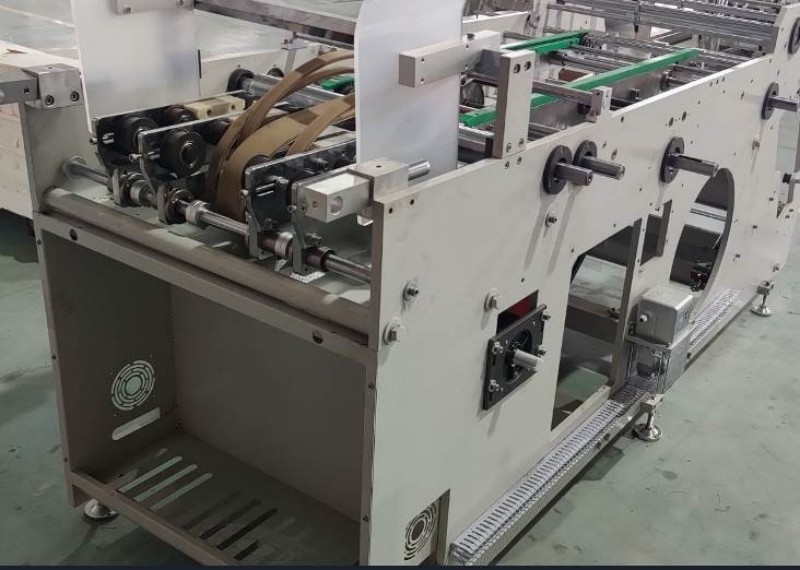

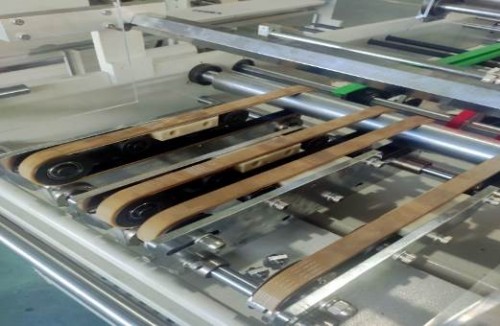

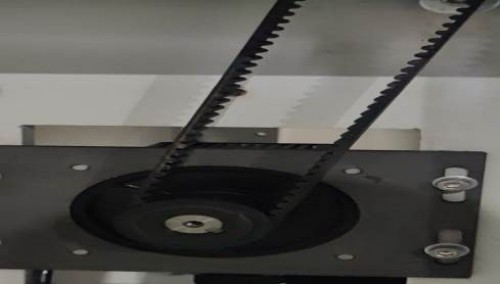

Belt structure , low noise, easy maintenance , longer life , high precision Belt Structure |
Cam pusher design，reduce the wearing a lot.Better design concept than Taiwan and German.
Cam Pushing System(Secret) |

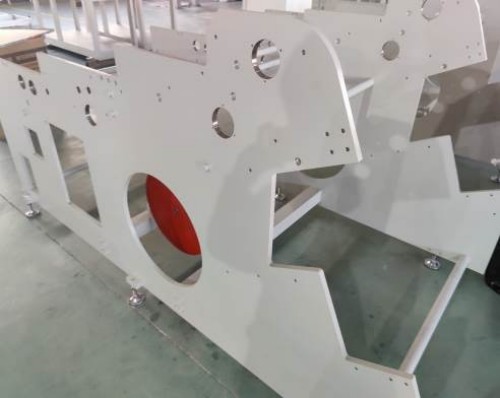

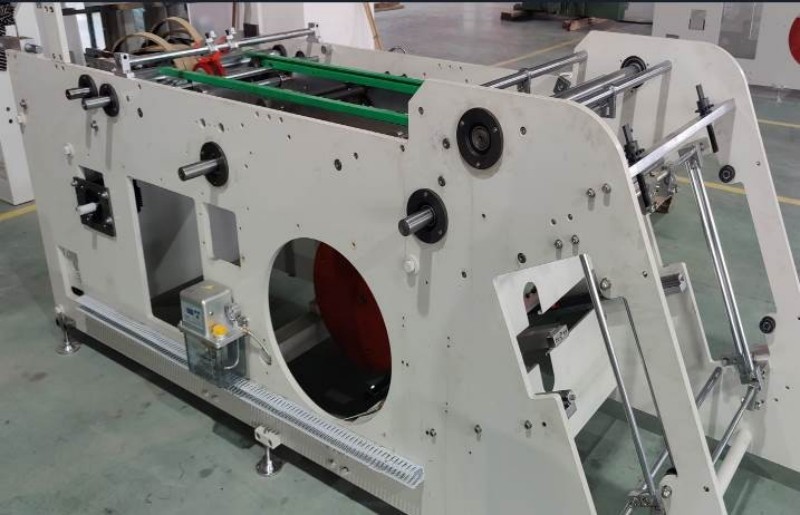

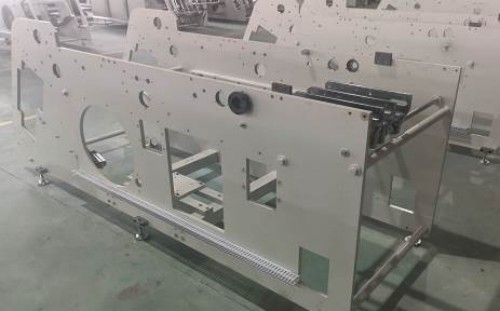

Thick walls, Full Machine weight is exceed 2800KG Machine Running Stably at a high speed |
Imported electrical wire & device, bearings / True Materials |
||
Full machine paint with stove vanish Stove vanish Painting prevents the machine get corroded by glue |

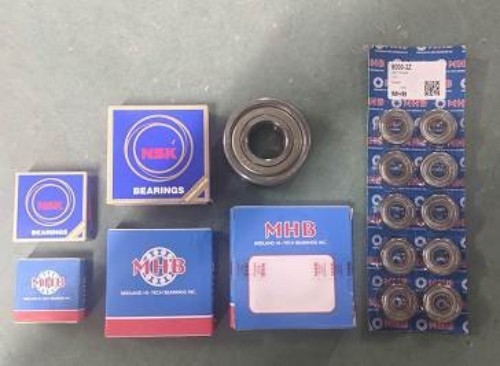

Imported NSK bearings Wear-proof belt |

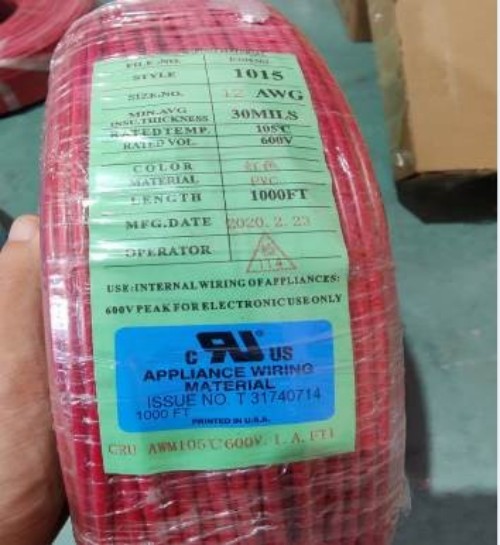

Imported electrical wire, fireproofing grade doubled |
Double Machine Service Life |
||
| Double Guide Rail, Reduce Friction damage of pusher
Double Machine Life |

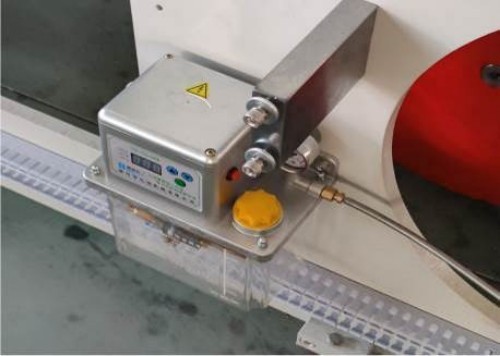

 Auto Lubrication system to protect the getting damaged
Auto Lubrication |

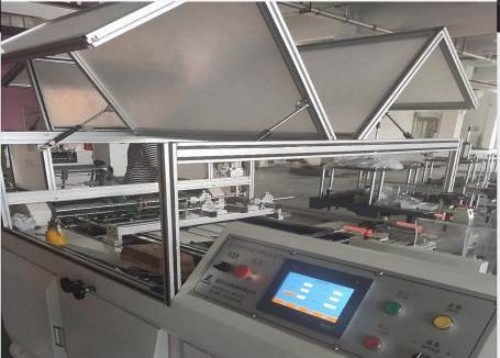

 Protection shield
Ensure Operator Safety(Optional) |
| Name |
Brand |
| Bearing |
NSK |
| Air Cylinder |
AirTec |
| Belt |
Japan import |
| Chain |
Japan import |

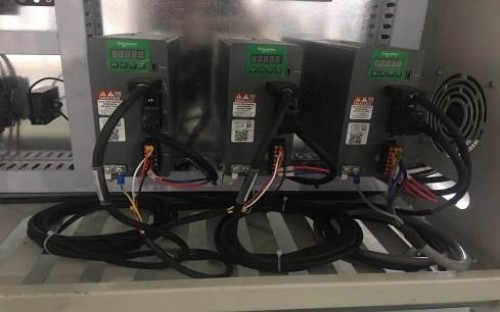

| Servo driver |
Schneider |
| Servo motor |
Schneider |
| PLC |
Schneider |
| Screen |
Schneider |
| Drive |
Schneider |
| Linear guideway |
Taiwan HIWIN |
| infrared detector |
Thecoo |
| Switch |
Schneider |
| planetary reduction gear |
Taiwan |
| Relay |
Schneider |
| Terminal |
Schneider |
| Circuit breaker |
Schneider |
| electronic components |
Schneider |
| Air pipe |
Delixi Electric |
| Solenoid valve |
AirTac |
| Screw |
stainless steel |
| Similar carton | Produce Speed（Different with the size of box） |
 Open square carton |
120-150 boxes per min |
 Hot dog box |
80-120 boxes per min |
 Burger box |
80-120 boxes per min |
 Corrugated Paper Box With Lid |
60-80 boxes per min |
 Take-away box |
60-110 boxes per min |
 Square box with cover |
60-110 boxes per min |
 Irregular triangle box |
30-50 boxes per min |
|
NAME |
PICTURE |
QTY |

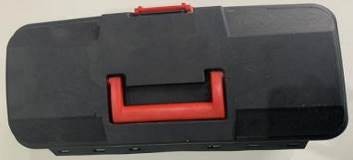

| Tool box |  |
1 box |

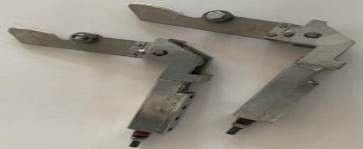

| Angle Wrapper for take away box use |  |
1set |

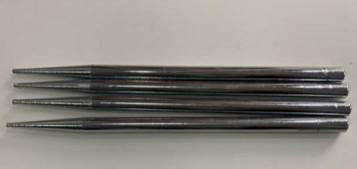

| Auxiliary strip(thick+thin) |  |
4pcs + 4pcs |

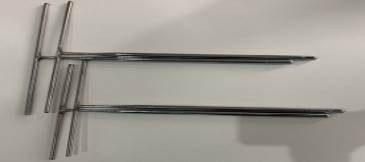

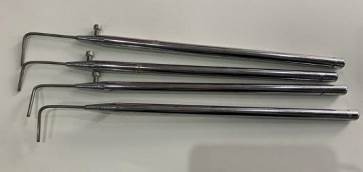

| Crochet |  |
4pcs |

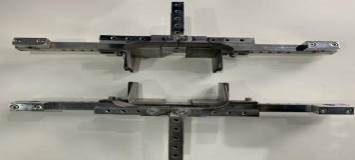

| Auxiliary strip(long) |  |
4pcs |

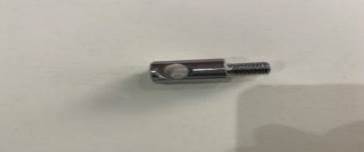

| Crochet holder |  |
1pc |
| Hamburger box knife |  |
2pcs |

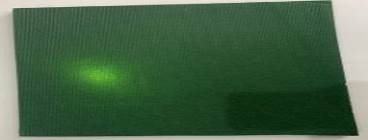

| FoamFor wheel glue system use |  |
1pc |
| Auxiliary strip base |  |
5pcs |
