CUT SIZE PRODUCTION LINE (CHM A4-2 CUT SIZE SHEETER)

Short Description:

EUREKA A4 automatic production line is composed of A4 copy paper sheeter , paper ream packing machine , and box packing machine. Which adopt the most advanced twin rotary knife synchronized sheeting to have a precise and high productivity cutting and automatic packing.

This serie includes High productivity line A4-4 (4 pockets) cut size sheeter, A4-5 (5 pockets) cut size sheeter.

And compact A4 production line A4-2(2 pockets) cut size sheeter.


Product Detail

Other product information

Product Introduction

EUREKA A4 automatic production line is composed of A4 copy paper sheeter , paper ream packing machine , and box packing machine. Which adopt the most advanced twin rotary knife synchronized sheeting to have a precise and high productivity cutting and automatic packing.
This serie includes High productivity line A4-4 (4 pockets) cut size sheeter, A4-5 (5 pockets) cut size sheeter.
And compact A4 production line A4-2(2 pockets) cut size sheeter.
EUREKA, which produces over 300 machines annually, has been started the paper converting equipment business for over 25 years, couple our capacity with our experience in oversea market, reflecting that EUREKA A4 cut size series are the best in market. You have our technical support and one year warranty for each machine.

CHM A4 Series

Model A4-2

Model A4-4

Model A4-5

Process

CAC1

Product Comparisons

Model

A4-2

A4-4

A4-5

Paper width

Gross width 850mm, net width 845mm

Gross width 850mm, net width 845mm

Gross width 1060mm, net width 1055mm

Cutting numbers

2 cutting – A4 210mm (width)

4 cutting – A4 210mm (width)

5 cutting – A4 210mm (width)

Paper Roll Diameter

Max.Ø1500mm. Min.Ø600mm

Max.Ø1200mm. Min.Ø600mm

Max.Ø1200mm. Min.Ø600mm



Output of the ream



12 reams/min

27 reams/min (4 reels feeding)

33 reams/min (5 reels feeding)



42 reams/min



Paper Core Diameter

3” (76.2mm) or 6” (152.4mm) or according to the clients’ demand

3” (76.2mm) or 6” (152.4mm) or according to the clients’ demand

3” (76.2mm) or 6” (152.4mm) or according to the clients’ demand



Paper Grade

High-grade copy paper; High-grade office paper; High grade free wood paper etc.

High-grade copy paper; High-grade office paper; High grade free wood paper etc.

High-grade copy paper; High-grade office paper; High grade free wood paper etc.

Paper Weight Range



60-100g/m2



60-100g/m2



60-100g/m2



Sheet Length

297mm (specially design for A4 paper, the cutting length is 297mm)

297mm (specially design for A4 paper, the cutting length is 297mm)

297mm (specially design for A4 paper, the cutting length is 297mm)

Ream Amount

500 sheets Max. Height: 65mm

500 sheets Max. Height: 65mm

500 sheets Max. Height: 65mm



Production Speed

Max 0-300m/min (depends on different paper quality)

Max 0-250m/min (depends on different paper quality)

Max 0-280m/min (depends on different paper quality)

Max Numbers of Cutting



1010 cuts/min



850 cuts/min



840 cuts/min

Estimated Output

8-10 tons (based on the production time of 8-10 hours)

18-22 tons (based on the production time of 8-10 hours)

24-30 tons (based on the production time of 8-10 hours)

Load of cutting

200g/m2 (2*100g/m2)

500g/m2 (4 or 5 rolls)

500g/m2 (4*100g/m2)

Cutting Accuracy

±0.2mm

±0.2mm

±0.2mm

Cutting Condition

No variation of the speed, no break, cut all the paper at one time and need the eligible paper

No variation of the speed, no break, cut all the paper at one time and need the eligible paper

No variation of the speed, no break, cut all the paper at one time and need the eligible paper

Main Power Supply



3-380V/50HZ



3-380V/50HZ



3-380V/50HZ

Voltage

220V AC/ 24V DC

220V AC/ 24V DC

220V AC/ 24V DC

Power

23kw

32kw

32kw

Air Consumption



300NL/min



300NL/min



300NL/min

Air Pressure

6 Bar

6 Bar

6 Bar

Edge Cutting

2*10mm

2*10mm

2*10mm

Product Comparison

CAC2

  • Previous:
  • Next:

  • Configuration

    CHM-A4-2

    CAC3CAC4CAC5  CAC6CAC7

    Shaftless Unwind Stand:
    a.Air cooled pneumatically controlled disc brakes on each arm are adopted
    b.Mechanical chuck (3’’, 6’’) with powerful clip power.
    De-curling unit:
    Motorized Decurler system make the paper plane effectively especially when it approaches paper core especially.
    Twin Rotary Synchro-fly Knife:
    Spiral knife-groove matched with no backlash gear to achieve the most advanced cutting technic in the world by using synchro-fly shearing way.
    Slitting knives:
    The heavy duty pneumatic slitters ensure stable and clean slitting.
    Paper Transportation and Collecting system:
    a.Upper ad lower transportation belt press paper with automatic tension system.
    b.Automatic device for paper stack up and down.

    Standard

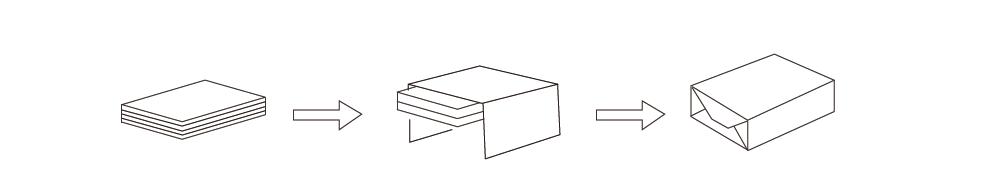

    CHM-A4B Ream Wrapping Machine

    CAC8

    CAC12 CAC11 CAC9 CAC10

    CHM-A4B Ream Wrapping Machine

    This machine is special for A4 size ream packing, which is controlled by PLC and servo motors so that machine is running more precise, less maintenance, lower noise, easier operation and service.

    Optional

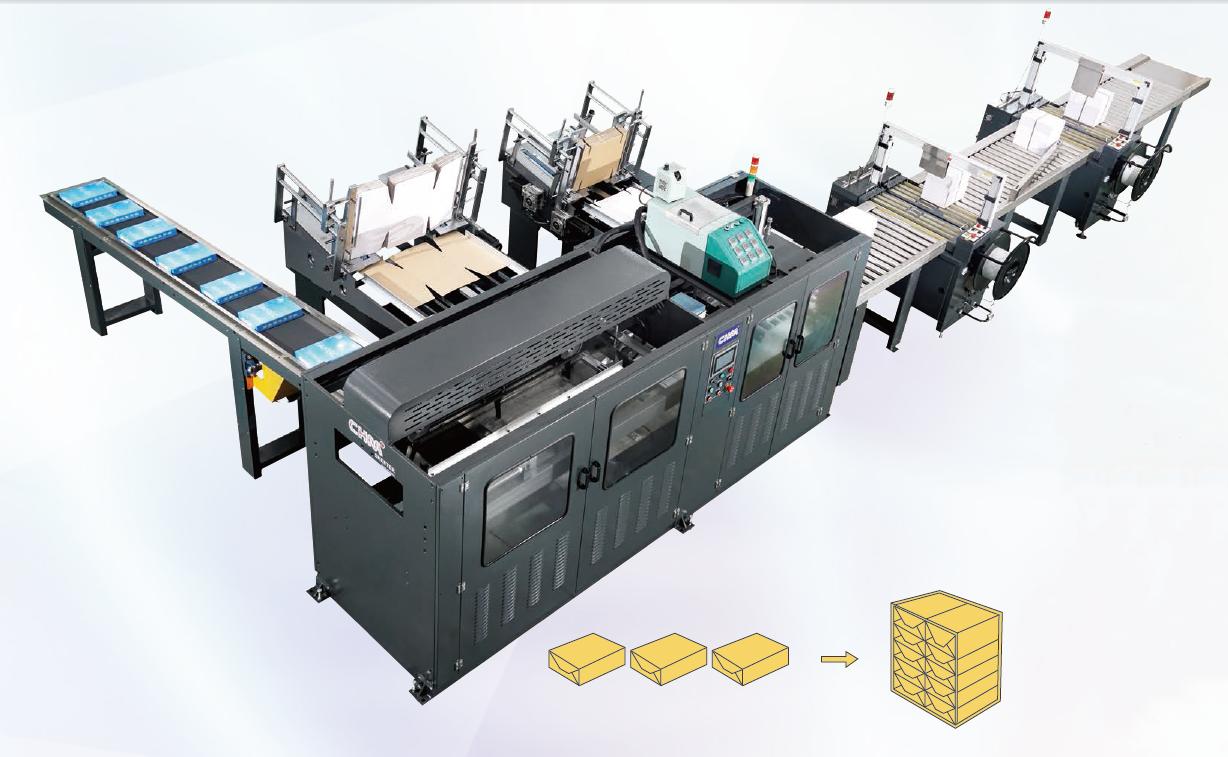

    CHM-A4DB Box Packing Machine

    Description:

    Integrates the highly advanced electronics automation, PLC control system and mechanical automation. All-in-one aper conveying, ream paper col-celtion, ream paper counting and collection. Automatic loading, automatic covering, automatic belt, transforms roller paper into packed A4 paper boxes all-in-one.

     CAC13

    Technical Parameters
    Box machine specification Gross width: 310mm; Net width:297mm
    Bottom carton specification 5 packages/box; 10 packages/box
    Bottom carton specification 803mm*529mm/ 803mm*739mm
    Upper carton specification 472mm*385mm/ 472mm*595mm
    Design speed Max 5-10 boxes/min
    Operation speed Max 7 boxes/min
    Power (approx) 18kw
    Compressing air consumption (approx) 300NL/min
    Dimension (L*W*H) 10263mm*5740mm/2088mm

    Auto-production line

    Roll cutted into A4 paper  Ream output  Ream counting &collection  Automatic box loading

    Automatic conveying  Automatic covering  Automatic strapping  A4 paper boxes
