UV curable varnish

A high speed spot UV coating machine applies a glossy, UV-cured varnish to selected areas of printed materials, instantly hardening the coating with ultraviolet light. This process adds both visual and tactile contrast, enhancing the appearance and durability of items like business cards and packaging. Printing businesses value these machines for their rapid operation, precise application, and ability to deliver consistent, high-quality finishes. As demand grows for premium packaging and efficient production, spot UV coating technology becomes a critical investment for commercial printers.

Key Takeaways

●High speed spot UV coating machines apply glossy, durable finishes quickly, improving print quality and protecting materials.

●These machines boost production speed, allowing print shops to handle large orders and meet tight deadlines efficiently.

●Spot UV coating enhances visual appeal by adding shiny highlights that make logos and text stand out on printed products.

●Choosing the right machine depends on business needs, focusing on speed, substrate compatibility, and easy maintenance.

●Regular maintenance and best practices keep machines running smoothly, reduce downtime, and extend their lifespan.

How It Works

Spot UV Coating Process

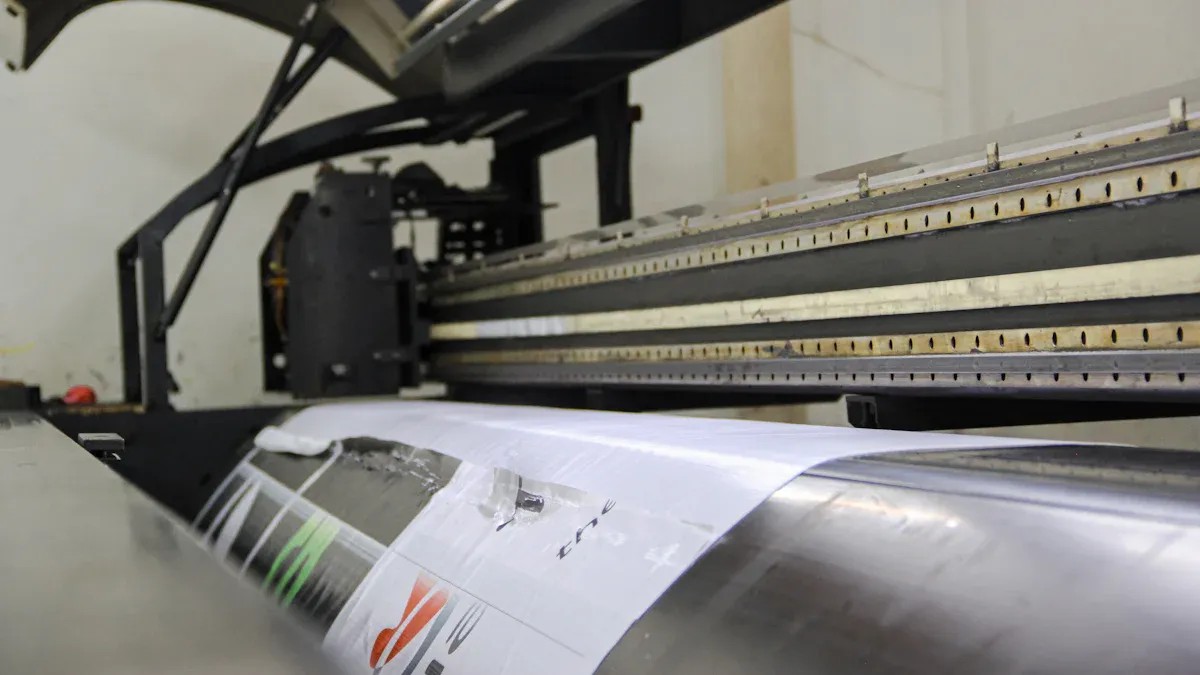

A high speed spot UV coating machine uses a precise process to add glossy highlights to printed sheets. The process begins with an automatic feeding system. This system uses high-speed feeders with multiple suckers to pick up and move sheets smoothly. The machine can handle up to 12,000 sheets per hour, making it ideal for large print runs.

After feeding, the sheets pass through a powder removal system. This system uses water to remove excess powder from the surface, achieving up to 75% efficiency. The powder removal step keeps the sheets clean and ready for coating.

Next, the machine applies a UV varnish to selected areas. A roller coating system with a chrome-plated anilox roller and doctor blade ensures the varnish goes only where needed. The machine uses a three-roller coating head and a synchronous belt wheel to keep the coating even and reduce lines.

Once coated, the sheets move into the curing section. Here, UV and infrared (IR) lamps dry and harden the varnish instantly. The UV lamps adjust their brightness based on the machine’s speed, saving energy and preventing overheating. A fan cooling unit and ventilation system keep the sheets flat and prevent curling. The machine also uses sensors and safety features to protect both the paper and the operator.

Other important features include servo feeders for steady sheet movement, non-stop systems for continuous operation, and high-quality vacuum pumps for reliable sheet handling. The machine also uses a 15-inch touch screen for user-friendly control and a mechanical double sheet detector for accuracy.

Technology Overview

Modern spot UV coating machines use advanced technology to improve performance and efficiency. Many machines now feature nanotechnology-infused UV coatings. These coatings increase durability and scratch resistance, making finished products last longer.

Some machines use IoT-enabled smart systems. These systems monitor the coating process in real time, predict maintenance needs, and help control quality. This reduces costs and increases productivity.

Plasma-enhanced UV coatings allow for rapid curing at lower energy levels. This supports energy efficiency and helps reduce the carbon footprint of printing operations. New UV curing equipment, such as UV flash light technology, can cure coatings in less than 60 seconds. These systems provide even light distribution, which is important for consistent results.

Real-time monitoring tools, like FTIR instruments, track the curing process and help optimize speed and effectiveness. These tools also reduce problems caused by oxygen, which can affect coating quality.

Spot UV coating machines also offer environmental benefits. They produce fewer volatile organic compounds (VOCs) than traditional methods, lowering harmful emissions. Instant UV curing reduces energy use, and precise ink application minimizes waste. However, proper disposal of UV inks remains important for maintaining environmental benefits.

Benefits

Speed and Efficiency

High speed spot UV coating machines transform production lines with their rapid operation and advanced automation. These machines reduce curing times from hours to seconds, allowing print shops to complete jobs much faster than with traditional coating methods. Operators can process up to 16,000 sheets per hour on advanced models, such as the RMGT 790, which use LED-UV curing technology. This instant drying capability means businesses can handle larger orders and meet tight deadlines with ease.

● Production cycles become shorter, leading to faster turnaround and higher output.

● UV curing systems use less energy than thermal curing, lowering operating costs and supporting sustainability goals.

● Automation and smart system designs boost consistency and minimize manual intervention.

● Faster curing enables quicker prototyping and helps companies respond to customer demands more efficiently.

Print Quality

Spot UV coating machines deliver a premium finish that enhances both the look and feel of printed materials. The process applies a glossy varnish to selected areas, creating a sharp contrast with matte backgrounds. This effect makes logos, images, and text stand out, improving brand recognition and shelf appeal.

Spot UV coating deepens colors and adds tactile effects, giving packaging and marketing materials a professional, high-end appearance. The SG-A Automatic UV Oil Coating Machine, for example, produces a smooth, consistent finish that protects against moisture and wear. Its precise application system supports various paper weights and coating types, offering flexibility for different projects.

Careful design and quality control help prevent alignment and coverage errors, ensuring each piece meets high standards. The UV curing process also emits fewer pollutants, making it an eco-friendly choice for print shops.

Cost Savings

Investing in high speed spot UV coating machines leads to significant cost savings for commercial printers. These machines require less labor due to automation and faster processing speeds. Companies like Ethan Allen have seen a 25% increase in production and reduced waste after adopting robotic UV coating systems. They recouped their investment within a year, thanks to increased output and lower operating costs.

● Lower energy consumption from UV curing reduces utility bills.

● Fewer finish coats and shorter curing times cut material and labor expenses.

● Waste reduction means less money spent on raw materials and disposal.

● Improved durability of coated products decreases returns and customer complaints.

Spot UV Coating Applications

Commercial Printing

Spot UV coating plays a major role in commercial printing. Printers use this technique to enhance a wide range of products. Common items include business cards, brochures, presentation folders, book covers, and rack cards. The coating highlights specific areas, such as logos or text, making them stand out against matte backgrounds. This process not only adds shine but also protects printed surfaces from spills, scuffs, and smudges.

● Business cards gain a professional look and last longer.

● Brochures and folders attract attention with glossy accents.

● Book covers resist fingerprints and stains.

Marketing Materials

Marketers rely on spot UV coating to make materials more effective. The process applies a glossy layer to targeted areas, such as logos or images, for a premium look. This technique creates a strong visual contrast with matte or uncoated surfaces. It also adds a tactile feel that engages customers.

● Spot UV coating highlights key design elements, making them pop.

● It gives brochures, business cards, and packaging a luxurious finish.

● The coating protects against scratches and moisture, increasing lifespan.

● Marketers can use it on many materials, including paper, cardboard, and some plastics.

● Combining spot UV with embossing or foil stamping creates multi-dimensional effects.

Specialty Products

Specialty products benefit greatly from spot UV coating. Printers often use this method on thick card stocks, silk laminated, or velvet laminated materials. Products such as premium business cards, postcards, greeting cards, hang tags, and trading cards stand out with this finish. The coating can highlight images, logos, or text with high precision.

● Raised spot UV adds texture and depth, especially on velvet laminated cards.

● The finish increases shine, protects colors, and resists smudges.

● Spot UV works on various materials, including BOPP and PET films.

Choosing a Machine

Key Features

When selecting a high speed spot UV coating machine, buyers should focus on features that ensure quality, safety, and efficiency. Machines with ISO 9001 and CE certifications meet strict international standards for quality and safety. Some models also comply with EU safety directive 2006/42/EC and BV certification, which guarantee environmental and operational safety. Quality assurance protocols, such as SPC data tracking and coating thickness validation, help maintain consistent results.

Key features often include:

● Automated feeding and delivery systems for smooth operation

● Adjustable coating thickness for different finishes

● Compatibility with a wide range of substrates, from thin paper to thick boards

● Energy-saving UV curing technology

● User-friendly touch screen controls

Selection Guide

Choosing the right machine depends on business size, production volume, and application needs. Small businesses may prefer compact models with smart industrial design and mobility. Larger enterprises often require machines with higher speeds and bigger footprints.

Manufacturers with strong reputations, like Double 100, provide reliable machines and excellent customer support.

Matching Needs

Commercial printers should match machine capabilities to their production requirements. For example, the AP-T9super 6090 UV Printer handles multi-layer printing and works with many substrates, such as leather, metal, and glass. Adjustable platforms allow for thicker materials, while automation features reduce downtime.

Printers can integrate these machines into existing workflows, using design software to prepare spot UV layers and ensure precise alignment. Machines that support automated job setup and variable image barcodes make changeovers quick and efficient. By evaluating speed, substrate compatibility, and workflow integration, businesses can choose a machine that fits their needs and supports future growth.

Maintenance

Routine Care

Routine care keeps high speed spot UV coating machines running smoothly and extends their lifespan. Operators should follow a regular maintenance schedule to prevent problems and maintain coating quality.

●Clean rollers and ink ducts often. This prevents buildup and ensures even coating.
●Lubricate moving parts with the correct lubricants. If specialized products are not available, machine oil works as an alternative.
●Drain dampening solutions regularly. This step avoids contamination that can affect how the coating flows and sticks.
●Inspect the machine for wear and tear. Early checks help catch issues before they become serious.
●Train operators thoroughly. Well-trained staff can spot problems early and keep the machine in top shape.
●Use high-quality materials designed for the specific coating process. This reduces maintenance needs and improves results.
●Set up a reliability-centered maintenance program. This approach helps identify and fix risks before breakdowns happen.
●Adopt predictive maintenance tools, such as AI and data analytics. These tools help anticipate failures and reduce downtime.

Regular care not only improves machine performance but also saves money by reducing repairs and extending equipment life.

Best Practices

Following best practices ensures the reliability and longevity of spot UV coating machines. Companies should move from reactive repairs to preventive and predictive maintenance. This shift keeps machines running longer and more efficiently.

● Use predictive and reliability-centered maintenance programs. These programs focus on finding root causes and fixing them before failures occur.

● Apply nondestructive testing methods, like fluorescent coatings with black light inspection, to detect early coating failures or surface contaminants.

● Keep coated surfaces clean. Fluorescent cleaners and black light checks help confirm that contaminants are gone.

● Follow the manufacturer’s maintenance guidelines. Proper surface preparation and coating application protect the machine and the finished product.

● Choose precision components, such as anodized rollers and slot-die heads made from stainless steel or titanium. These parts ensure consistent coating quality and resist wear.

● Employ corona surface treaters to improve adhesion and coating reliability.

● Integrate inline inspection systems to monitor coating quality in real time and reduce defects.

● Use mounting systems and edge guides for precise alignment, which minimizes waste and mechanical wear.

● Maintain temperature control with heated slot-die controllers and ovens. This step supports efficient drying and curing.

High speed spot UV coating machines deliver sharp, vibrant prints with a durable, smudge-resistant finish. They support a wide range of products, from business cards to packaging, and help printers meet tight deadlines with fast turnaround. When selecting a machine, businesses should consider speed, coating flexibility, energy efficiency, and ease of maintenance. Newer models offer advanced features and support future growth. Careful machine selection ensures long-term value and keeps print operations competitive.

FAQ

What materials can a high speed spot UV coating machine handle?

These machines work with paper, cardboard, and some plastics. They support a wide range of thicknesses, from thin sheets to heavy boards. Operators should check the machine’s specifications for exact material compatibility.

How does spot UV coating improve print durability?

Spot UV coating adds a protective layer to printed surfaces. This layer resists scratches, moisture, and fading. Products last longer and maintain their appearance even with frequent handling.

Is spot UV coating environmentally friendly?

Modern machines use UV curing, which produces fewer volatile organic compounds (VOCs) than traditional methods. Many systems also use energy-efficient lamps. Proper disposal of UV inks remains important for environmental safety.

How often should operators perform maintenance?

Operators should clean and inspect the machine daily. Lubrication and deeper checks should occur weekly or monthly, depending on usage. Following the manufacturer’s schedule helps prevent breakdowns and ensures consistent quality.

Can spot UV coating be combined with other finishes?

Yes. Printers often combine spot UV with embossing or foil stamping. This creates unique visual and tactile effects. Combining finishes helps products stand out and adds value for customers.
