Good Quality A4 Copy Paper Cutting Line - CUT SIZE PRODUCTION LINE (CHM A4-5 CUT SIZE SHEETER) – Eureka Detail:
|
Model |
A4-2 |
A4-4 |
A4-5 |
|
Paper width |
Gross width 850mm, net width 845mm |
Gross width 850mm, net width 845mm |
Gross width 1060mm, net width 1055mm |
|
Cutting numbers |
2 cutting – A4 210mm (width) |
4 cutting – A4 210mm (width) |
5 cutting – A4 210mm (width) |
|
Paper Roll Diameter |
Max.Ø1500mm. Min.Ø600mm |
Max.Ø1200mm. Min.Ø600mm |
Max.Ø1200mm. Min.Ø600mm |
|
Output of the ream |
12 reams/min |
27 reams/min (4 reels feeding) 33 reams/min (5 reels feeding) |
42 reams/min |
|
Paper Core Diameter |
3” (76.2mm) or 6” (152.4mm) or according to the clients’ demand |
3” (76.2mm) or 6” (152.4mm) or according to the clients’ demand |
3” (76.2mm) or 6” (152.4mm) or according to the clients’ demand |
|
Paper Grade |
High-grade copy paper; High-grade office paper; High grade free wood paper etc. |
High-grade copy paper; High-grade office paper; High grade free wood paper etc. |
High-grade copy paper; High-grade office paper; High grade free wood paper etc. |
|
Paper Weight Range |
60-100g/m2 |
60-100g/m2 |
60-100g/m2 |
|
Sheet Length |
297mm (specially design for A4 paper, the cutting length is 297mm) |
297mm (specially design for A4 paper, the cutting length is 297mm) |
297mm (specially design for A4 paper, the cutting length is 297mm) |
|
Ream Amount |
500 sheets Max. Height: 65mm |
500 sheets Max. Height: 65mm |
500 sheets Max. Height: 65mm |
|
Production Speed |
Max 0-300m/min (depends on different paper quality) |
Max 0-250m/min (depends on different paper quality) |
Max 0-280m/min (depends on different paper quality) |
|
Max Numbers of Cutting |
1010 cuts/min |
850 cuts/min |
840 cuts/min |
|
Estimated Output |
8-10 tons (based on the production time of 8-10 hours) |
18-22 tons (based on the production time of 8-10 hours) |
24-30 tons (based on the production time of 8-10 hours) |
|
Load of cutting |
200g/m2 (2*100g/m2) |
500g/m2 (4 or 5 rolls) |
500g/m2 (4*100g/m2) |
|
Cutting Accuracy |
±0.2mm |
±0.2mm |
±0.2mm |
|
Cutting Condition |
No variation of the speed, no break, cut all the paper at one time and need the eligible paper |
No variation of the speed, no break, cut all the paper at one time and need the eligible paper |
No variation of the speed, no break, cut all the paper at one time and need the eligible paper |
|
Main Power Supply |
3-380V/50HZ |
3-380V/50HZ |
3-380V/50HZ |
|
Voltage |
220V AC/ 24V DC |
220V AC/ 24V DC |
220V AC/ 24V DC |
|
Power |
23kw |
32kw |
32kw |
|
Air Consumption |
300NL/min |
300NL/min |
300NL/min |
|
Air Pressure |
6 Bar |
6 Bar |
6 Bar |
|
Edge Cutting |
2*10mm |
2*10mm |
2*10mm |

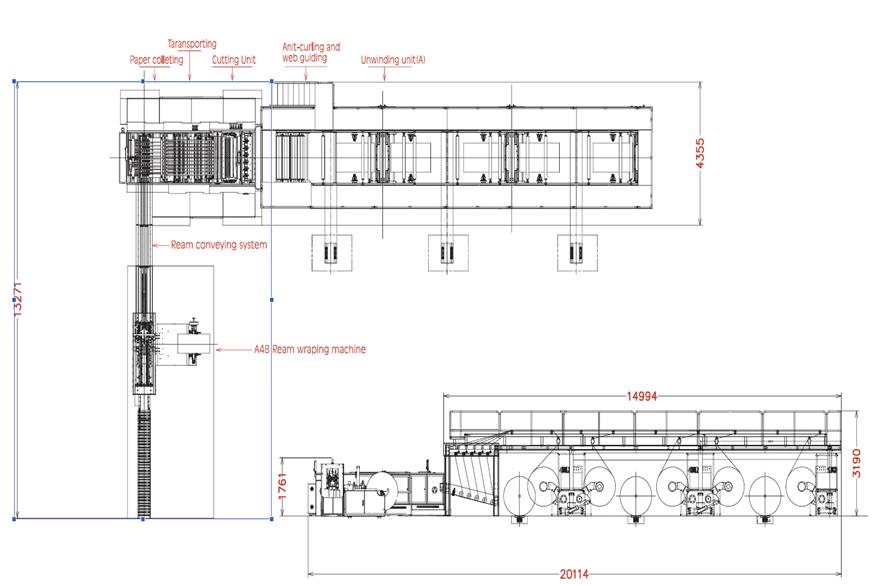

Product detail pictures:
