EUV-1060 High Speed Spot UV Coating Machine
| MODEL | EUV-1060 |
| Max. Sheet Size | 730mm×1060mm |
| Min. Sheet Size | 310mm×406mm |
| Max. Coating Area | 720mm×1050mm |
| Sheet Thickness | 80~500gsm |
| Max. Coating Speed | Up to 9000 sheets/hour (Depending on sheet weight, size and quality) |
| Power Required | 44Kw (solvent base) /40Kw (water base) |

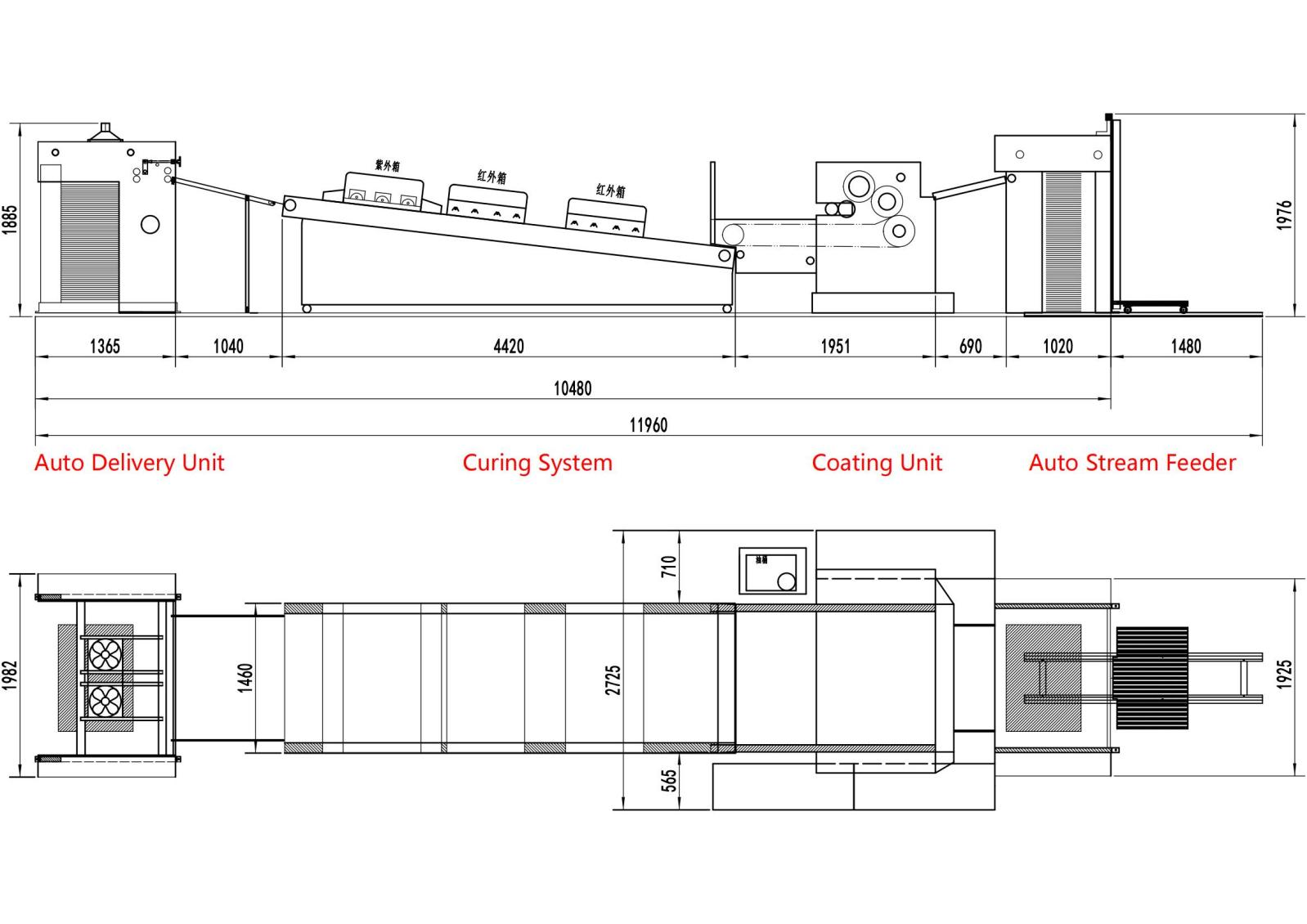

| Dimension (L×W×H) | 11960mm×2725mm×1976mm |
| Weight | 8000Kgs |
 |

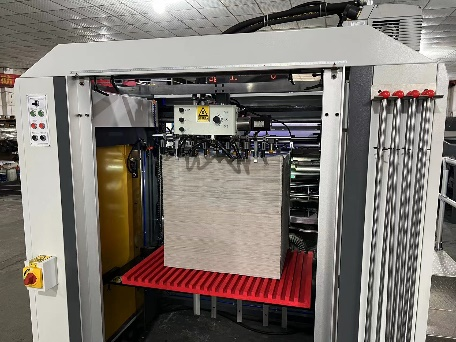

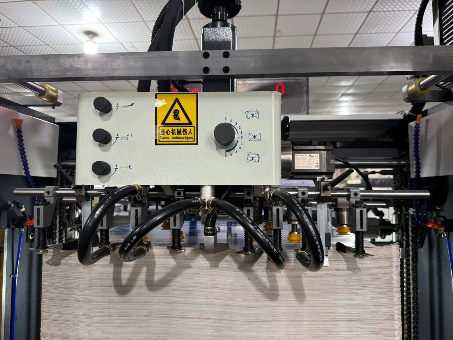

Servo Feeder: High speed Servo feeder with four sucking and four forwarding suckers can feed sheet smoothly. |
|
|
Non-stop system and pre-load device |
|
|

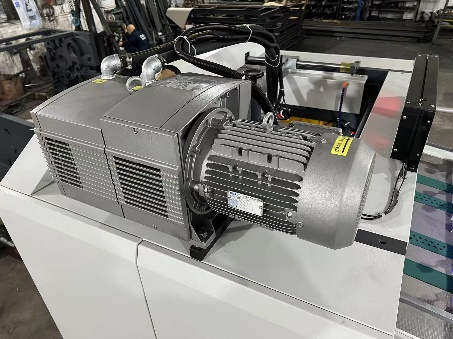

Becker pump High quality vacuum pump |
|
|

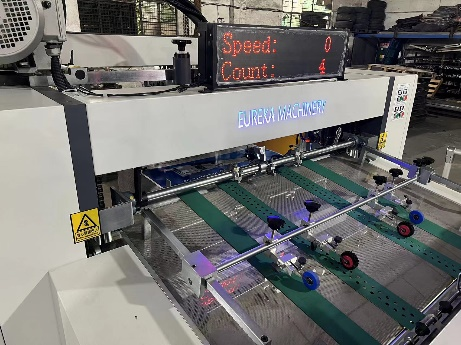

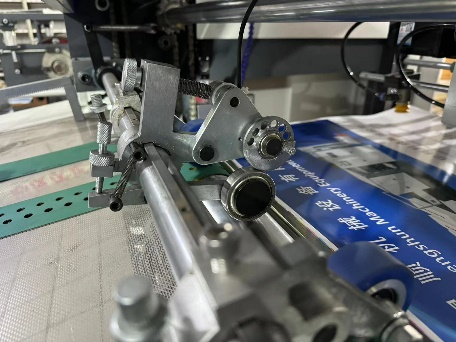

Double sheets detector Mechanical double sheets detector to ensure sheets fed one by one |
|
|
Conveyor unit |
|
|

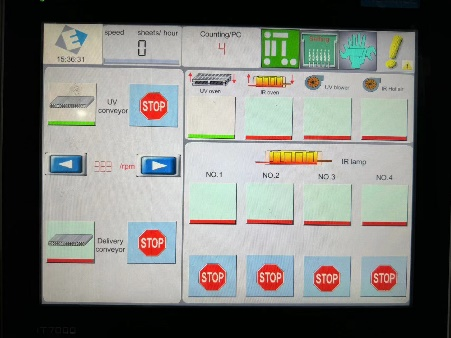

15 inch HMI with graphic icon operation Easy operation |
|
|

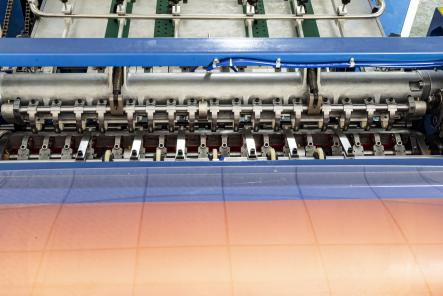

Sheet Transferring Unit : Upper swing sheet transferring method can transfer sheet smoothly at high speed to pressure cylinder exactly. |
|
|

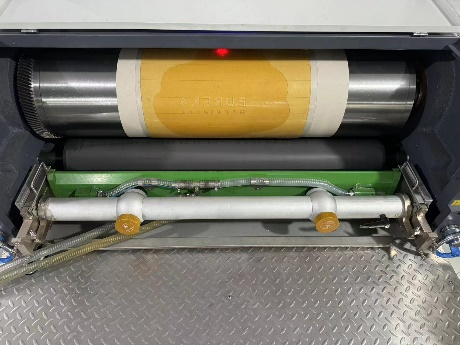

Varnish Supply with doctor blade system: Steel roller and rubber roller with metering roller reversing and doctor blade design control varnish consumption and volume to meet the demand of products and operate easily.(Varnish consumption and volume are determined by LPI of ceramic anilox roller) |
|
|

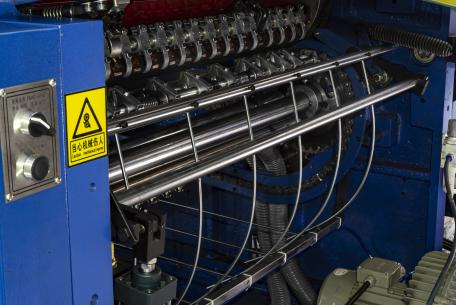

Transferring Unit : After sheet is transferred from pressure cylinder to gripper,air volume blowing for paper can support and reverse sheet smoothly,which can prevent sheet surface from being scratched. |
|
|

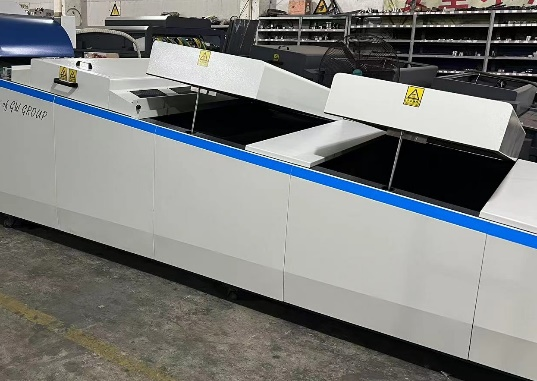

UV + IR unit l 3 UV lamps and 24 IR lamps with hot air circulation for better l UV chamber auto lift up when paper got stuck on the conveyor belt l Auto belt squareness device l Vacuum system for smooth paper convey |
|
|

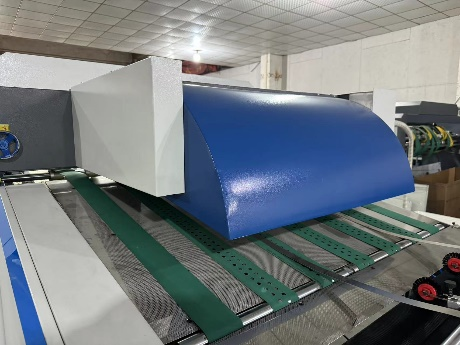

Conveying Unit with AC cooling system: Upper and lower conveying belt can form thin sheet to be curved for smoothly delivery. AC cooling system helps to cool down the temperature of the paper. |
|
|

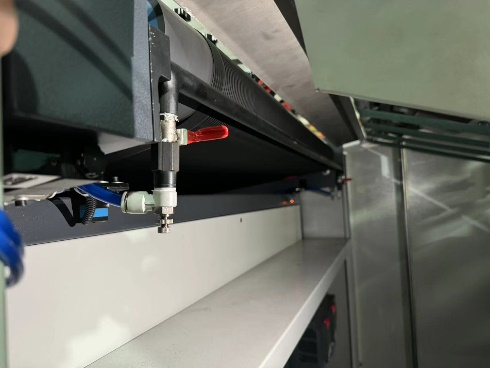

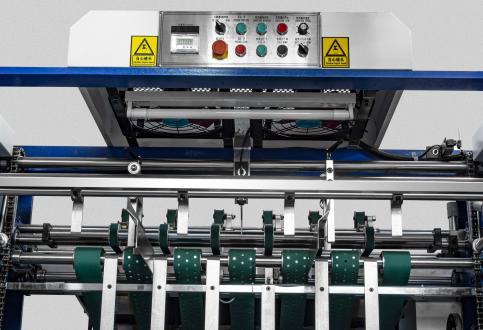

Air blowing for paper conveyor Specific air blowing system to make sure the paper goes to delivery unit smoothly |
|
|
Sheet Delivery : Automatic pneumatic patting sheet controlled by photoelectric detecting sensor make sheet pile fall automatically and collect sheet neatly. Electronic control can take out sheet sample safely and quickly for inspecting. |
|
|

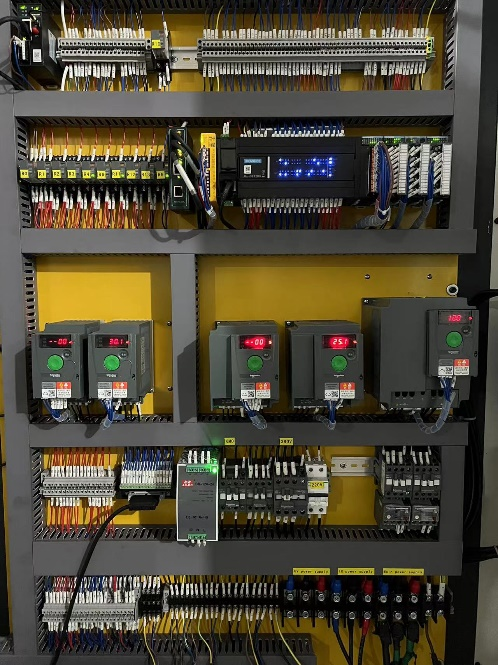

Electrical cabinet 1. Schneider low voltage components 2. Remote access system 3. Pilz safety relay |
|
No. |
Description |
Specification |
Qty |
|
1. |
Anilox roller |
2PCS |
|
|
2. |
Doctor Blade | 0.15*50*1150 |
1PC |
|
3 |
Rubber Sucker |
10PCS |
|
|
4. |
Floor Pad Plate |
12PCS |
|
|
5. |
Chain Link | 5/8” |
1PC |
|
6. |
Chain Link | 1/2” |
1PC |
|
7. |
Chain Link | 3/4” |
1PC |
|
8. |
Tool Box |
1PC |
|
|
9. |
Inner Hexagon Spanner | 1.5,2,2.5,3,4,5,6,8,10 |
1 SET |
|
10. |
Spanner | 12” |
1 PC |
|
11. |
Spanner | 17” |
1PC |
|
12. |
Spanner | 18 |
1PC |
|
13. |
Screw Driver |
1PC |
|
|
14. |
Screw Driver |
1PC |
|
|
15. |
Fixing Spanner | 5.5-24 |
1SET |
|
16. |
Wooden Piece |
4PCS |
|
|
17. |
Grease Port (Straight) | M6x1 |
5PCS |
|
18. |
Grease Pipe Jointer (Straight) | M6x1xΦ6 |
5PCS |
|
19. |
Grease Pipe Jointer ( curve) | M6x1xΦ6 |
5PCS |
|
20. |
Screw | M10x80 |
10PCS |
|
21. |
Rings | M24 |
4PCS |
|
22. |
Rings | M16 |
8PCS |
|
23. |
Ribbon | 5*200 |
10PCS |
|
24. |
Operation Manual |
1SET |
|
|
25. |
User Manual to Inverter |
1SET |
|
|
26. |
Pump Instruction Manual |
1SET |
| NO. | Type | Name | Specifications | Brand |
| 1 | Spare parts | castings and forgings | Hongxin | |
| 2 | Copper/aluminum casting | bronze 10-1、5-5-5 | Hongyu/Yecheng | |
| 3 | Rolled steel | Homemade | ||
| 4 | Anilox Roller | China | ||
| 5 | Panel | Dachuan | ||
| 6 | Feeder | Ruida | ||
| 7 | Motors | Motor | 1HP … 5HP | Zik、Huamai |
| 8 | Speed Reducer | Yushen、Huamai | ||
| 9 | UV Dryer | Guangyin | ||
| 10 | Pump | Becker | ||
| 11 | Sucking Pump | Sanhe (Taiwan) | ||
| 12 | Electronics | PLC | H3U-3232MR-XA | Inovance |
| 13 | Invertor | 1HP … 7.5HP | Schneider | |
| 14 | Contactor | LC1D0910N | Schneider | |
| 15 | Relay | LR2D1307…1.7 | Schneider/Omron | |
| 16 | Plug | 6 core | China | |
| 17 | Speed Meter | BP-670 | China | |
| 18 | Ammeter | BE-72 100/5A | China | |
| 19 | Voltmeter | SR-72 500V | China | |
| 20 | Switch | TM-1703… | Tangent | |
| 21 | Sensor | PM-12-04NPN | Qihan | |
| 22 | Button | Moeller | ||
| 23 | Relay | MY2J MY4J | Schneider | |
| 24 | Potentiometer | B202 | China | |
| 25 | Switch | China | ||
| 26 | Bearings | Bearings | 6002 … | NSK |
| 27 | Bearings | RNA6903 … | NSK | |
| 28 | Bearings | 51106 … | NSK | |
| 29 | Bearings | UCF206 … | NSK | |
| 30 | Bearings | CSK25--PP(255215) | TSUBAKI (Japan) | |
| 31 | Bearings | CSK30--PP(306216) | TSUBAKI (Japan) | |
| 32 | Bearings | NSK | ||
| 33 | Oil Sealing | Oil Sealing | NAK (Japan) | |
| 34 | Belts | Triangle Belt | A49 … | Samsung (Japan) |
| 35 | Nylon Belt | Aimute (Taiwan) | ||
| 36 | Chains | Chain | 1/2” … | IWIS (Ziqiang) |
| 37 | Link chain | 1/2” … | IWIS (Ziqiang) | |
| 38 | Pneumatic | Air cylinder | SC 80x25 … | Airtec |
| 39 | Electromagnetism | 4V210-10 … | Airtec | |
| 40 | Gas-type | 1/2” xφ12 … | Airtec | |
| 41 | T Jointer | UFR/L-03D | Airtec |
