China wholesale A4 Copy Paper Production Line - CUT SIZE PRODUCTION LINE (CHM A4-4 CUT SIZE SHEETER) – Eureka Detail:

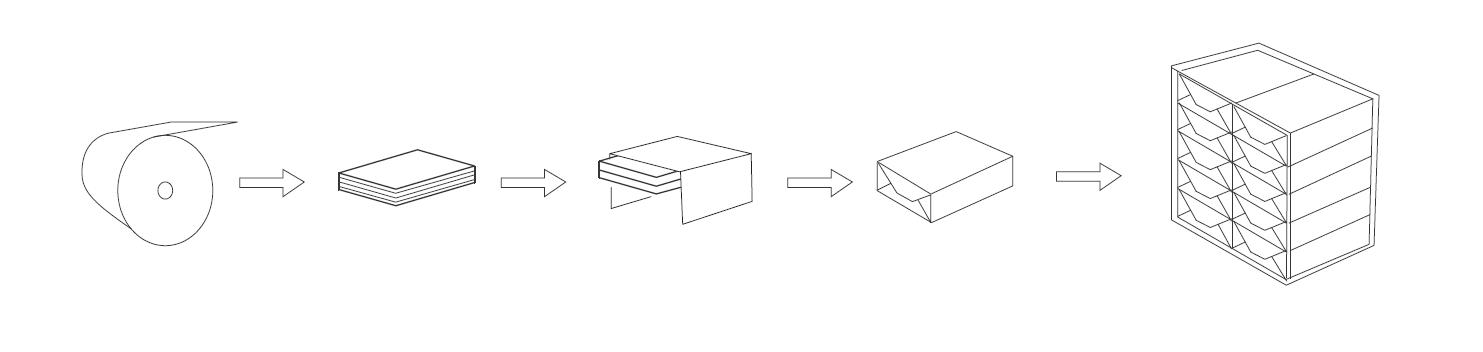

EUREKA A4 automatic production line is composed of A4 copy paper sheeter , paper ream packing machine , and box packing machine. Which adopt the most advanced twin rotary knife synchronized sheeting to have a precise and high productivity cutting and automatic packing.
This serie includes High productivity line A4-4 (4 pockets) cut size sheeter, A4-5 (5 pockets) cut size sheeter.
And compact A4 production line A4-2(2 pockets) cut size sheeter.
EUREKA, which produces over 300 machines annually, has been started the paper converting equipment business for over 25 years, couple our capacity with our experience in oversea market, reflecting that EUREKA A4 cut size series are the best in market. You have our technical support and one year warranty for each machine.

CHM A4 Series

Model A4-2

Model A4-4

Model A4-5

cas1

Model

A4-2

A4-4

A4-5

Paper width

Gross width 850mm, net width 845mm

Gross width 850mm, net width 845mm

Gross width 1060mm, net width 1055mm

Cutting numbers

2 cutting – A4 210mm (width)

4 cutting – A4 210mm (width)

5 cutting – A4 210mm (width)

Paper Roll Diameter

Max.Ø1500mm. Min.Ø600mm

Max.Ø1200mm. Min.Ø600mm

Max.Ø1200mm. Min.Ø600mm



Output of the ream



12 reams/min

27 reams/min (4 reels feeding)

33 reams/min (5 reels feeding)



42 reams/min



Paper Core Diameter

3” (76.2mm) or 6” (152.4mm) or according to the clients’ demand

3” (76.2mm) or 6” (152.4mm) or according to the clients’ demand

3” (76.2mm) or 6” (152.4mm) or according to the clients’ demand


Paper Grade

High-grade copy paper; High-grade office paper; High grade free wood paper etc.

High-grade copy paper; High-grade office paper; High grade free wood paper etc.

High-grade copy paper; High-grade office paper; High grade free wood paper etc.

Paper Weight Range



60-100g/m2



60-100g/m2



60-100g/m2



Sheet Length

297mm (specially design for A4 paper, the cutting length is 297mm)

297mm (specially design for A4 paper, the cutting length is 297mm)

297mm (specially design for A4 paper, the cutting length is 297mm)

Ream Amount

500 sheets Max. Height: 65mm

500 sheets Max. Height: 65mm

500 sheets Max. Height: 65mm



Production Speed

Max 0-300m/min (depends on different paper quality)

Max 0-250m/min (depends on different paper quality)

Max 0-280m/min (depends on different paper quality)

Max Numbers of Cutting



1010 cuts/min



850 cuts/min



840 cuts/min

Estimated Output

8-10 tons (based on the production time of 8-10 hours)

18-22 tons (based on the production time of 8-10 hours)

24-30 tons (based on the production time of 8-10 hours)

Load of cutting

200g/m2 (2*100g/m2)

500g/m2 (4 or 5 rolls)

500g/m2 (4*100g/m2)

Cutting Accuracy

±0.2mm

±0.2mm

±0.2mm

Cutting Condition

No variation of the speed, no break, cut all the paper at one time and need the eligible paper

No variation of the speed, no break, cut all the paper at one time and need the eligible paper

No variation of the speed, no break, cut all the paper at one time and need the eligible paper

Main Power Supply



3-380V/50HZ



3-380V/50HZ



3-380V/50HZ

Voltage

220V AC/ 24V DC

220V AC/ 24V DC

220V AC/ 24V DC

Power

23kw

32kw

32kw

Air Consumption



300NL/min



300NL/min



300NL/min

Air Pressure

6 Bar

6 Bar

6 Bar

Edge Cutting

2*10mm

2*10mm

2*10mm

cas2

Product detail pictures:

China wholesale A4 Copy Paper Production Line - CUT SIZE PRODUCTION LINE (CHM A4-4 CUT SIZE SHEETER) – Eureka detail pictures

China wholesale A4 Copy Paper Production Line - CUT SIZE PRODUCTION LINE (CHM A4-4 CUT SIZE SHEETER) – Eureka detail pictures
