China Supplier Paper Bag Machine With Printing - ZB1200CS-430 Automatic Sheet Feeding Paper Bag Making Machine – Eureka Detail:

Art paper, white board and ivory board need lamination. Over 170gsm need die-cutting in advance. 140/150gsm craft paper and 150/157gsm art paper no need die-cutting.
ZB1200CS-430 Automatic Sheet Feeding Paper Bag Making Machine 2

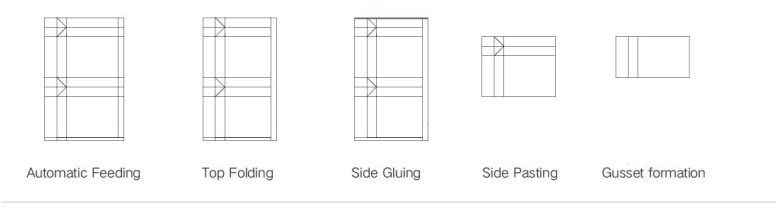

ZB1200CS-430 Automatic Sheet Feeding Paper Bag Making Machine 4 ZB1200CS-430 Automatic Sheet Feeding Paper Bag Making Machine 5

Input Max.Sheet Size

1200x600mm
Input Min. Sheet Size

540x320mm
Sheet Weight

140-300gsm
Bag Width

180-430mm
Bottom Width

80-175mm
Bag Length

220-500mm
Top Folding Depth

30-70mm
Speed

50-80pcs/min
Working Power

11KW
Machine Weight

12T
Machine Size

17500x2400x1800mm
Glue Type

Water soluble cold glue(hot-melt glue)

asdadada

 Suitable Paper1

Feeder

Enhanced pre-stack paper feeder to realize non stop paper feeding, greatly save the time to load and adjust raw paper.

Electric Cabinet

Equipped with TAIWAN Tele-crane remote control system.

Touch screen
 Suitable Paper2

Sheet Side Align Unit

Ultrasound detection to avoid multi-sheet feeding.

Side align block to correct the sheet feeding

direction.
 Suitable Paper3

Auto Creasing Unit

Sheet paper thickness less than 190gsm

The creasing job is done by this unit.
 Suitable Paper4

Top Folding Unit

Top folding line creasing (less than 190gsm)

Top folding forming knife
 Suitable Paper5

Side Pasting Unit

Insert pasting

Servo control, high precision
 Suitable Paper6

Gusset Formation Unit

Adopts manganese steel strip for gusset forming

Mould forming
 Suitable Paper7

Turn around and Flip over Unit

Adopts belt transfer
 Suitable Paper8

Bottom Unit

Bottom folding

Bottom gluing

Bottom output with Delta grating system
 Suitable Paper9

Hot-melt Gluing System

American Nordson brand for tube gluing section,

spray gun
 Suitable Paper10

Bag Compaction Table

layers compaction bag device, fast adhesion,

compaction, overlapping output, convenient

collection, improve work efficiency
 ZB1200CS-430 Automatic Sheet Feeding Paper Bag Making Machine 3

Finished Bag Display

Top Folding

Square Bottom

Insert Pasting

140-300gsm

Main Part and Origin

No. Item Origin Brand No. Item Origin Brand
1 Feeder China RUN 8 Main Bearings Germany BEM
2 Motor China Fangda 9 Convey Belt Japan NITTA
3 PLC Japan Mitsubishi 10 Touch Screen Taiwan China WEINVIEW
4 Frequency Converter France Schneider 11 Vaccum Pump Germany BECKER
5 Button Germany Eaton Moller 12 Pneumatic Elements Taiwan China AIRTAC
6 Electric Relay Germany Weidmuller 13 Photoelectric Sensor Korea/Germany Autonics/SICK
7 Air Switch Germany Eaton Moller 14 Hote melt glue system Amercia Nordson

Our company reserves the right to change technical characteristics without further notice.

1. Automatic feeder unit

2. Automatic top folding unit

3. Automatic side pasting unit

4. Automatic gusset forming unit

5. Automatic bottom folding unit

6. Automatic bottom gluing unit

7. Automatic bottom pasting unit

8. Screw rod adjusting bottom clip system（can save adjustment time）unit

Product detail pictures:

China Supplier Paper Bag Machine With Printing - ZB1200CS-430 Automatic Sheet Feeding Paper Bag Making Machine – Eureka detail pictures

China Supplier Paper Bag Machine With Printing - ZB1200CS-430 Automatic Sheet Feeding Paper Bag Making Machine – Eureka detail pictures
