Banding Machine List
WK02-20
Technical Parameters
|
Control system |
PCB with keyboard |
|
Tape size |
W19.4mm*L150-180M |
|
Tape thickness |
100-120mic(paper and film) |
|
Core diameter |
40mm |
|
Power Supply |
220V/110V 50HZ/60HZ 1PH |
|
Arch size |
470*200mm |
|
Banding size |
Max W460*H200mm MinL30*W10mm |
|
Applicable tape |
paper,kraft &OPP film |
|
Tension |
5-30N 0.5-3kg |
|
Banding speed |
26pcs/min |
|
Pause function |
NO |
|
Counter |
NO |
|
welding method |
Heating sealing |
|
Machine weight |
N.W:32KG/G.W:45KG |
|
Machine dimension |
L611*W364*H474MM |
|
package size |
L71*W45*H62CM |

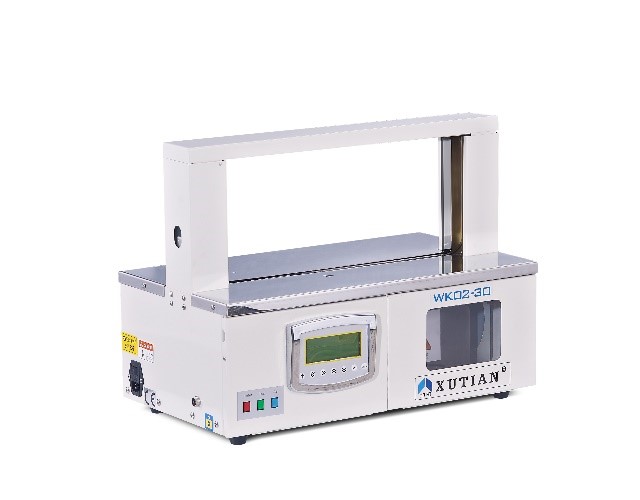

WK02-30
Technical Parameters
|
Control system |
PCB with keyboard |
|
Tape size |
W29.4mm*L150-180M |
|
Tape thickness |
100-120mic(Paper and film) |
|
Core diameter |
40mm |
|
Power Supply |
220V/110V 50HZ/60HZ 1PH |
|
Arch size |
470*200mm |
|
Banding size |
Max W460*H200mm MinL30*W10mm |
|
Applicable tape |
paper,kraft &OPP film |
|
Tension |
5-30N 0.5-3kg |
|
Banding speed |
26pcs/min |
|
Pause function |
NO |
|
Counter |
NO |
|
welding method |
Heating sealing |
|
Machine weight |
N.W:32KG/G.W:45KG |
|
Machine dimension |
L611*W364*H474MM |
|
package size |
L71*W45*H62CM |
WK-DZ table
Technical Parameters
|
Control system |
PLC |
|
Tape size |
W29.4mm*L500-800M |
|
Tape thickness |
60-120mic(paper and film) |
|
Core diameter |
40mm or 76mm(optional) |
|
Power Supply |
220V/110V 50HZ/60HZ 1PH |
|
Machine weight |
N.W:42KG/G.W:60KG |
|
Machine dimension |
L614*W430*H755MM |
|
Package size |
L68*W49*H91CM |
|

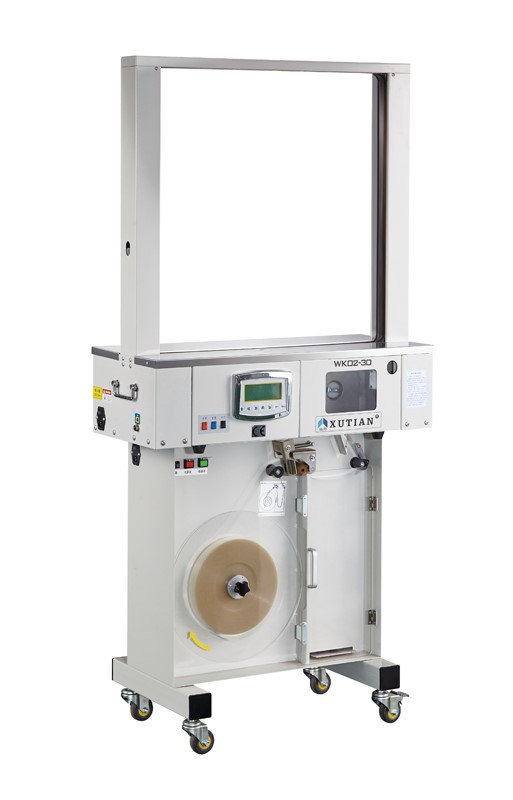

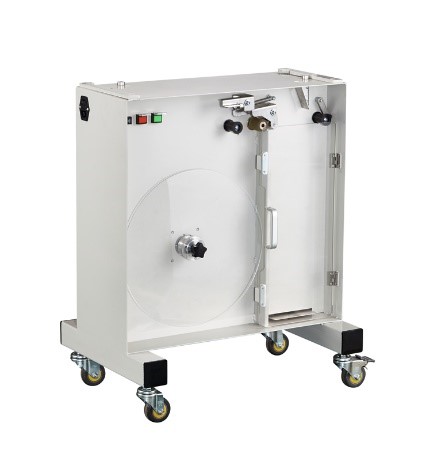

All of the machine can use together with the dispenser |
|
WK02-30-4032
Technical Parameters
|
Control system |
PCB with keyboard |
|
Tape size |
W29.4mm*L150-180M |
|
Tape thickness |
100-120mic(paper and film) |
|
Core diameter |
40mm |
|
Power Supply |
220V/110V 50HZ/60HZ 1PH |
|
Arch size |
470*320mm |
|
Banding size |
Max W460*H320mm MinL30*W10mm |
|
Applicable tape |
paper,kraft &OPP film |
|
Tension |
5-30N 0.5-3kg |
|
Banding speed |
20pcs/min |
|
Pause function |
NO |
|
Counter |
NO |
|
welding method |
Heating sealing |
|
Machine weight |
N.W:38KG/G.W:50KG |
WK02-30B-60
Technical Parameters
|
Control system |
PCB with keyboard |
|
Tape size |
W29.4mm*L150-180M |
|
Tape thickness |
100-120mic(Paper and film) |
|
Core diameter |
76mm(optional) |
|
Power Supply |
220V/110V 50HZ/60HZ 1PH |
|
Arch size |
610*600mm |
|
Banding size |
Max W600*H600mm MinL30*W10mm |
|
Applicable tape |
paper,kraft &OPP film |
|
Tension |
5-30N 0.5-3kg |
|
Banding speed |
15pcs/min |
|
Pause function |
NO |
|
Counter |
NO |
|
welding method |
Heating sealing |
|
Machine weight |
N.W:80KG |
