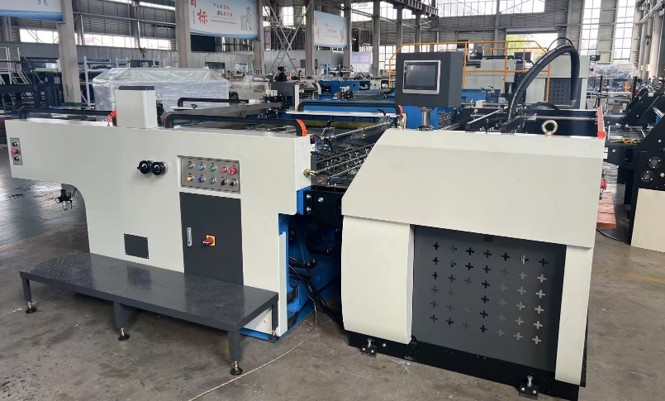

Automatic Swing Cylinder Screen Printing Machine GSP1020

GSP Series Automatic Swing Cylinder Screen Printing Machine are widely used in printing various semi rigid and flexible materials, such as ceramic decal, cardboard, soft PCB, transfer paper and film switch etc. Because the machine is suitable for many kinds of printings and controlled by easily operation, it wins much honor in the market.

Features:

• ✦ The machine is equipped with Japanese Inovance requency Invertorand PLC, which can control the whole running. More than 90％ imported electric components make the machine own many priorpoints: high class,high integration and high stability etc.
• ✦ Best monitor system during the whole course of operating ensure the machine’s good registered precision: ≦0.15mm.
• ✦ Full and fresh ink layer is up to 30-40mm, which presents high 3D feeling and hard-coating.
• ✦ The machine has two feed modes: universal mode and stream mode; the two mode can be switched freely depending upon different printing size.
• ✦ Delivery board can be turned down by 90°.
• ✦ The screen frame can be load or unload easily; and the position can be fine adjusted.
• ✦ The series can be combined with the dryer to make up one automatic producing-line. The connect with UV Dryer(refer to our product: GUV Series)to print by UV ink.

Technical Parameters

2. UV Dryer

ESUV/IR series UV Dryer

The dryer is widely used for drying UV ink printed on paper, PCB. PEC and nameplate of instrument printing etc.

Features:

• ✔ It uses special wave length to solidify the UV ink. Through this reacting, it can give the printing surface high hardness, brightness, anti-attrition and anti-solvent.
• ✔ The convey or belt is made of TEFLON imported from American; it can endure high temperature, attrition and radiation.
• ✔ The stepless speed-adjusting device makes driving more steadily. It can be available to many printing modes whatever handwork, semi-automatic and, high-speed automatic printing.
• ✔ Through two sets of air-blower system, the paper can adhere to the belt firmly.
• ✔ The machine can work in many modes: single-lamp, multi-lamps or half-power solidifying etc, which can save electric power and extend the lamp’s life.
• ✔ The machine has stretching device and automatic rectifying device.
• ✔ They can be adjusted easily.
• ✔ There are 4 foot-wheels fixed under the machine which can move the machine easily.

Technical Parameters

GLT-1060 Cold foil stamping machine

The equipment is connected with semi-automatic screen printing machine/full-automatic screen printing machine to complete the cold stamping process.

Features:

The machine can be connected with semi-automatic and full-automatic screen printing machine, with snowflake wrinkle detonator, UV curing machine, automatic paper delivery machine to become a collection of wrinkle ink technology, Snowflake Ink Technology, UV glazing, cold ironing and other multi-purpose production line.

Main advantages of the equipment:

1. Paper Bridge: negative pressure transfer platform, adjustable height up and down, a variety of height can match the front-end equipment.
2. The former device: through the photoelectric and touch screen settings, the tilt of the material can be corrected to flat into the hot stamping mechanism.
3. High-temperature silicon roller: the oil temperature heating method, low uniform deformation of roller temperature, longer service life.
4. Pre-heating rotating mechanism: pre-heating bronzing roller automatic rotation so that the drum temperature in the heating phase more uniform and fast.
5. Intelligent man-machine interactive interface: it adopts industrial control touch screen, the operation and setting are simple and clear.
6. Remote upgrade and trouble shooting: Siemens PLC is used for centralized control, with faster and more stable response. With Network C debugging module, can judge the problem and modify the program remotely.
7. Pressure booster system: equipment pressure booster cylinder, pressure more stable.
8. Gold Jump Settings: through photoelectric and PLC system settings, paper and paper to complete the jump between the jump and the paper within the jump of the gold position.
9. Solid material: high-rigid Precision Panel: using 25mm steel plate processing, equipment running more stable.
10. Stamping paper with: equipment compatible with 1-inch core, 3-inch core stamping film (available special cold stamping paper and some hot stamping paper) .
11. The use of safety Chuck: Bronzing paper simple installation, air shaft running safety.
12. luxurious configuration: the whole machine pneumatic components, are used in Taiwan Yadek, encoder using German Sike, heat-resistant bearings are.

Technical parameters of equipment:

Sheet stacker

GSZ sheet stacker is one of accessorial equipment to automatic cylinder screen printing machine, It is used to collect and pile paper which can improve you product efficiency.

Features

• This machine is made up of input-bracket mechanism, pushing-paper mechanism, piling-board up-down mechanism and electric control system.
• Input-bracket mechanism contains conveyor belts and blowing device. The conveyor belts are drove by motor, which speed is adjusted by transducer.
• The blowing device is used to blow-up the paper to move a distance after leave from the belt. The paper will continue to go ahead by the air flow. Then the blowing is shut off, the paper drop down to the piling-board.
• The pushing mechanism is drove by pneumatic cylinder. The position of the cylinder is adjusted easily, so as to suit for different size papers.
• Piling-board up-down mechanism is drove by four synchronous chains from electromagnetic motor. The board can be stopped accurately with a certain level.
• Electric control system is controlled by PLC. The system is convenient and safety.

Technical Parameters
